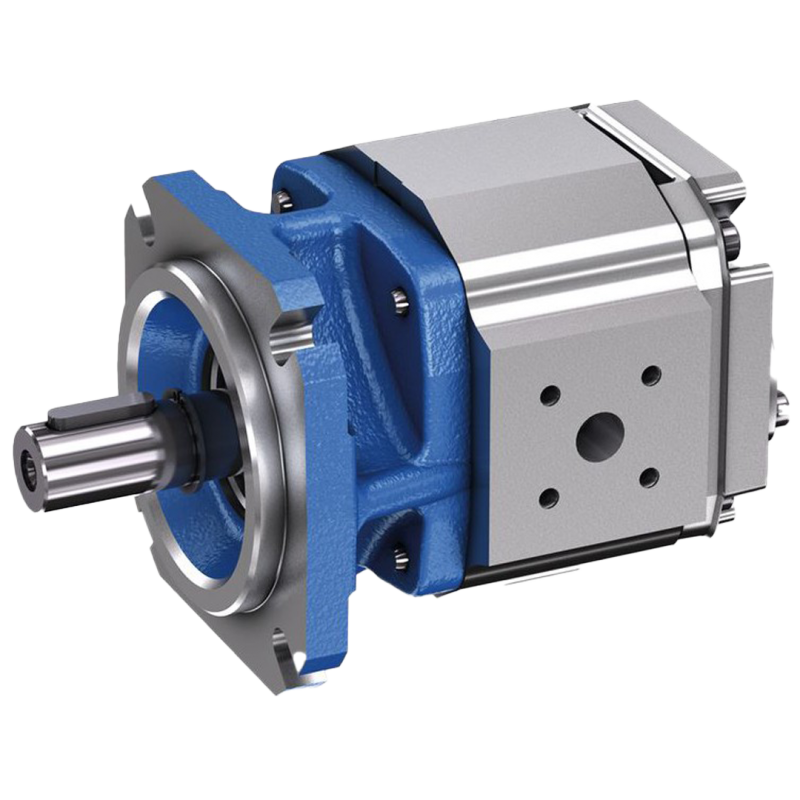

Bosch Rexroth Internal Gear Pump PGP-2X

PGP Series 2X & 3x Size 6.3 to 32

Internal gear pump PGP Series 2X and 3X

  •  Fixed displacement
  •  Frame sizes 2 and 3
  •  Sizes 6.3 to 32
  •  Maximum pressure 350 bar
  •  Displacement 6.5 to 32.5 cm3

Description
Downloads

Bosch Rexroth Hydraulic Internal Gear Pump PGP 2X & 3X 6.3cc to 32cc

  •  Fixed displacement
  •  Frame sizes 2 and 3
  •  Sizes 6.3 to 32
  •  Maximum pressure 350 bar
  •  Displacement 6.5 to 32.5 cm3

Features:

  •  Low flow pulsation
  • Low operating noise
  •  High efficiency even at low viscosity due to sealing gap compensation
  •  Long service life due to slide bearings and sealing gap compensation
  •  Suitable for a wide viscosity and speed range
  •  Excellent suction characteristics
  •  Can be combined with PGH and PGF internal gear pumps, vane pumps and axial piston pumps

Use:

For drives with high operating pressure up to 106 load cycles, for example trimming presses
