TV Double Clamping System
Jergens clamping system mechanical with fully machinable aluminium jaws
TV Double Clamping System Mechanical with Fully Machinable Aluminium Jaws

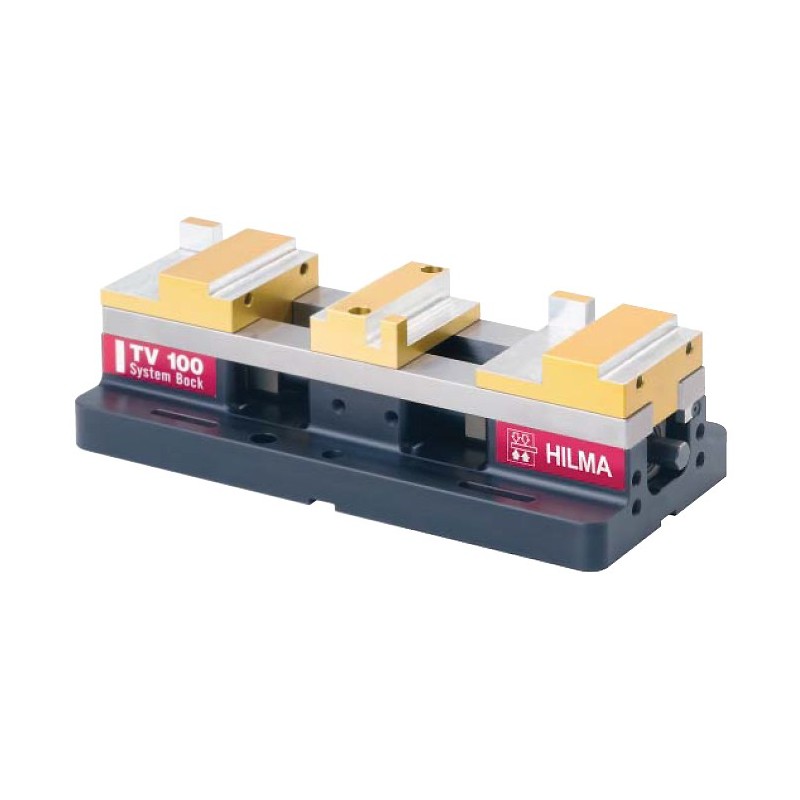

Standard device TV 100 S.G.
Supplied including a set of jaws
- Jaw width: 100 mm
- Weight: 14 kg
- Part number: 9.3452.0101
Standard device TV 150 S.G.
Supplied including a set of jaws
- Jaw width: 150 mm
- Weight: 30 kg
- Part number: 9.3454.0101
The aluminium jaws can be completely milled out to suit the required workpiece contour. This gives the fastest jaw change without a screwed connection! The aluminium base with hardened steel guides results in a low dead weight. The third hand function ensures consecutive safe loading and unloading of workpieces.
- Double clamping systems with aluminium jaws
- Fully machinable jaws
- Ideal for clamping workpieces with complex clamping and contact contours
- Aluminium jaws, suitable for complete milling out, both sides may be used
- The aluminium base with hardened steel guides results in a low dead weight
- Jaw change in a few seconds, downthrust effect in the movables jaws
