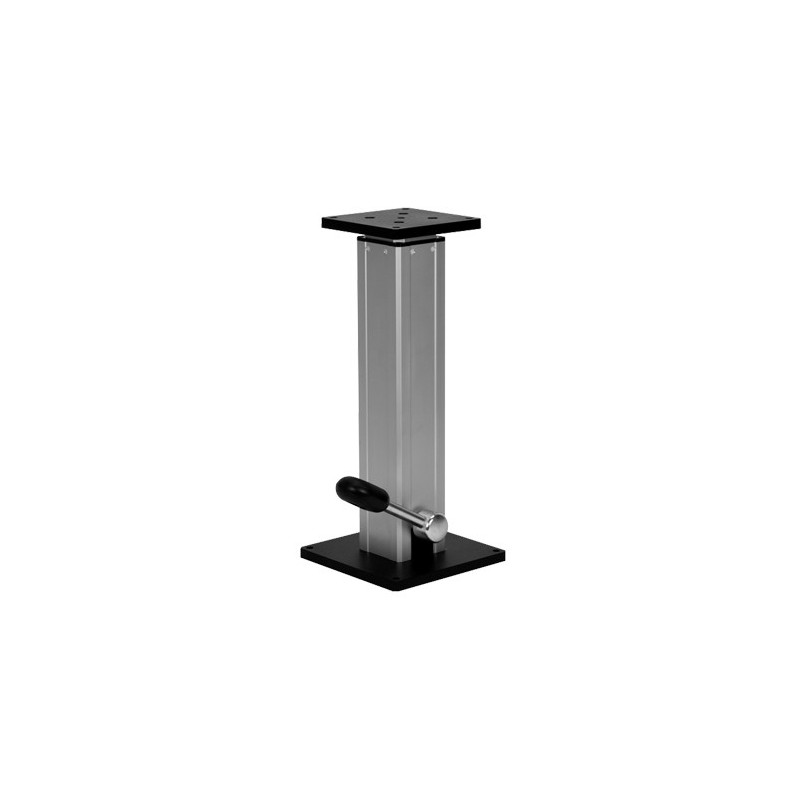

Basic Lifting Module
ROEMHELD M4.101 Lifting Module for ergonomic design of working places
- Max. lifting force 1,000 N
- Stroke from 200 to 600 mm
- Manual-hydraulic version
- Max. lifting force: 1000 N
- Max. torque: 100 Nm
- Stroke: 200 to 600 mm
- Operation: foot pedal
- Pump strokes per 100 mm 8
Basic Lifting Module - ROEMHELD M4.101
- Max. lifting force 1,000 N
- Stroke from 200 to 600 mm
- Manual-hydraulic version
- Max. lifting force: 1000 N
- Max. torque: 100 Nm
- Stroke: 200 to 600 mm
- Operation: foot pedal
Advantages:
- Elegant and slim design
- Optimised ergonomics
- Simple operation
- No coupling stroke required
- Working in ergonomically optimum height
Application:
Lifting module for ergonomic design of working places.
Principal use:
- Industrial assembly working places
- Height adjustment of assembly working places in workshops
- Maintenance works
- Assembly fixtures
- Adjusting systems in supply processes of mid-sized objects
- Handling systems for product packing and transfer
Description:
The stroke movement is obtained by a hydraulic linear unit with single-lever actuation with oil being pumped by means of a piston pump into a plunger cylinder. For lowering the oil returns by the weight of the load from the cylinder back to the reservoir. The lifting units are ideal for height adjustment of tables, demonstration objects and similar equipments as well as for medical treatment equipments.
