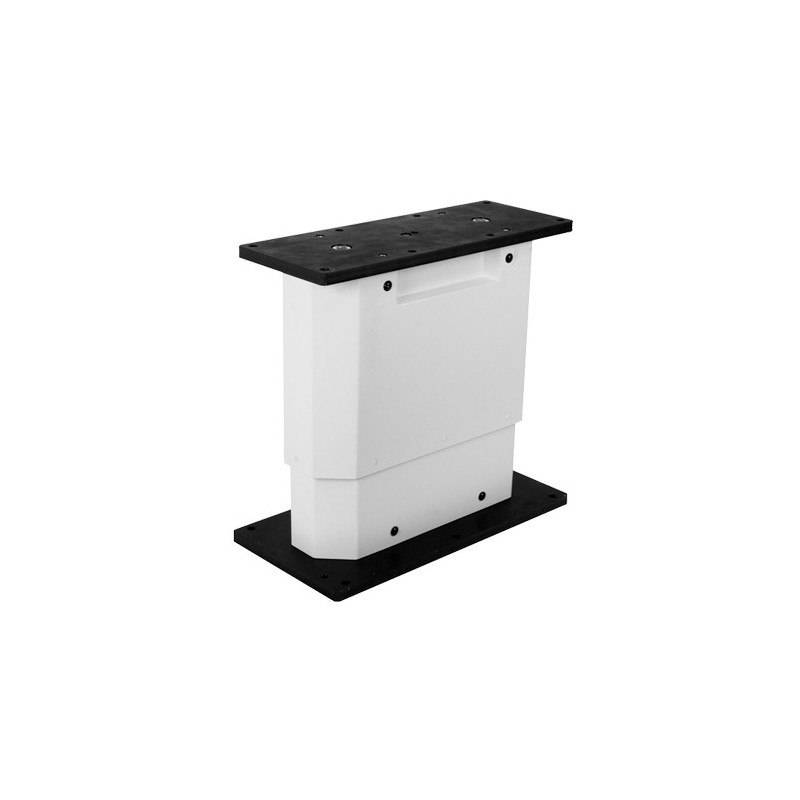

Lifting Module Twin-strong
ROEMHELD M4.501 Lifting Module Twin-strong - manual-hydraulic and electro-hydraulic version
- Max. lifting force 6,000 N
- Stroke from 200 to 400 mm
- Max. bending moment: 2000 Nm
- Pump strokes per 100 mm: 10
- Lifting speed 4 - 6 mm/s
- Control voltage: 24 VDC
- Supply voltage: 230 VAC
Lifting Module Twin-strong - ROEMHELD M4.501
- Max. lifting force 6,000 N
- Stroke from 200 to 400 mm
- Max. bending moment: 2000 Nm
- Pump strokes per 100 mm: 10
- Lifting speed 4 - 6 mm/s
- Control voltage: 24 VDC
- Supply voltage: 230 VAC
Advantages:
- Lifting force up to 6,000 N
- Extreme load due to double steel guides
- Very high section modulus
- Rigid guiding system without clearance
- Sturdy and tough
- Compact design
- Modular standard design, easy to combine
- Ergonomic design
- Safe and precise handling
Application:
Lifting module for extreme loads.
Principal use:
- Industrial production with difficult application conditions
- Automotive industry
- Assembly of car seats
- Drive technology, axes, cardan shafts
- Compressors, hydraulic elements, pumps
- Turbines, motors, gearbox construction
- Applications with frequent load changes and high torque loads
Description:
The lifting module Twin-Strong has two hightensile cylinder tube profiles with chromiumplated surfaces. The design with solid profiles allows a stable guiding system with perfect smooth running. The high precision of the tube profiles permits a guiding system without clearance and perfect smooth running. The guiding system works without fat and oil lubrication. High-quality materials for plain bearings are used. Characteristic are applications with indifferent, dynamically swelling rotating motions and shock motions.
