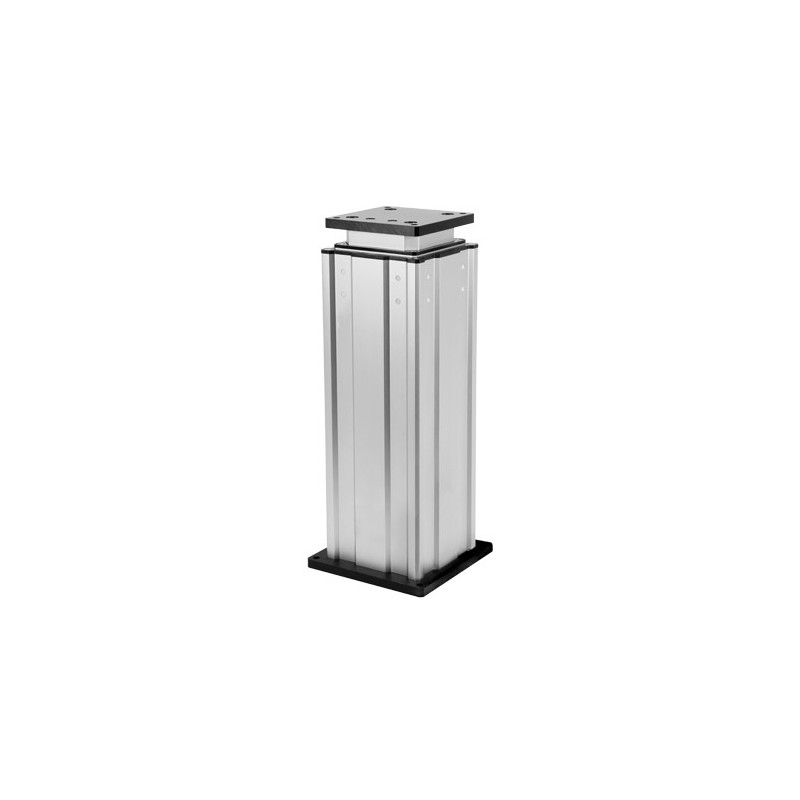

Lifting Module Shop Floor Telescope

Lifting Module Shop Floor Telescope - ROEMHELD M4.202

• Manual-hydraulic and electro-mechanical version
• Max. lifting force: 1000 / 2000 N
• Max. bending moment: 500 Nm
• Stroke: 300 to 1000 mm
• Operations: foot pedal, foot switch or hand panel
• Pump strokes per 100 mm 2.2 - 3.5
• Lifting speed: 14 - 34 mm/s
• Control voltage: 24 VDC
• Supply voltage: 230 VAC

Advantages:

• Low basic height
• Large strokes
• Simple and intuitive operation
• Working in ergonomically optimum height
• Sturdy industrial design
• Increase of quality in manufacturing and assembly processes
• Short amortisation time
• Increase of assembly throughput and productivity
• High level of safety against static overloads
• Checked in compliance with DIN EN 1570 with quadruple static overload

Application:

Lifting module for workshop applications in the industry.

Principal use:

• Industrial assembly working places
• Height adjustment of assembly working places in workshops
• Service
• Assembly fixtures
• Adjusting systems in supply processes of mid-sized objects
• Handling systems for product packing and transfer

Description:

The lifting module Shop-Floor Telescope is particularly suitable for lifting and lowering assembly fixtures, working tables and demonstration objects in industrial applications as well as for medical treatment equipments in medical applications. In general, lifting modules are used as base unit of devices for controlled lifting and lowering of loads or for height adjustment only. This version excels particularly by the low base height and the very high strokes.
