EVO Series Synchronous Lifting Systems

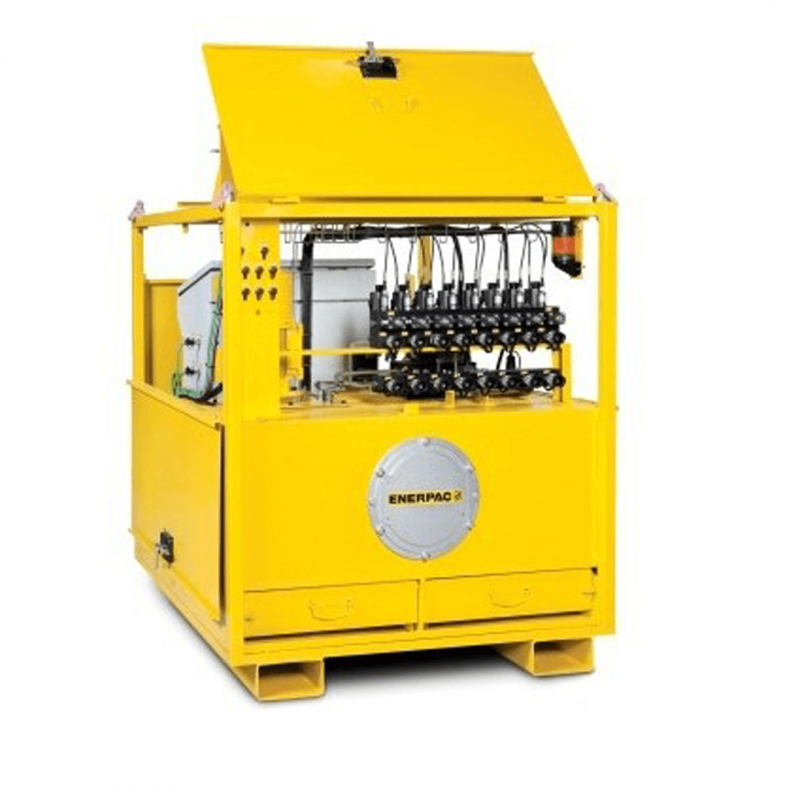

Enerpac EVO Series Synchronous Lifting Systems

• Number of lifting points: 4 - 8 -12 (up to 48 with a Master Control Box*)
• Reservoir Capacity: 250 litres
• Flow at Rated Pressure: 0,75 - 4,80 l/min
• Motor Size: 3,50 - 7,50 kW
• Maximum Operating Pressure: 700 bar

*Required to link up to 4 standard EVO-pumps together to achieve a maximum of 48 lifting points. Contact Hyquip for more information.

What is Synchronous Lifting?

To achieve high-precision movement of heavy objects it is necessary to control and synchronize the movements of multiple lifting points.

The PLC-control uses feedback from multiple sensors to control the lifting, lowering and positioning of any large, heavy or complex structure, regardless of weight distribution.

By varying the oil flow to each cylinder, the system maintains very accurate positional control. By eliminating manual intervention, the sync lift helps maintain structural integrity and increases the productivity and safety of the lift.

PLC-controlled synchronous lifting systems reduce the risk of bending, twisting or tilting, due to uneven weight distribution or load-shifts between the lift points.

Features:

• Can be connected to single- or double-acting cylinders with the same or different lifting capacities
• PLC-controlled system with integrated 700 bar hydraulic power unit and 250 litres reservoir
• Network capability to link up to 4 HPUs to a separate master control box via wireless control
• Intuitive user interface providing easy set up, control and navigation
• Data storage and recording capabilities
• Variable frequency drive motor (VFDM) and PLC for precise synchronization and oil flow control.

The Standard EVO-System has nine work modes. The operator can navigate to any of these menus:

• Manual
• Pre-Load
• Automatic
• Retract Fast
• Depressurize
• Tilting
• Stage Lift
• Weighing*
• Center of Gravity determination*

* Available in the EVO-W models
