Carr Lane Floating Locating Pins

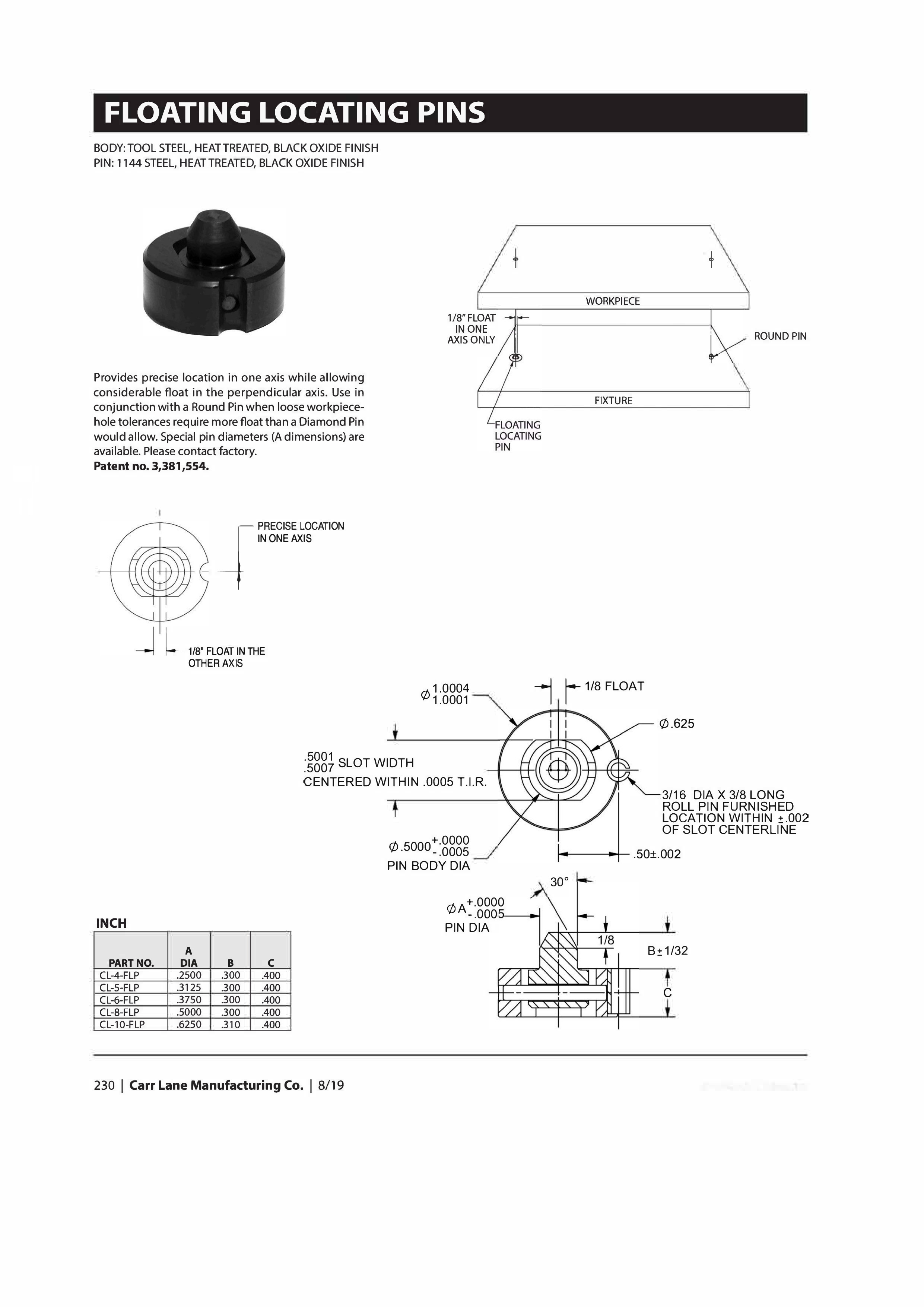

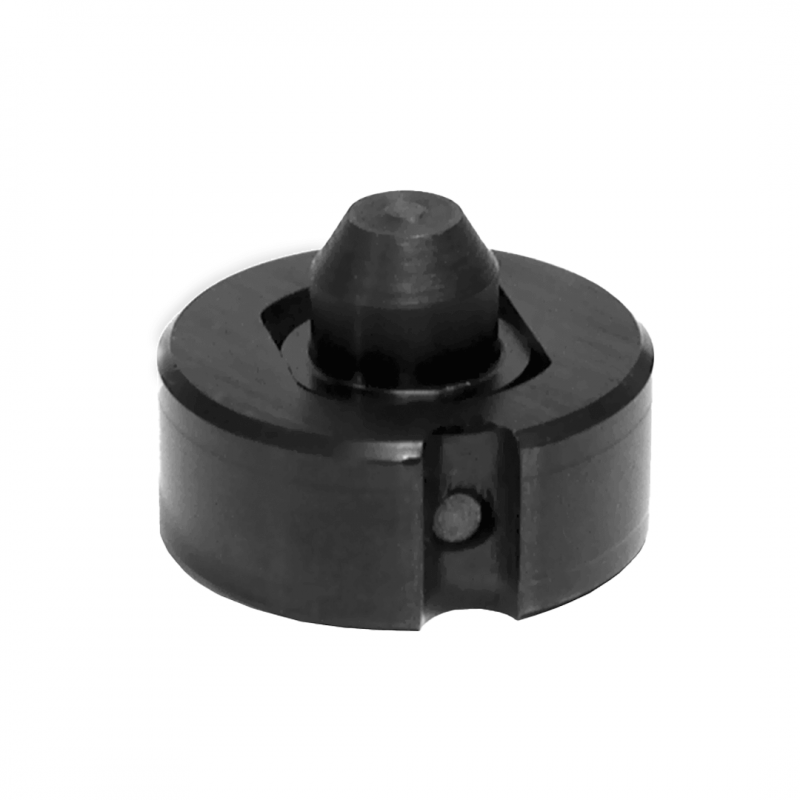

Carr Lane’s floating locating pins provide precise location in one particular axis while allowing considerable float in the correlating perpendicular axis. Typically used along with a Round Pin to locate two machined holes in a workpiece or to align two fixture components without causing binding. Chamfered tip especially manufactured for easy part loading. These pins are function in a manner similar to Diamond Pins, except they allow greater variation in hole spacing. Floating locating pins are available in pin diameters 1/4, 5/16, 3/8, 1/2, and 5/8".
| Part Number | Material Number | External Diameter | Length | Depth | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-4-FLP | .2500 | .300 | .400 | £70.79 £84.95 Inc. VAT |
|
|
| CL-5-FLP | .3125 | .300 | .400 | £70.79 £84.95 Inc. VAT |
|
|
| CL-6-FLP | .3750 | .300 | .400 | £70.79 £84.95 Inc. VAT |
|
|
| CL-8-FLP | .5000 | .300 | .400 | £70.79 £84.95 Inc. VAT |
|
|
| CL-10-FLP | .6250 | .310 | .400 | £87.72 £105.26 Inc. VAT |
|
Carr Lane Floating Locating Pins
Carr Lane’s floating locating pins provide precise location in one particular axis while allowing considerable float in the correlating perpendicular axis. Typically used along with a Round Pin to locate two machined holes in a workpiece or to align two fixture components without causing binding. Chamfered tip especially manufactured for easy part loading. These pins are function in a manner similar to Diamond Pins, except they allow greater variation in hole spacing. Floating locating pins are available in pin diameters 1/4, 5/16, 3/8, 1/2, and 5/8".
Options:
- Length: .300 - .310
- Depth: .400 - .900
- Diameter: .2500 - .6250
| Quantity | Unit discount | You Save |
|---|
