Carr Lane Construction Pads
A precision pad for securing a Construction Ball. These pads must be attached using two socket-head cap screws, and dowels should be added to ensure precise positioning. To secure the Construction Ball, install a setscrew (not included) in the crosshole. Available in a 1-inch size and two metric options, made from steel or stainless steel, designed to fit Construction Balls with various shank diameters. round and rectangular pad designs available.

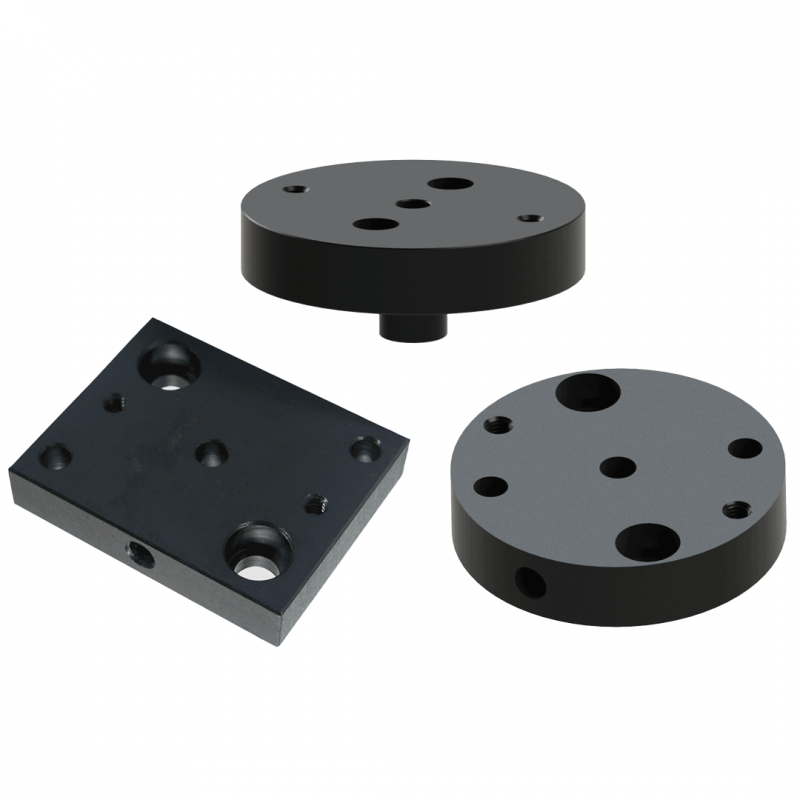

- Round and rectangular designs available
- Available in Metric and Imperial
| Part Number | Material Number | Type | Internal Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|
| CL-3-CBP | Rectangular | .3750 | £50.21 £60.25 Inc. VAT |
|
|
| CL-2-CBP | Rectangular | .3125 | £50.21 £60.25 Inc. VAT |
|
|
| CL-1-CBP | Rectangular | .2500 | £44.96 £53.95 Inc. VAT |
|
|
| CL-1-CBPR | Round | .2500 | £49.69 £59.63 Inc. VAT |
|
|
| CL-1-CBPK | Shank | .2500 | £49.55 £59.46 Inc. VAT |
|
Carr Lane Construction Pads

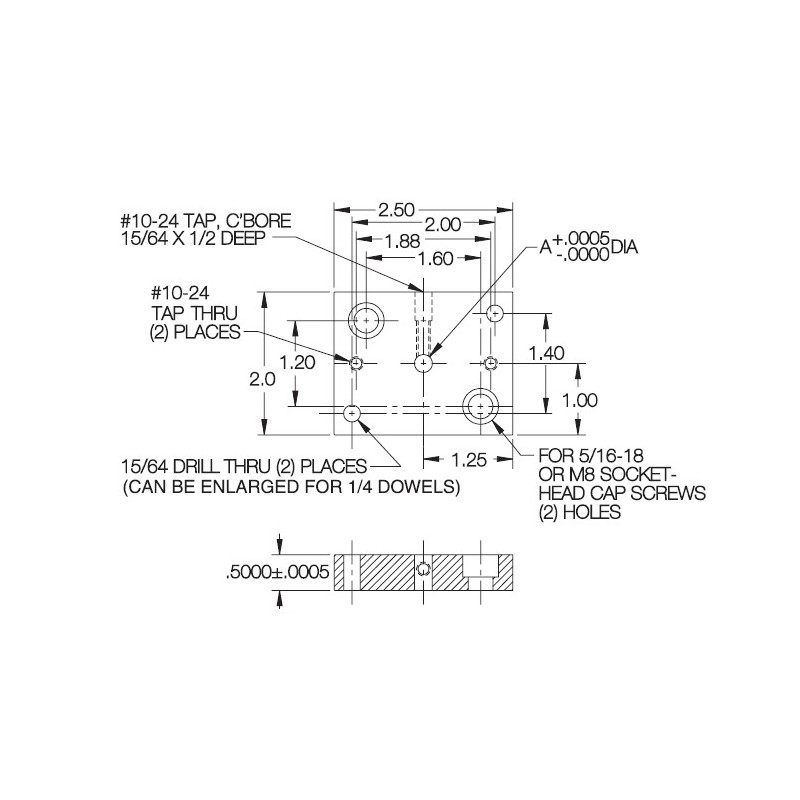

Rectangular Construction Ball Pads should be fastened with two-socket head cap screws, then can be doweled in place to maintain accurate location. The Construction Ball can be installed by installing a #10-24 set screw.

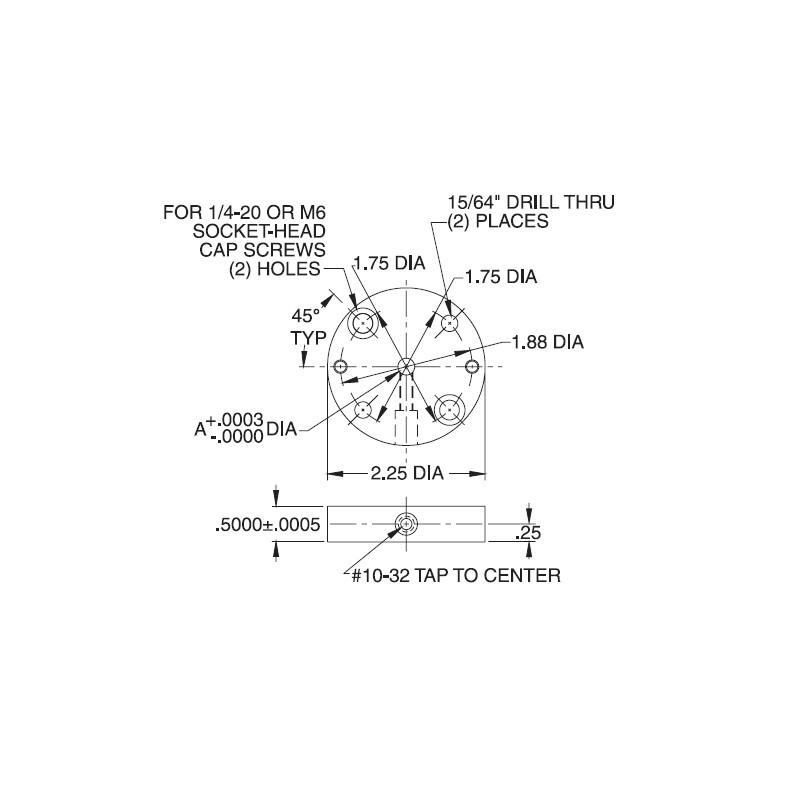

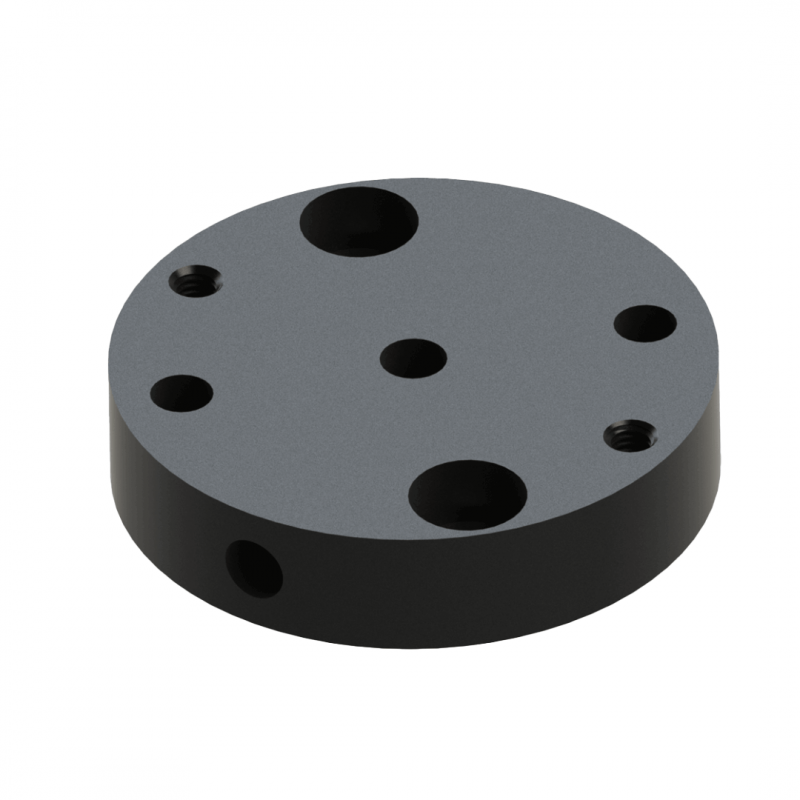

Round Construction Ball Pads should be fastened with two-socket head cap screws, then can be doweled in place to maintain accurate location. The Construction Ball can be installed by installing a #10-32 set screw.

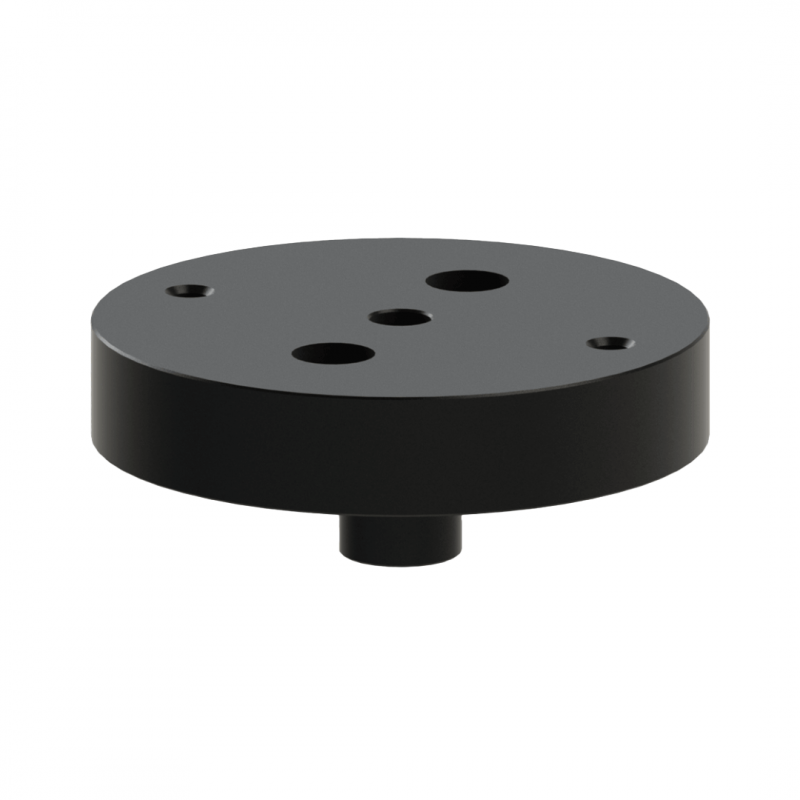

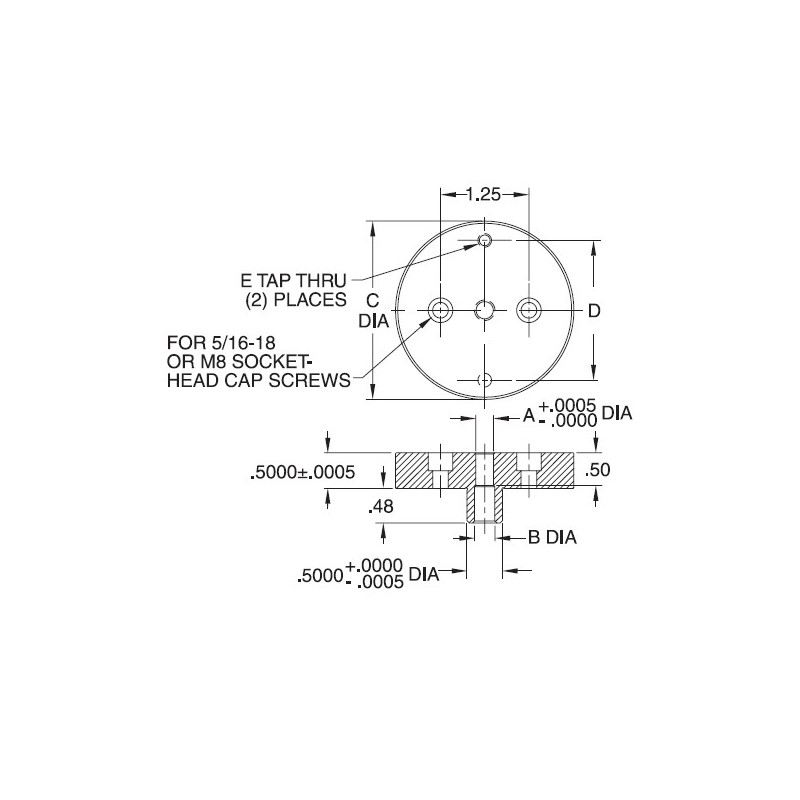

Shank Type Construction Ball Pads should be installed in a reamed hole for accurate location, then fastened with tow socket-head cap screws.
