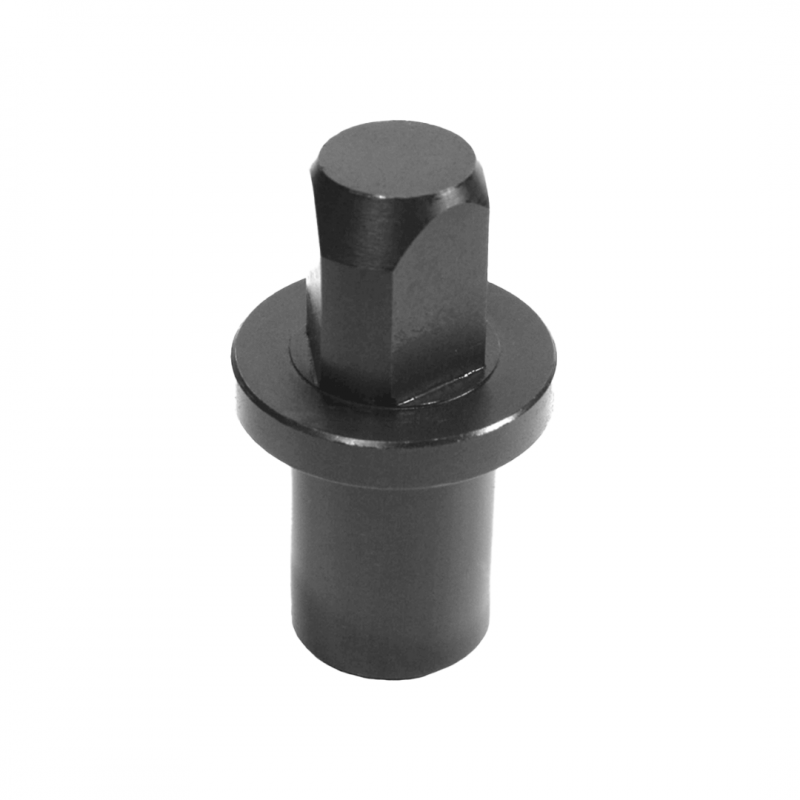

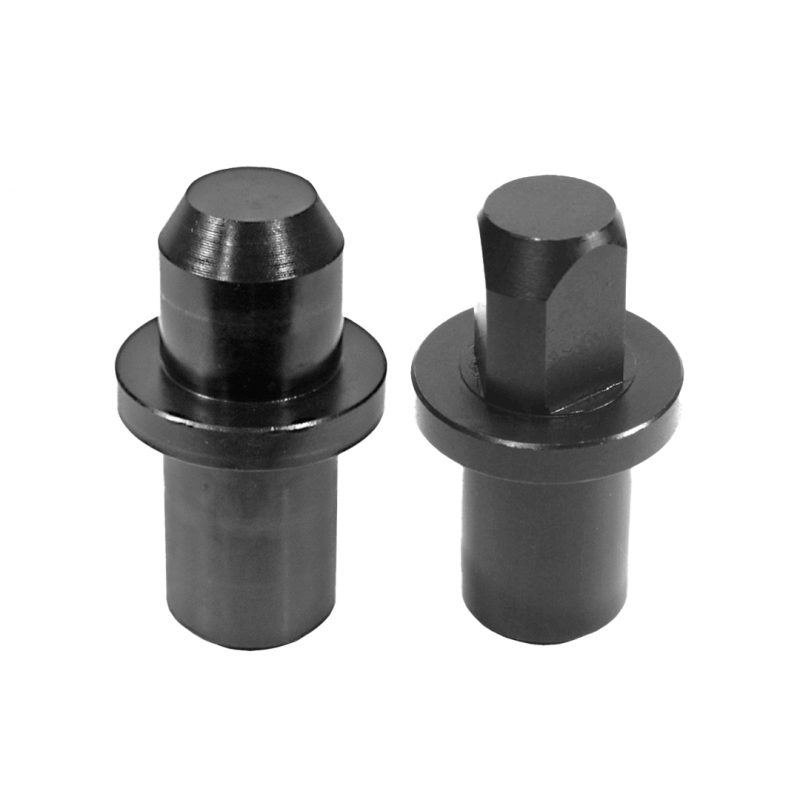

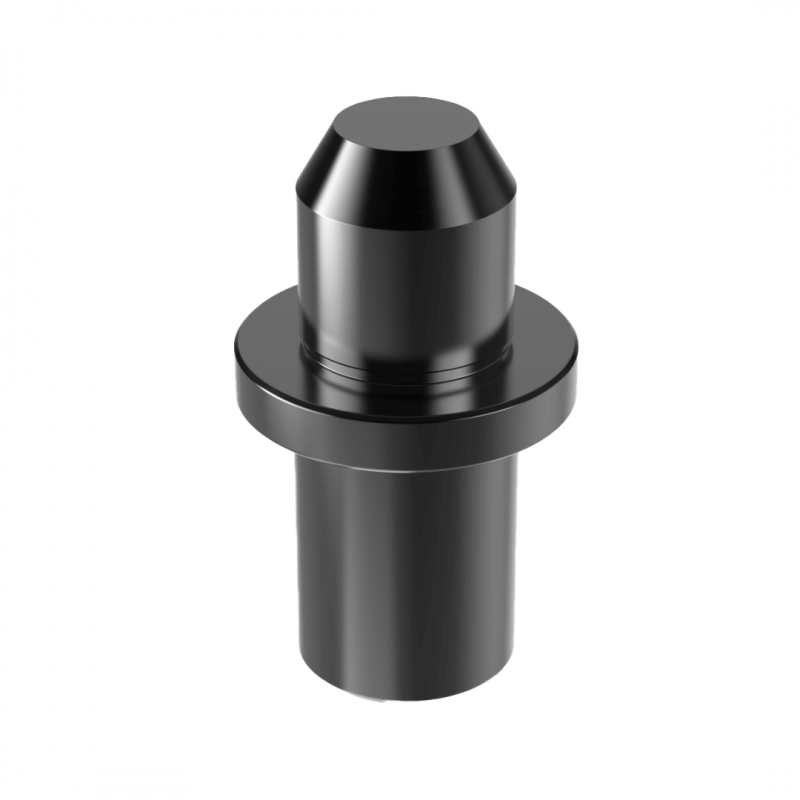

Round and Diamond Locating Pins - Press fit
These precision locating pins are ideal for positioning workpieces due to the broad range of available head diameters, allowing them to fit machined holes in the part. Along with standard diameters, custom head sizes ranging from .1150" to 1.0400" can be quickly produced in .0001" increments to meet specific requirements. Typically, a Round Locating Pin and a Diamond Locating Pin are used together to align from two holes without causing interference, as the Diamond Locating Pin is specially relieved for this purpose. The press-fit shank is designed for permanent installation whereas the lockscrew variant is manufactured with a slip-fit shank for renewable installation.
- Round and Diamond
- Metric and Imperial sizes
- Shank Diameter - 5/16 - 1
Products
Downloads
Description
| Part Number | Material Number | Metric or Imperial | Length | Pin Type | Shank Diameter | Head Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|
| CL-12-DPT-.7067 | Metric | 1-15/16 | Press Fit Diamond Pin | 3/4 | 18mm | £29.24 £35.09 Inc. VAT |
|
|
| CL-12-DPT-.5492 | Metric | 1-15/16 | Press Fit Diamond Pin | 3/4 | 14mm | £29.24 £35.09 Inc. VAT |
|
|
| CL-8-DPT-.3917 | Metric | 1-1/2 | Press Fit Diamond Pin | 1/2 | 10mm | £18.42 £22.10 Inc. VAT |
|
|
| CL-5-DPT-.2347 | Metric | 1-3/16 | Press Fit Diamond Pin | 5/16 | 6mm | £18.42 £22.10 Inc. VAT |
|
|
| CL-12-RPT-.7067 | Metric | 1-15/16 | Press Fit Round Pin | 3/4 | 18mm | £26.68 £32.02 Inc. VAT |
|
|
| CL-12-RPT-.5492 | Metric | 1-15/16 | Press Fit Round Pin | 3/4 | 14mm | £26.68 £32.02 Inc. VAT |
|
|
| CL-8-RPT-.3917 | Metric | 1-1/2 | Press Fit Round Pin | 1/2 | 10mm | £16.76 £20.11 Inc. VAT |
|
|
| CL-5-RPT-.2347 | Metric | 1-3/16 | Press Fit Round Pin | 5/16 | 6mm | £16.67 £20.00 Inc. VAT |
|
|
| CL-8-DPT-.4714 | Metric | 1-1/2 | Press Fit Diamond Pin | 1/2 | 12mm | £18.42 £22.10 Inc. VAT |
|
|
| CL-8-DPT-.3140 | Metric | 1-1/2 | Press Fit Diamond Pin | 1/2 | 8mm | £18.42 £22.10 Inc. VAT |
|
|
| CL-16-DPT-.7864 | Metric | 2-5/8 | Press Fit Diamond Pin | 1 | 20mm | £40.10 £48.12 Inc. VAT |
|
|
| CL-12-DPT-.6289 | Metric | 1-15/16 | Press Fit Diamond Pin | 3/4 | 16mm | £29.24 £35.09 Inc. VAT |
|
|
| CL-16-RPT-.7864 | Metric | 2-5/8 | Press Fit Round Pin | 1 | 20mm | £31.73 £38.08 Inc. VAT |
|
|
| CL-12-RPT-.6289 | Metric | 1-15/16 | Press Fit Round Pin | 3/4 | 16mm | £26.68 £32.02 Inc. VAT |
|
|
| CL-8-RPT-.4714 | Metric | 1-1/2 | Press Fit Round Pin | 1/2 | 12mm | £16.76 £20.11 Inc. VAT |
|
|
| CL-8-RPT-.3140 | Metric | 1-1/2 | Press Fit Round Pin | 1/2 | 8mm | £16.76 £20.11 Inc. VAT |
|
|
| CL-16-DPT-.7854 | Metric | 2-5/8 | Press Fit Diamond Pin | 1 | 20mm | £40.10 £48.12 Inc. VAT |
|
|
| CL-12-DPT-.6279 | Metric | 1-15/16 | Press Fit Diamond Pin | 3/4 | 16mm | £29.24 £35.09 Inc. VAT |
|
|
| CL-8-DPT-.4704 | Metric | 1-1/2 | Press Fit Diamond Pin | 1/2 | 12mm | £18.42 £22.10 Inc. VAT |
|
|
| CL-8-DPT-.3130 | Metric | 1-1/2 | Press Fit Diamond Pin | 1/2 | 8mm | £18.42 £22.10 Inc. VAT |
|
|
| CL-16-RPT-.7854 | Metric | 2-5/8 | Press Fit Round Pin | 1 | 20mm | £31.73 £38.08 Inc. VAT |
|
|
| CL-12-RPT-.6279 | Metric | 1-15/16 | Press Fit Round Pin | 3/4 | 16mm | £26.68 £32.02 Inc. VAT |
|
|
| CL-8-RPT-.4704 | Metric | 1-1/2 | Press Fit Round Pin | 1/2 | 12mm | £16.76 £20.11 Inc. VAT |
|
|
| CL-8-RPT-.3130 | Metric | 1-1/2 | Press Fit Round Pin | 1/2 | 8mm | £16.76 £20.11 Inc. VAT |
|
|
| CL-8-DPT-.3927 | Metric | 1-1/2 | Press Fit Diamond Pin | 1/2 | 10mm | £18.42 £22.10 Inc. VAT |
|
|
| CL-5-DPT-.2357 | Metric | 1-3/16 | Press Fit Diamond Pin | 5/16 | 6mm | £18.42 £22.10 Inc. VAT |
|
|
| CL-12-DPT-.7077 | Metric | 1-15/16 | Press Fit Diamond Pin | 3/4 | 18mm | £29.24 £35.09 Inc. VAT |
|
|
| CL-12-DPT-.5502 | Metric | 1-15/16 | Press Fit Diamond Pin | 3/4 | 14mm | £29.24 £35.09 Inc. VAT |
|
|
| CL-12-RPT-.7077 | Metric | 1-15/16 | Press Fit Round Pin | 3/4 | 18mm | £26.68 £32.02 Inc. VAT |
|
|
| CL-12-RPT-.5502 | Metric | 1-15/16 | Press Fit Round Pin | 3/4 | 14mm | £26.68 £32.02 Inc. VAT |
|
|
| CL-8-RPT-.3927 | Metric | 1-1/2 | Press Fit Round Pin | 1/2 | 10mm | £16.76 £20.11 Inc. VAT |
|
|
| CL-5-RPT-.2357 | Metric | 1-3/16 | Press Fit Round Pin | 5/16 | 6mm | £16.67 £20.00 Inc. VAT |
|
|
| CL-967-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 31/32 | £31.73 £38.08 Inc. VAT |
|
|
| CL-905-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 29/32 | £31.73 £38.08 Inc. VAT |
|
|
| CL-498-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 1/2 | £18.42 £22.10 Inc. VAT |
|
|
| CL-842-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 27/32 | £31.73 £38.08 Inc. VAT |
|
|
| CL-435-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 7/16 | £18.42 £22.10 Inc. VAT |
|
|
| CL-373-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 3/8 | £18.42 £22.10 Inc. VAT |
|
|
| CL-310-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 5/16 | £18.42 £22.10 Inc. VAT |
|
|
| CL-467-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 15/32 | £16.76 £20.11 Inc. VAT |
|
|
| CL-405-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 13/32 | £16.76 £20.11 Inc. VAT |
|
|
| CL-342-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 11/32 | £16.76 £20.11 Inc. VAT |
|
|
| CL-187-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 3/16 | £16.67 £20.00 Inc. VAT |
|
|
| CL-124-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 1/8 | £16.67 £20.00 Inc. VAT |
|
|
| CL-998-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 1 | £40.10 £48.12 Inc. VAT |
|
|
| CL-7480-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 3/4 | £40.10 £48.12 Inc. VAT |
|
|
| CL-935-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 15/16 | £40.10 £48.12 Inc. VAT |
|
|
| CL-873-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 7/8 | £40.10 £48.12 Inc. VAT |
|
|
| CL-780-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 25/32 | £31.73 £38.08 Inc. VAT |
|
|
| CL-810-RLT | Imperial | 2-5/8 | Lockscrew Round Pin | 1 | 13/16 | £34.31 £41.17 Inc. VAT |
|
|
| CL-373-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 3/8 | £16.76 £20.11 Inc. VAT |
|
|
| CL-310-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 5/16 | £16.76 £20.11 Inc. VAT |
|
|
| CL-466-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 15/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-404-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 13/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-341-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 11/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-186-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 3/16 | £18.42 £22.10 Inc. VAT |
|
|
| CL-123-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 1/8 | £18.42 £22.10 Inc. VAT |
|
|
| CL-998-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 1 | £31.73 £38.08 Inc. VAT |
|
|
| CL-7480-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 3/4 | £31.73 £38.08 Inc. VAT |
|
|
| CL-935-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 15/16 | £31.73 £38.08 Inc. VAT |
|
|
| CL-873-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 7/8 | £31.73 £38.08 Inc. VAT |
|
|
| CL-779-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 25/32 | £40.10 £48.12 Inc. VAT |
|
|
| CL-810-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 13/16 | £40.10 £48.12 Inc. VAT |
|
|
| CL-966-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 31/32 | £40.10 £48.12 Inc. VAT |
|
|
| CL-904-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 29/32 | £40.10 £48.12 Inc. VAT |
|
|
| CL-498-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 1/2 | £16.76 £20.11 Inc. VAT |
|
|
| CL-841-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 27/32 | £40.10 £48.12 Inc. VAT |
|
|
| CL-435-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 7/16 | £16.76 £20.11 Inc. VAT |
|
|
| CL-186-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 3/16 | £16.67 £20.00 Inc. VAT |
|
|
| CL-123-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 1/8 | £16.67 £20.00 Inc. VAT |
|
|
| CL-749-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 3/4 | £29.24 £35.09 Inc. VAT |
|
|
| CL-686-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 11/16 | £29.24 £35.09 Inc. VAT |
|
|
| CL-624-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 5/8 | £29.24 £35.09 Inc. VAT |
|
|
| CL-779-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 25/32 | £31.73 £38.08 Inc. VAT |
|
|
| CL-810-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 13/16 | £31.73 £38.08 Inc. VAT |
|
|
| CL-561-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 9/16 | £29.24 £35.09 Inc. VAT |
|
|
| CL-966-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 31/32 | £31.73 £38.08 Inc. VAT |
|
|
| CL-4990-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 1/2 | £29.24 £35.09 Inc. VAT |
|
|
| CL-904-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 29/32 | £31.73 £38.08 Inc. VAT |
|
|
| CL-841-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 27/32 | £31.73 £38.08 Inc. VAT |
|
|
| CL-312-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 5/16 | £18.42 £22.10 Inc. VAT |
|
|
| CL-466-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 15/32 | £16.76 £20.11 Inc. VAT |
|
|
| CL-249-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 1/4 | £18.42 £22.10 Inc. VAT |
|
|
| CL-404-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 13/32 | £16.76 £20.11 Inc. VAT |
|
|
| CL-341-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 11/32 | £16.76 £20.11 Inc. VAT |
|
|
| CL-749-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 3/4 | £26.68 £32.02 Inc. VAT |
|
|
| CL-686-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 11/16 | £26.68 £32.02 Inc. VAT |
|
|
| CL-624-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 5/8 | £26.68 £32.02 Inc. VAT |
|
|
| CL-561-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 9/16 | £26.68 £32.02 Inc. VAT |
|
|
| CL-717-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 23/32 | £29.24 £35.09 Inc. VAT |
|
|
| CL-4990-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 1/2 | £26.68 £32.02 Inc. VAT |
|
|
| CL-655-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 21/32 | £29.24 £35.09 Inc. VAT |
|
|
| CL-592-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 19/32 | £29.24 £35.09 Inc. VAT |
|
|
| CL-530-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 17/32 | £29.24 £35.09 Inc. VAT |
|
|
| CL-312-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 5/16 | £16.67 £20.00 Inc. VAT |
|
|
| CL-249-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 1/4 | £16.67 £20.00 Inc. VAT |
|
|
| CL-280-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 9/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-218-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 7/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-155-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 5/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-560-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 9/16 | £29.24 £35.09 Inc. VAT |
|
|
| CL-717-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 23/32 | £26.68 £32.02 Inc. VAT |
|
|
| CL-4980-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 1/2 | £29.24 £35.09 Inc. VAT |
|
|
| CL-655-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 21/32 | £26.68 £32.02 Inc. VAT |
|
|
| CL-592-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 19/32 | £26.68 £32.02 Inc. VAT |
|
|
| CL-530-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 17/32 | £26.68 £32.02 Inc. VAT |
|
|
| CL-311-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 5/16 | £18.42 £22.10 Inc. VAT |
|
|
| CL-248-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 1/4 | £18.42 £22.10 Inc. VAT |
|
|
| CL-280-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 9/32 | £16.67 £20.00 Inc. VAT |
|
|
| CL-218-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 7/32 | £16.67 £20.00 Inc. VAT |
|
|
| CL-155-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 5/32 | £16.67 £20.00 Inc. VAT |
|
|
| CL-748-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 3/4 | £29.24 £35.09 Inc. VAT |
|
|
| CL-685-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 11/16 | £29.24 £35.09 Inc. VAT |
|
|
| CL-623-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 5/8 | £29.24 £35.09 Inc. VAT |
|
|
| CL-311-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 5/16 | £16.67 £20.00 Inc. VAT |
|
|
| CL-248-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 1/4 | £16.67 £20.00 Inc. VAT |
|
|
| CL-279-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 9/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-217-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 7/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-154-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 5/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-748-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 3/4 | £26.68 £32.02 Inc. VAT |
|
|
| CL-685-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 11/16 | £26.68 £32.02 Inc. VAT |
|
|
| CL-623-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 5/8 | £26.68 £32.02 Inc. VAT |
|
|
| CL-560-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 9/16 | £26.68 £32.02 Inc. VAT |
|
|
| CL-716-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 23/32 | £29.24 £35.09 Inc. VAT |
|
|
| CL-4980-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 1/2 | £26.68 £32.02 Inc. VAT |
|
|
| CL-654-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 21/32 | £29.24 £35.09 Inc. VAT |
|
|
| CL-591-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 19/32 | £29.24 £35.09 Inc. VAT |
|
|
| CL-529-DPT | Imperial | 1-15/16 | Press Fit Diamond Pin | 3/4 | 17/32 | £29.24 £35.09 Inc. VAT |
|
|
| CL-279-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 9/32 | £16.67 £20.00 Inc. VAT |
|
|
| CL-217-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 7/32 | £16.67 £20.00 Inc. VAT |
|
|
| CL-154-RPT | Imperial | 1-3/16 | Press Fit Round Pin | 5/16 | 5/32 | £16.67 £20.00 Inc. VAT |
|
|
| CL-999-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 1 | £40.10 £48.12 Inc. VAT |
|
|
| CL-7490-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 3/4 | £40.10 £48.12 Inc. VAT |
|
|
| CL-936-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 15/16 | £40.10 £48.12 Inc. VAT |
|
|
| CL-874-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 7/8 | £40.10 £48.12 Inc. VAT |
|
|
| CL-811-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 13/16 | £40.10 £48.12 Inc. VAT |
|
|
| CL-716-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 23/32 | £26.68 £32.02 Inc. VAT |
|
|
| CL-499-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 1/2 | £18.42 £22.10 Inc. VAT |
|
|
| CL-654-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 21/32 | £26.68 £32.02 Inc. VAT |
|
|
| CL-436-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 7/16 | £18.42 £22.10 Inc. VAT |
|
|
| CL-591-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 19/32 | £26.68 £32.02 Inc. VAT |
|
|
| CL-374-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 3/8 | £18.42 £22.10 Inc. VAT |
|
|
| CL-529-RPT | Imperial | 1-15/16 | Press Fit Round Pin | 3/4 | 17/32 | £26.68 £32.02 Inc. VAT |
|
|
| CL-3115-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 5/16 | £18.42 £22.10 Inc. VAT |
|
|
| CL-999-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 1 | £31.73 £38.08 Inc. VAT |
|
|
| CL-7490-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 3/4 | £31.73 £38.08 Inc. VAT |
|
|
| CL-936-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 15/16 | £31.73 £38.08 Inc. VAT |
|
|
| CL-874-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 7/8 | £31.73 £38.08 Inc. VAT |
|
|
| CL-780-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 25/32 | £40.10 £48.12 Inc. VAT |
|
|
| CL-811-RPT | Imperial | 2-5/8 | Press Fit Round Pin | 1 | 13/16 | £31.73 £38.08 Inc. VAT |
|
|
| CL-967-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 31/32 | £40.10 £48.12 Inc. VAT |
|
|
| CL-905-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 29/32 | £40.10 £48.12 Inc. VAT |
|
|
| CL-499-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 1/2 | £16.76 £20.11 Inc. VAT |
|
|
| CL-842-DPT | Imperial | 2-5/8 | Press Fit Diamond Pin | 1 | 27/32 | £40.10 £48.12 Inc. VAT |
|
|
| CL-436-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 7/16 | £16.76 £20.11 Inc. VAT |
|
|
| CL-374-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 3/8 | £16.76 £20.11 Inc. VAT |
|
|
| CL-3115-RPT | Imperial | 1-1/2 | Press Fit Round Pin | 1/2 | 5/16 | £16.76 £20.11 Inc. VAT |
|
|
| CL-467-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 15/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-405-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 13/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-342-DPT | Imperial | 1-1/2 | Press Fit Diamond Pin | 1/2 | 11/32 | £18.42 £22.10 Inc. VAT |
|
|
| CL-187-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 3/16 | £18.42 £22.10 Inc. VAT |
|
|
| CL-124-DPT | Imperial | 1-3/16 | Press Fit Diamond Pin | 5/16 | 1/8 | £18.42 £22.10 Inc. VAT |
|
Carr Lane Round and Diamond Locating Pins
These precision locating pins are ideal for positioning workpieces due to the broad range of available head diameters, allowing them to fit machined holes in the part. Along with standard diameters, custom head sizes ranging from .1150" to 1.0400" can be quickly produced in .0001" increments to meet specific requirements. Typically, a Round Locating Pin and a Diamond Locating Pin are used together to align from two holes without causing interference, as the Diamond Locating Pin is specially relieved for this purpose. The press-fit shank is designed for permanent installation whereas the lockscrew variant is manufactured with a slip-fit shank for renewable installation.
Options:
- Round and Diamond, Press-Fit and Lockscrew Type
- Metric and Imperial sizes
- Shank Diameter - 5/16 - 1
| Quantity | Unit discount | You Save |
|---|
