Carr Lane Clamps

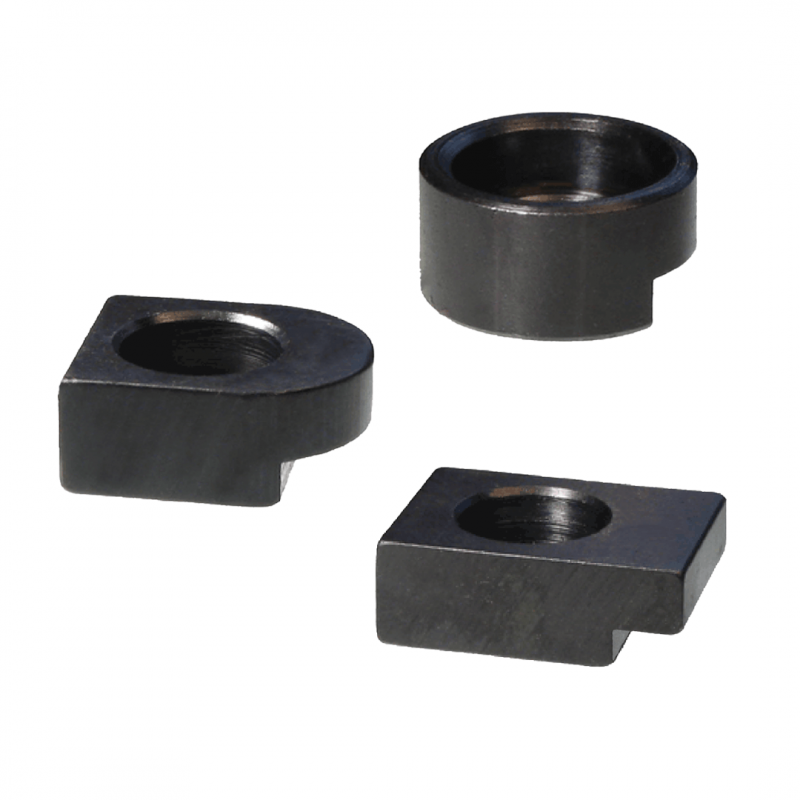

Carr lane clamps are available in three variants including flat, round and round end. All of the Clamp variants are available in both standard mounting and projected mounting options. These Carr Lane clamps are readily available in both metric and imperial with a wide range of sizes to fit renewable bushings from 5/16 to 5" body diameter.
- Available n Metric and Imperial
- 3 clamp types
- Standard or projected mounting options
| Part Number | Material Number | Type | Metric or Imperial | Internal Diameter | Clamp Type | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| RCM-6 | Projected Mounting | Metric | M8 | Round Clamp | On Enquiry | ||
| RK-14 | Projected Mounting | Imperial | 3/8-16 | Round End Clamp | £7.28 £8.74 Inc. VAT |
|
|
| FC-14 | Projected Mounting | Imperial | 3/8-16 | Flat clamp | On Enquiry | ||
| RCM-2 | Projected Mounting | Metric | M5 | Round Clamp | On Enquiry | ||
| FC-11 | Projected Mounting | Imperial | 1/4-20 | Flat clamp | £8.87 £10.64 Inc. VAT |
|
|
| RK-13 | Projected Mounting | Imperial | 1/4-23 | Round End Clamp | On Enquiry | ||
| FC-13 | Projected Mounting | Imperial | 5/16-18 | Flat clamp | £6.22 £7.46 Inc. VAT |
|
|
| RK-11 | Projected Mounting | Imperial | 1/4-21 | Round End Clamp | £6.83 £8.20 Inc. VAT |
|
|
| RCM-4 | Projected Mounting | Metric | M6 | Round Clamp | On Enquiry | ||
| RCM-8 | Projected Mounting | Metric | M10 | Round Clamp | On Enquiry | ||
| FC-15 | Projected Mounting | Imperial | 3/8-16 | Flat clamp (2 Hole) | On Enquiry | ||
| FC-12 | Projected Mounting | Imperial | 5/16-18 | Flat clamp | £6.37 £7.64 Inc. VAT |
|
|
| RK-10 | Projected Mounting | Imperial | 1/4-20 | Round End Clamp | £6.83 £8.20 Inc. VAT |
|
|
| FC-10 | Projected Mounting | Imperial | 1/4-20 | Flat clamp | On Enquiry | ||
| RK-12 | Projected Mounting | Imperial | 1/4-22 | Round End Clamp | £6.83 £8.20 Inc. VAT |
|
|
| RCM-1 | Standard Mounting | Metric | M5 | Round Clamp | £6.86 £8.23 Inc. VAT |
|
|
| FC-04* | Standard Mounting | Imperial | 3/8-16 | Flat clamp | On Enquiry | ||
| RK-04 | Standard Mounting | Imperial | 3/8-16 | Round End Clamp | £7.28 £8.74 Inc. VAT |
|
|
| RC-05 | Standard Mounting | Imperial | 3/8-16 | Round Clamp | On Enquiry | ||
| RCM-5 | Standard Mounting | Metric | M8 | Round Clamp | £6.86 £8.23 Inc. VAT |
|
|
| FC-06* | Standard Mounting | Imperial | 3/8-16 | Flat clamp | On Enquiry | ||
| RK-03 | Standard Mounting | Imperial | 5-16-18 | Round End Clamp | £6.83 £8.20 Inc. VAT |
|
|
| FC-01 | Standard Mounting | Imperial | 1/4-20 | Flat clamp | £6.19 £7.43 Inc. VAT |
|
|
| RK-01 | Standard Mounting | Imperial | 1/4-20 | Round End Clamp | £6.83 £8.20 Inc. VAT |
|
|
| RC-02 | Standard Mounting | Imperial | 1/4-20 | Round Clamp | On Enquiry | ||
| FC-03 | Standard Mounting | Imperial | 5/16-18 | Flat clamp | On Enquiry | ||
| RC-04 | Standard Mounting | Imperial | 3/8-16 | Round Clamp | On Enquiry | ||
| RCM-3 | Standard Mounting | Metric | M6 | Round Clamp | £6.86 £8.23 Inc. VAT |
|
|
| FC-05* | Standard Mounting | Imperial | 3/8-16 | Flat clamp (2 Hole) | £9.23 £11.08 Inc. VAT |
|
|
| RK-05 | Standard Mounting | Imperial | 3/8-16 | Round End Clamp | On Enquiry | ||
| RCM-7 | Standard Mounting | Metric | M10 | Round Clamp | £10.64 £12.77 Inc. VAT |
|
|
| FC-07* | Standard Mounting | Imperial | 3/8-16 | Flat clamp (2 Hole) | £8.06 £9.67 Inc. VAT |
|
|
| RC-03 | Standard Mounting | Imperial | 5/16-18 | Round Clamp | On Enquiry | ||
| RC-01 | Standard Mounting | Imperial | 1/4-20 | Round Clamp | On Enquiry | ||
| FC-02 | Standard Mounting | Imperial | 5/16-18 | Flat clamp | £6.19 £7.43 Inc. VAT |
|
|
| RK-02 | Standard Mounting | Imperial | 1/4-20 | Round End Clamp | £15.60 £18.72 Inc. VAT |
|
Carr Lane Clamps
Carr lane clamps are available in three variants including flat, round and round end. All of the Clamp variants are available in both standard mounting and projected mounting options. These Carr Lane clamps are readily available in both metric and imperial with a wide range of sizes to fit renewable bushings from 5/16 to 5" body diameter.

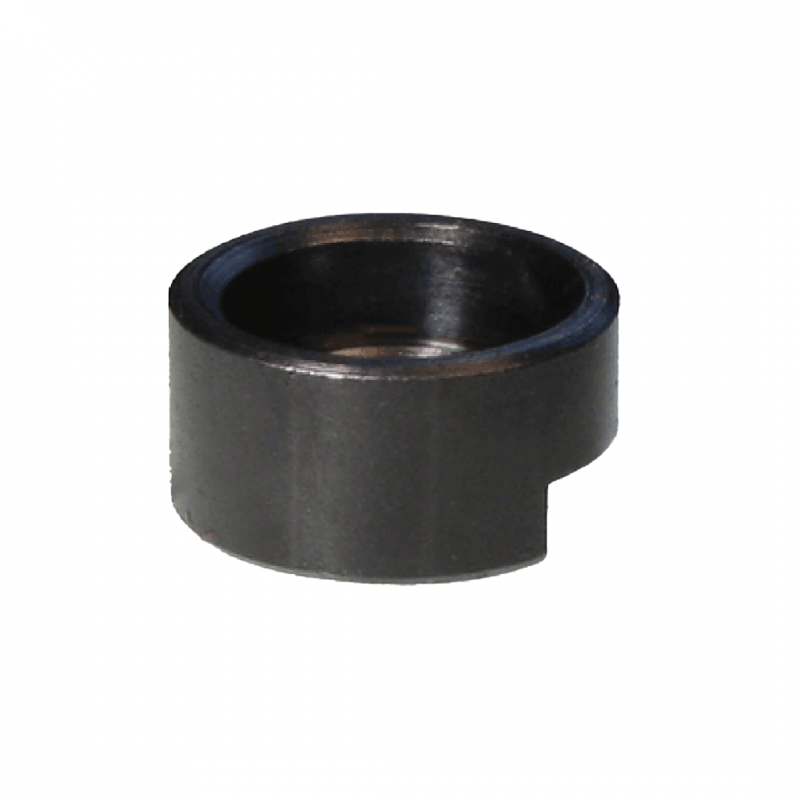

Carr Lane Round Clamps
Alternative to lockscrews when using the "fixed" side of a slip-fixed SF Bushing. Round Clamps have less clearence under their heads, to clamp bushings tighter (which is why you cannot use them on the bushings "slip" side). Use them with a socket-Head cap Screw.

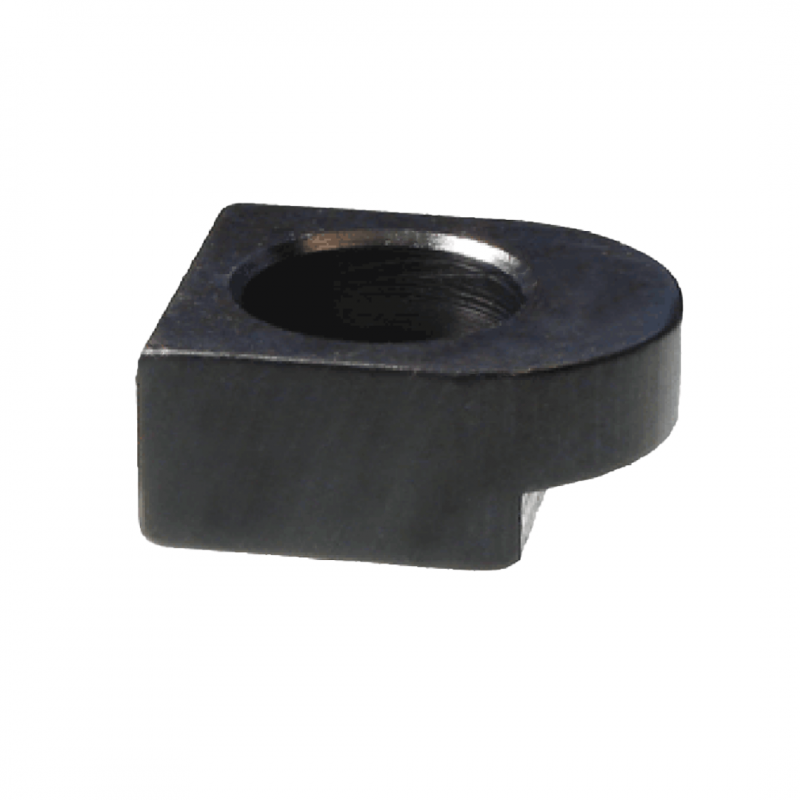

Carr Lane Round End Clamps
A Heavy-duty alternative to lockscrews. Allows locating tapped hole farther away from bushing to avoid interference with a larger liner. Use on either the "slip" or "fixed" side of a slip-fixed renewable bushing. Available in two Heights: standard for recessed liner Mounting; Tall for projected head-liner mounting. Use a Socket-Head Cap Screw.

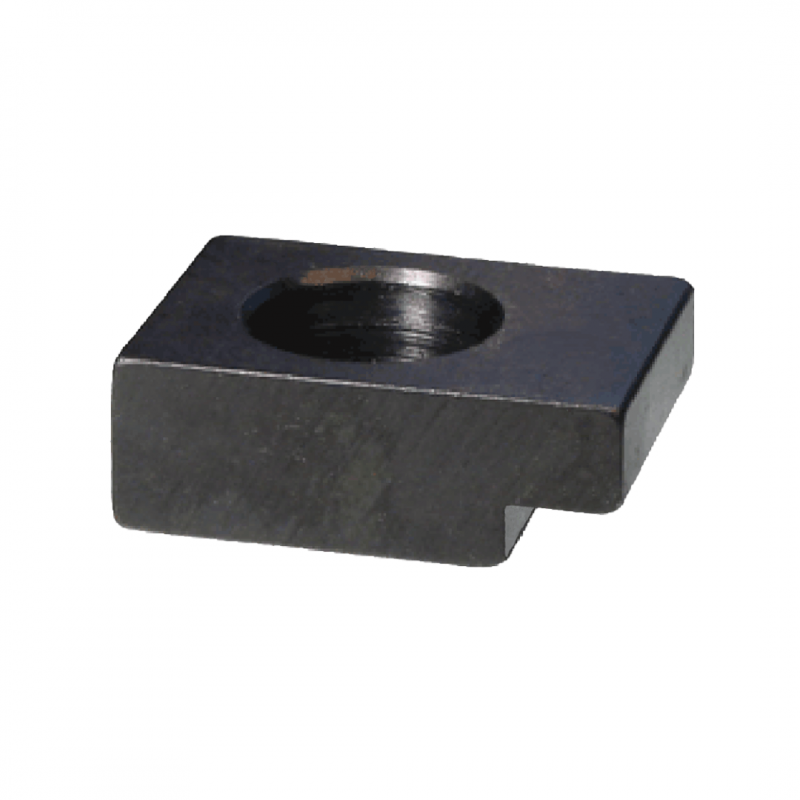

Carr lane Flat Clamps
Use to Lock FM-Type fixed-renewable bushings which have a milled locking flat. Available in two Heights: standard for recessed liner mounting; Tall for projected head-liner mounting. Use with one or two socket-head cap screws.
