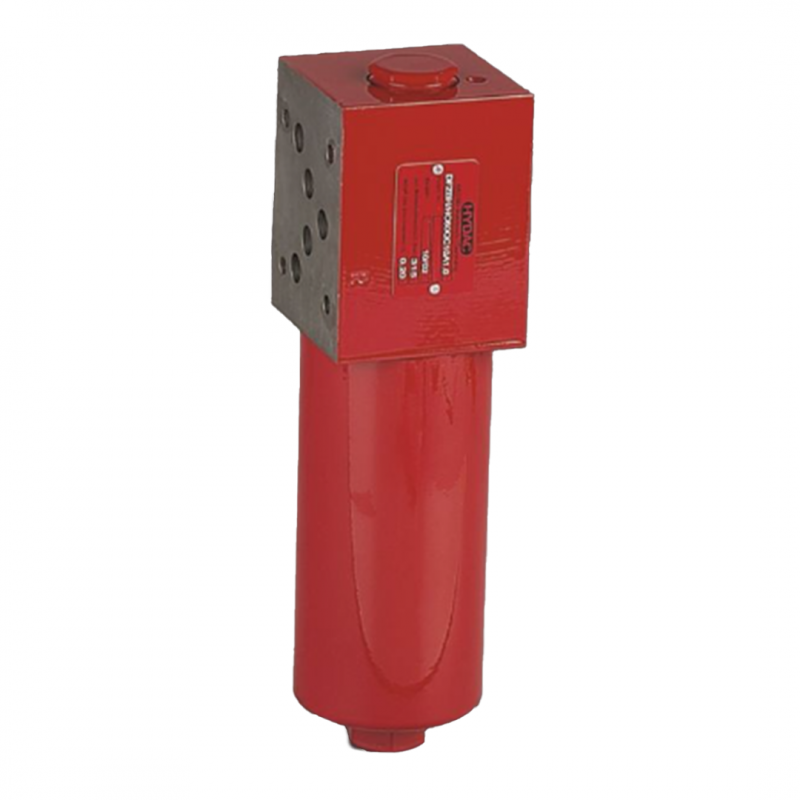

Hydac Pressure Filter DFZ for Sandwich Stacking

HYDAC Pressure Filter DFZ, designed for sandwich stacking, offers efficient hydraulic filtration with flow rates up to 80 l/min and pressure levels up to 315 bar. Built with a screw-in filter bowl and right-side service access, it ensures reliable contaminant control. With compatibility for hydraulic fluids and validated filter elements, it supports optimal system performance.

Key Features:

  • Flow rates up to 80 l/min
  • Pressure levels up to 315 bar

Print page

Description

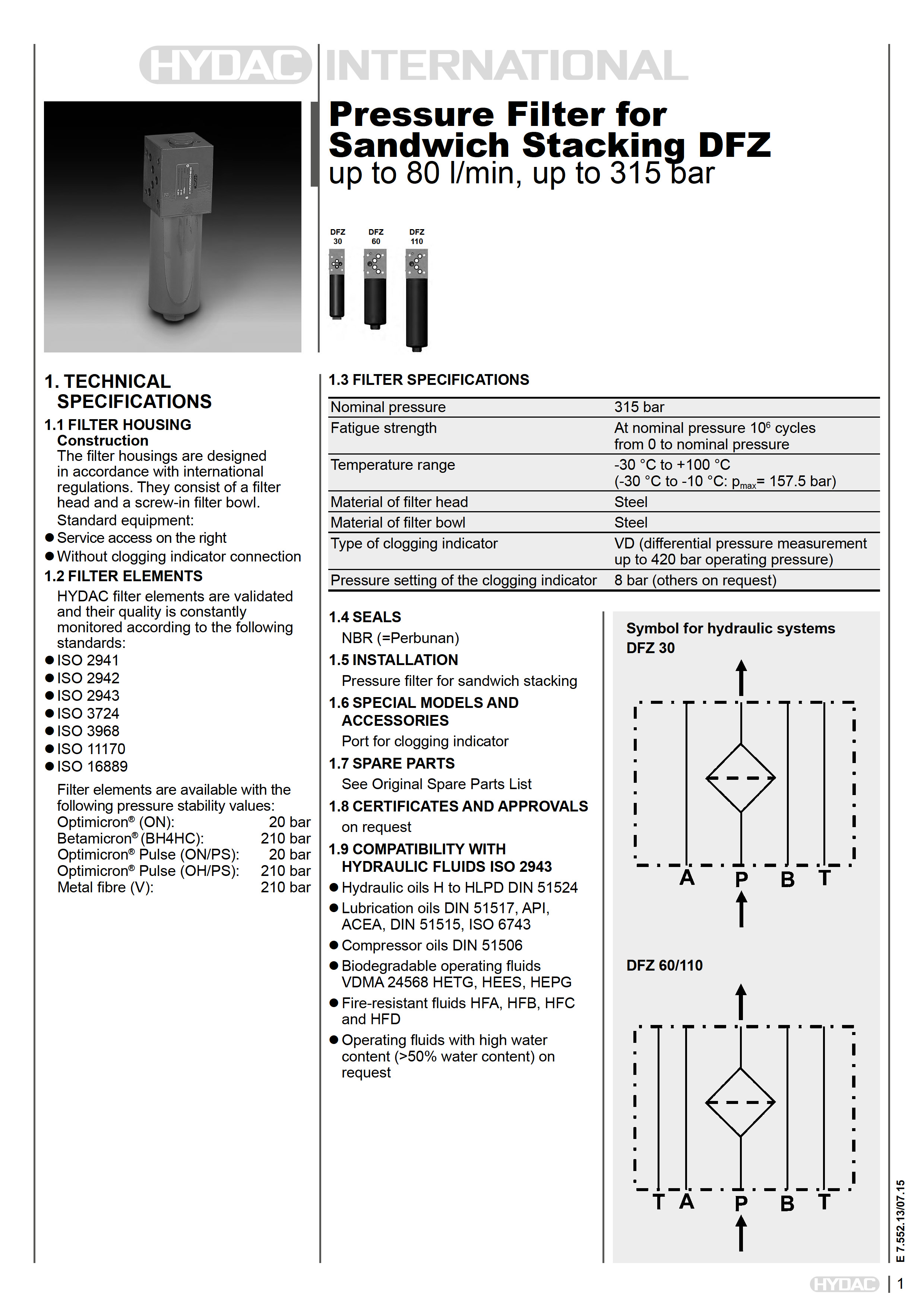

Downloads
Hydac Pressure Filter DFZ for Sandwich Stacking

HYDAC Pressure Filter DFZ for Sandwich Stacking

  • Flow rates up to 80 l/min
  • Pressure levels up to 315 bar
  • Connections: Nominal size 6 and 10 in accordance with
    DIN 24340/Cetop R 35 H
  • Installation sizes: 30, 60, 110

Features:

  • Service access on the right
  • Without clogging indicator connection
  • The filter housings are designed in accordance with international regulations
  • They consist of a filter head and a screw-in filter bowl
  • Pressure setting of the clogging indicator 2 bar (others on request)
  • Special models and accessories available on request
  • Compatibility with hydraulic fluids ISO 2943

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Betamicron® (BN4HC): 20 bar
  • Betamicron® (BH4HC): 210 bar
  • Stainless steel fibre (V): 210 bar
