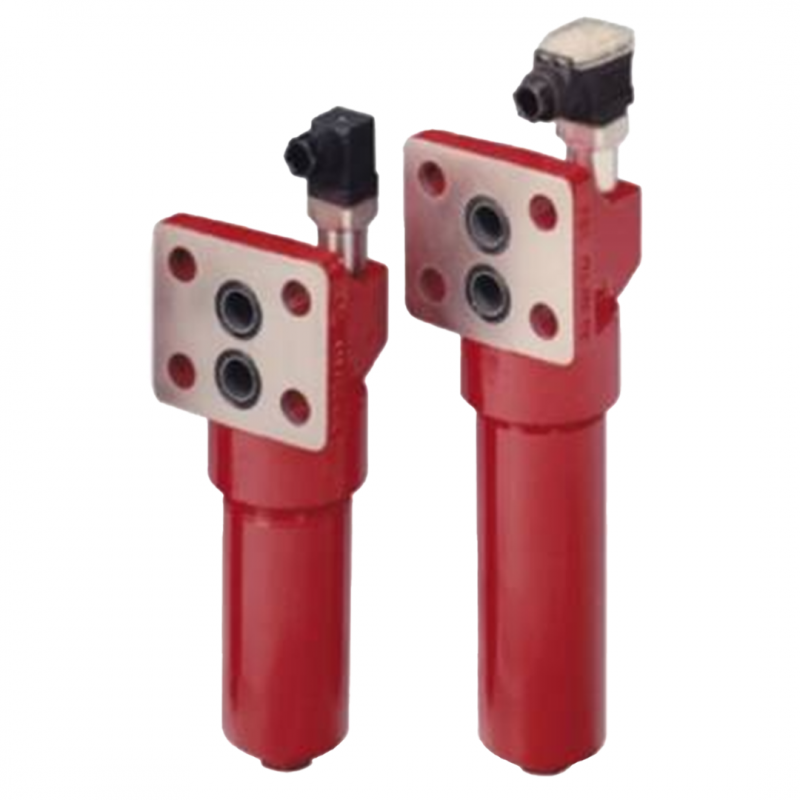

Hydac Manifold Mounted Pressure Filter DF...MA, DF...QE, DF...MHA, DF...MHE

HYDAC Manifold Mounted Pressure Filter DF...MA, DF...QE, DF...MHA, DF...MHE

• Flow Rates up to 550 l/min
• Pressure Range up to, 315 bar
• Temperature Range -10°C to +100°C (- 30°C bar/2)

Features:

• The filter housings are designed in accordance with international regulations
• They consist of a filter head and a screw-in filter bowl
• Mounting holes in the filter head as standard
• Two-piece bowl for size DF...990 and above (optional for size DF...660)
• Drain screw with pressure relief (standard for size DF...330 and above)
• Pressure setting of the clogging indicator 5 bar (others on request)
• Manifold Mounted, Rear Flanged
• Designed for Industrial Hydraulic Applications
• Compatibility with hydraulic fluids ISO 2943
• Special models and accessories available on request
• Certificates and approvals available on request
• Original Hydac Filter Elements Guarantee Reliable Filter Operation

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

• ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

• Betamicron® (BN4HC): 20 bar
• Betamicron (BH4HC): 210 bar
• Wire mesh (W/HC): 20 bar
• Stainless steel fibre (V): 210 bar

Hydac Inline filter for lateral flange mounting DF...K P

• Flow rates up to 550 l/min
• Pressure levels up to 180 bar
• Sizes: 330, 500, 660, 990, 1320

Hydac Inline filter for lateral flange mounting DF...M P

• Flow rates up to 280 l/min
• Pressure levels up to 260 bar
• Sizes: 160, 240, 280
