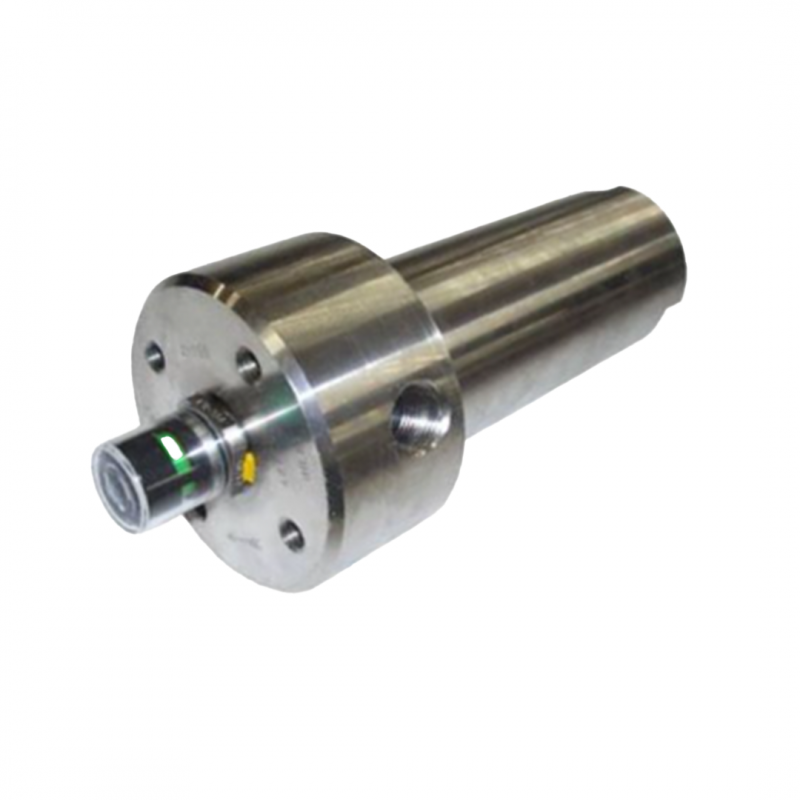

Hydac Stainless Steel High-pressure Filter MPSSF...P for Panel Mounting
MPSSF...P Stainless steel high-pressure filter for panel mounting
- Flow rates up to 130 l/min
- Pressure levels up to 450 bar
- Test pressure 675 bar
Description
Downloads
Hydac Stainless Steel High-pressure Filter MPSSF...P for Panel Mounting
- Flow rates up to 130 l/min
- Pressure levels up to 450 bar
- Test pressure 675 bar
- Temperature range -20 °C to +100 °C
- Connections: ¼" to 1½" NPT or BSPP
- Installation sizes: 30, 60, 110, 160, 240, 330
Features:
- The filter housings are designed in accordance with international regulations
- They consist of a filter head and a screw-on filter bowl
- Without bypass valve
- Bypass cracking pressure (optional) 6 bar (others on request)
- Connection for a clogging indicator
- Type of clogging indicator VD (Diff. pressure indicator up to 450 bar oper. pressure)
- Pressure setting of clogging indicator 5 bar (others on request)
- Oil drain plug in filter bowl
- Compatibility with hydraulic fluids ISO 2943
- Special models and accessories available on request
- Certificates and approvals available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Betamicron® (BN4HC): 20 bar
- Betamicron® (BN4HC) /-SS-SO361: 20 bar
- Betamicron® (BH4HC): 210 bar
- Betamicron® (BH4HC) /-SS-SO361: 210 bar
- Stainless steel wire mesh (D): 210 bar
- Wire mesh (W/HC): 20 bar
- Chemicron® (M): 210 bar
