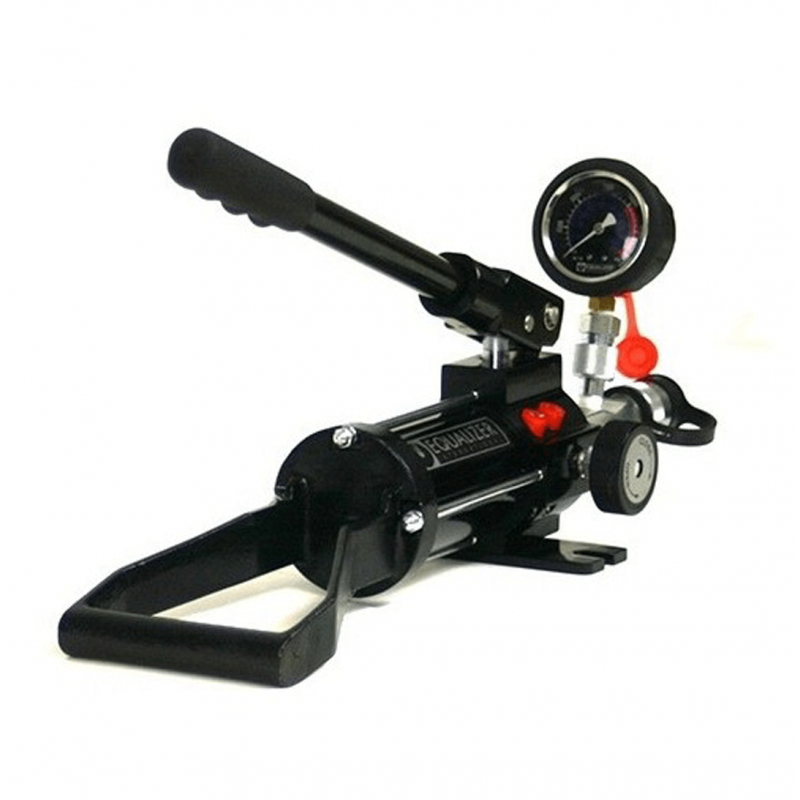

Single Port Single Acting Sealed Hydraulic Hand pumps

The Equalizer Hydraulic Single-Port Hand-Pump range is tailored for use with Equalizer International hydraulic equipment. The diaphragm oil-reservoir design means that, unlike conventional units, the hand-pumps are operable at all angles and are highly resistant to accidental spillage of hydraulic fluid.

Equalizer Logo

Print page

Description
Downloads
DS HPccS Rev03 A4
[vc_row][vc_column][vc_column_text]

Equalizer Single Port Single Acting Sealed Hydraulic Hand pumps

  • Max pressure rating:
  • 1st Stage: 13.8 bar (197 psi)
  • 2nd Stage: 700 bar (10 000 psi)

Nominal oil capacity:

  • HP350S: 350 cc
  • HP550S: 550cc
  • HP1000S: 1000cc

Features:

  • two speed
  • lightweight
  • sealed unit
  • hand-held
  • retractable/expandable oil reservoir

Operating benefits:

  • universal orientation
  • no oil spillage

Equalizer single port hand pumps have been designed with hazard reduction, safety and ease of use in mind.

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/1"][vc_column_text]

Kit Components.

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/3"][vc_column_text]

HP350S

1 x HP350S Pump Unit
1 x 700 bar (10 000 psi) Gauge
1 x 3/8” Port Gauge Adaptor
1 x Instruction Manual
1 x Cardboard Packaging

Packaging Dimensions:
250 mm x 180 mm x 600 mm
(9.84” x 7.09” x 23.62”)

Product Code: HP350SMIN

[/vc_column_text][/vc_column][vc_column width="1/3"][vc_column_text]

HP550S

1 x HP550S Pump Unit
1 x 700 bar (10 000 psi) Gauge
1 x 3/8” Port Gauge Adaptor
1 x Instruction Manual
1 x Cardboard Packaging

Packaging Dimensions:
250 mm x 180 mm x 700 mm
(9.84” x 7.09” x 27.56”)

Product Code: HP550SMIN

[/vc_column_text][/vc_column][vc_column width="1/3"][vc_column_text]

HP1000S

1 x HP1000S Pump Unit
1 x 700 bar (10 000 psi) Gauge
1 x 3/8” Port Gauge Adaptor
1 x Instruction Manual
1 x Cardboard Packaging

Packaging Dimensions:
250 mm x 180 mm x 900 mm
(9.84” x 7.09” x 35.43”)

Product Code: HP1000SMIN

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/1"][vc_column_text]

Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can't find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959
