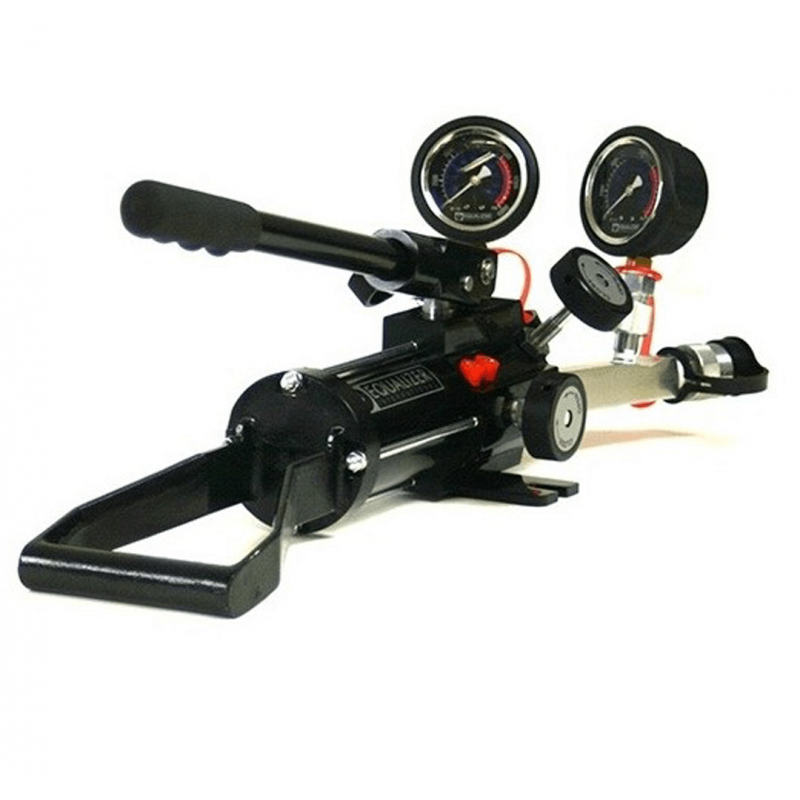

Twin Port Single Acting Sealed Hydraulic Hand Pumps
The Equalizer Hydraulic Twin-Port Hand-Pump range is tailored for use with Equalizer International hydraulic equipment. The diaphragm oil-reservoir design means that, unlike conventional units, the hand-pumps are operable at all angles and are highly resistant to accidental spillage of hydraulic fluid.
Equalizer Twin Port Single Acting Sealed Hydraulic Hand Pumps
- Max pressure rating:
- 1st Stage: 13.8 bar (197 psi)
- 2nd Stage: 700 bar (10 000 psi)
Nominal oil capacity:
- HP350D: 350 cc
- HP550D: 550cc
- HP1000D: 1000cc
Features:
- two speed
- lightweight
- sealed unit
- hand-held
- retractable/expandable oil reservoir
Operating benefits:
- universal orientation
- no oil spillage
The Equalizer twin port hand pumps have been designed with hazard reduction, safety and ease of use in mind.
Kit Components
HP350D
1 x HP350D Pump Unit
2 x 700 bar (10 000 psi) Gauges
2 x 3/8” Port Gauge Adaptors
1 x Instruction Manual
1 x Cardboard Packaging
Packaging Dimensions:
250 mm x 180 mm x 600 mm
(9.84” x 7.09” x 23.62”)
Product Code: HP350DMIN
HP550D
1 x HP550D Pump Unit
2 x 700 bar (10 000 psi) Gauges
2 x 3/8” Port Gauge Adaptors
1 x Instruction Manual
1 x Cardboard Packaging
Packaging Dimensions:
250 mm x 180 mm x 700 mm
(9.84” x 7.09” x 27.56”)
Product Code: HP550DMIN
HP1000D
1 x HP1000D Pump Unit
2 x 700 bar (10 000 psi) Gauges
2 x 3/8” Port Gauge Adaptors
1 x Instruction Manual
1 x Cardboard Packaging
Packaging Dimensions:
250 mm x 180 mm x 900 mm
(9.84” x 7.09” x 35.43”)
Product Code: HP1000DMIN
