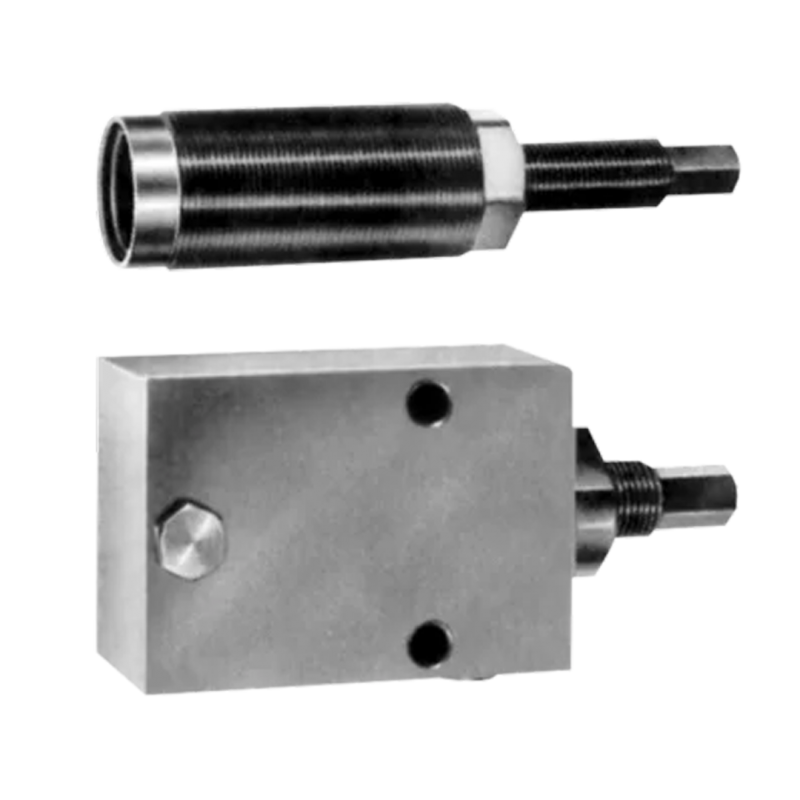

Screw Pump
ROEMHELD D8.819 Screw Pump suited as a pressure source for very small clamping fixtures
- Maximum operating pressure 500 bar
- Piston Ø: 25 mm
- Stroke: 43 mm
- Displacement: 21 cm³
- Displacement/revolution 0.98 cm³
- Torque: 0 - 50 Nm
- Mounting position: horizontal
The screw pump is especially suited as a pressure source for very small clamping fixtures, which must be independent of an external pressure source.
Description
Downloads

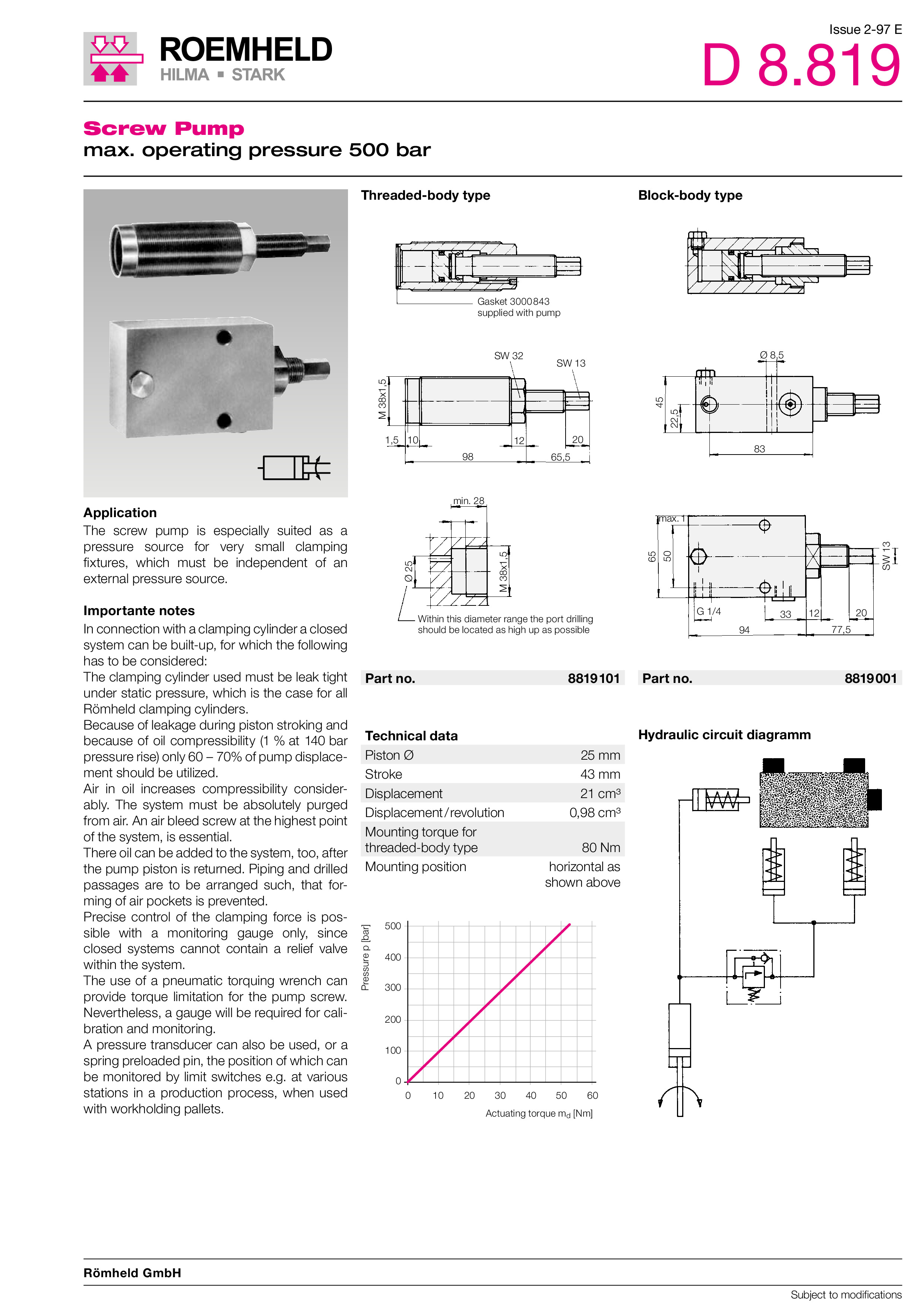

Screw Pump - ROEMHELD D8.819
- Max. operating pressure 500 bar
- Piston Ø: 25 mm
- Stroke: 43 mm
- Displacement: 21 cm³
- Displacement/revolution 0.98 cm³
- Torque: 0 - 50 Nm
- Mounting position: horizontal
Application:
The screw pump is especially suited as a pressure source for very small clamping fixtures, which must be independent of an external pressure source.
