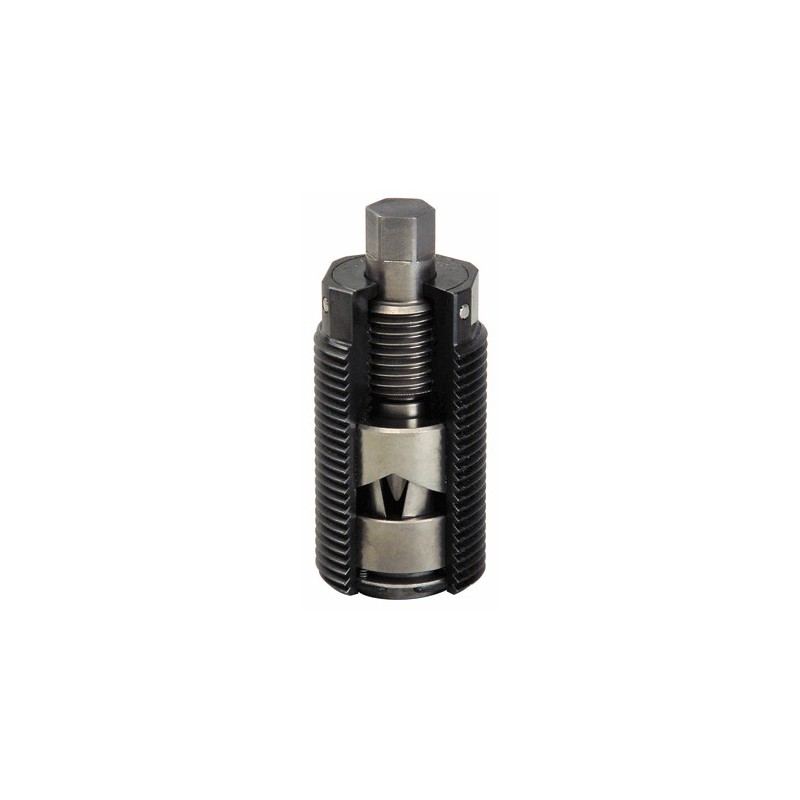

Mechanical High-pressure Spindle

HILMA WZ 6.2270 High-pressure Spindles, Mechanical with integrated wedge system

  • Clamping force: 40, 80 or 120 kN
  • Clamping stroke: 1.5 - 2.5 mm
  • Max. tightening torque: 45 - 140 Nm
  • External thread: M36, M48 or M64

Description
Downloads

Mechanical High-pressure Spindle - HILMA WZ 6.2270

  • Clamping force: 40, 80 or 120 kN
  • Clamping stroke: 1.5 - 2.5 mm
  • Max. tightening torque: 45 - 140 Nm
  • External thread: M36, M48 or M64

Advantages:

  • Easy to retrofit
  • Temperature resistance up to 250 °C
  • Compact design allows for multiple clamping
  • High clamping force with low tightening torque
  • Self-locking due to patented wedge system
  • Individual use

Application:

  • In bars and blocks
  • Clamping and locking of workpieces and dies
  • When the available space is limited
  • In presses, punching machines and machine tools

Description:

Following manual positioning of the high-pressure spindle against the clamping edge, the drive spindle is operated by turning the hexagon nut SW1. Thus, the clamping force is transmitted in axial direction to the clamping point by the wedge system. The required clamping force is achieved by selecting the appropriate torque on the torque wrench (see force torque diagram). For unclamping, proceed in the reverse order.

Accessories:

  • Torque wrench 20 – 100 Nm
    Part no. 9 3792 6610
  • Torque wrench 40 – 200 Nm
    Part no. 9 3792 6620
