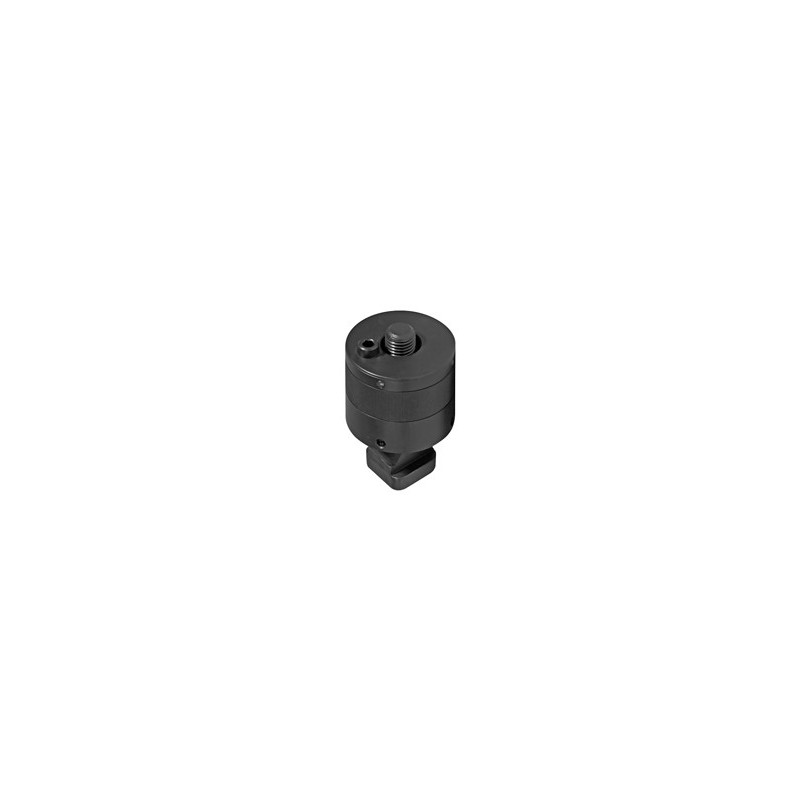

Mechanical Clamping Nut with Through-hole Thread
Hilma WZ 6.2274 Mechanical Clamping Nut with through-hole thread and clamping force display for the clamping and locking of dies on press bed and ram.
- T-slot DIN 650: 14 - 42 mm
- Clamping force: 60 - 180 kN
- Max. tightening torque: 30 - 110 Nm
Description
Downloads
Mechanical Clamping Nut - Hilma WZ 6.2274
- T-slot DIN 650: 14 - 42 mm
- Clamping force: 60 - 180 kN
- Max. tightening torque: 30 - 110 Nm
Advantages:
- Temperature resistance up to 200 °C
- High clamping force with low torque
- Easy to retrofit
- Clamping nut with through-hole thread, therefore high adaptability to varying heights of clamping edges and tolerances
- Easy clamping and unclamping by hand
- Hydraulic-free and maintenance-free clamping
- Maximum force density in the smallest space
Application:
- Clamping and locking of dies on press bed and ram
- When highest clamping force is required in the smallest possible space
- If no hydraulic power unit is available
- Where oil-free clamping is desired
Description:
Following manual positioning of the clamping nut against the clamping edge, the integral gear will be operated by turning the hexagon socket. As a result of the gear transmission, the tightening torque is multiplied. To reliably ensure the required clamping force, we recommend using a torque wrench. Material: free cutting steel, nitrocarburized Temperature range: – 30 °C to + 200 °C
