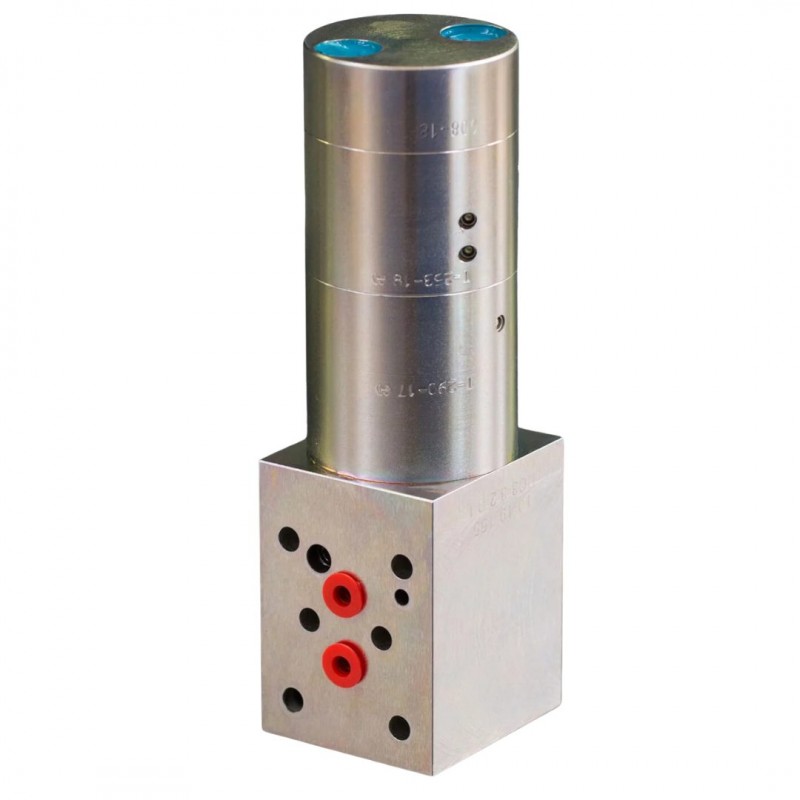

miniBOOSTER HC3-I

The HC3-I is a variant of the HC3 providing high-pressure on the B port. It is designed for use in NG6 (D03) stacking manifold systems. The unit is compact weighing only 2.5 kg.

Maximum outlet pressure is 500 bar in standard versions. Adjustments of the outlet pressure is carried out by varying the supplied pressure.

HC3 – I versions: 15 different intensification factors

P - IN: 20 – 207 bar

P - H: 500 bar maximum

P - RETURN: As low as possible (return pressure to tank)

P - OUTLET: PH = (PIN – PRETURN) x intensification factor

Mounting: NG6 (D03) stacking manifold system

Weight:  2.5 kg.

Model versions:

A model = no dump valve

B model = with dump valve

G model = direct proportionally controlled

Material certificate 3.1 on request
