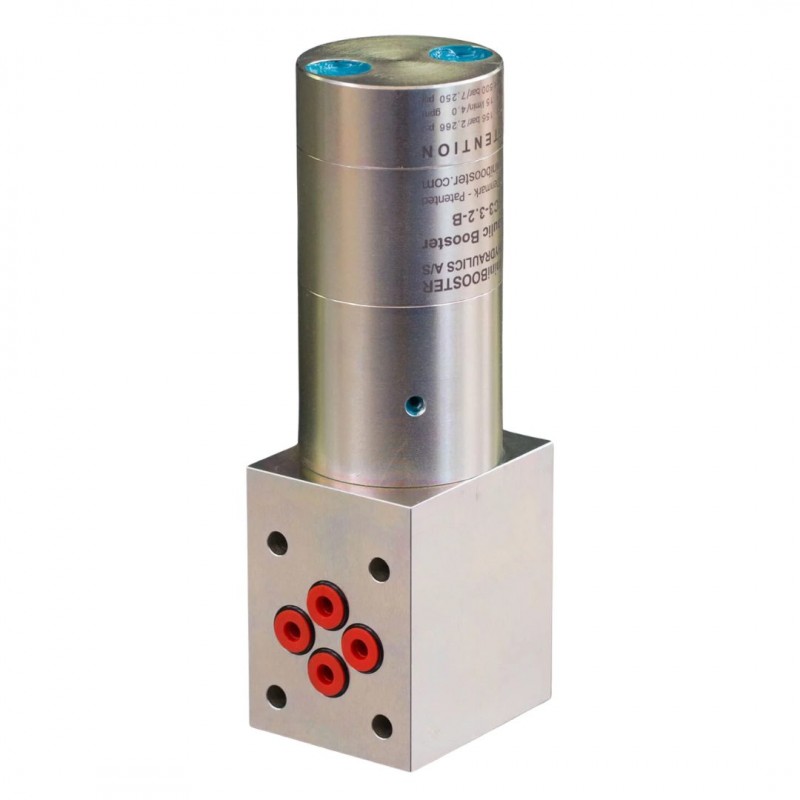

miniBOOSTER HC3

The HC3 is a version of the HC2 designed for use in NG6 (D03) stacking manifold systems. It is a compact unit weighing only 2.5 kg.

Maximum outlet pressure is 500 bar in standard versions. Adjustments of the outlet pressure is carried out by varying the supplied pressure.

HC3 versions: 15 different intensification factors

P - IN: 20–207 bar

P - H: 500 bar maximum

P - RETURN: As low as possible (return pressure to tank)

P - OUTLET: PH = (PIN – PRETURN) x intensification factor

Mounting: NG6 (D03) stacking manifold system

Weight:  2.6 kg.

Model versions:

A model = no dump valve

B model = with dump valve

G model = direct proportionally controlled

Material certificate 3.1 on request
