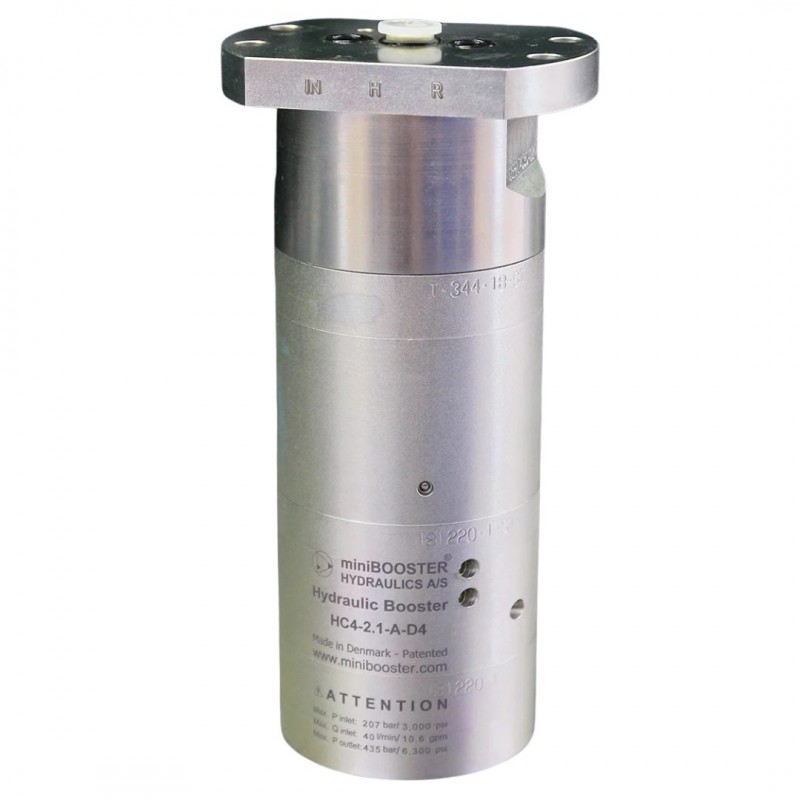

miniBOOSTER HC4-D4
The HC4-D4 is a variant of the HC4 for flange mounting, the entire pattern is a miniBOOSTER design, comparable to HC2D-D pattern. The HC4-D4 is ideal for use in applications where a higher volume of high-pressure fluid is required. The HC4-D4 is a compact unit weighing only 4.9 kg, but it delivers up to 16.3 l/min outlet flow.
Like the HC4, it raises supplied pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
The HC4-D4 is a variant of the HC4 for flange mounting, the entire pattern is a miniBOOSTER design, comparable to HC2D-D pattern. The HC4-D4 is ideal for use in applications where a higher volume of high-pressure fluid is required. The HC4-D4 is a compact unit weighing only 4.9 kg, but it delivers up to 16.3 l/min outlet flow.
Like the HC4, it raises supplied pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.
HC4 – D4 versions: 11 different intensification factors
PIN: 20 – 207 bar
PH: 800 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Flange, manifold system miniBOOSTER pattern
Weight: 4.9 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
