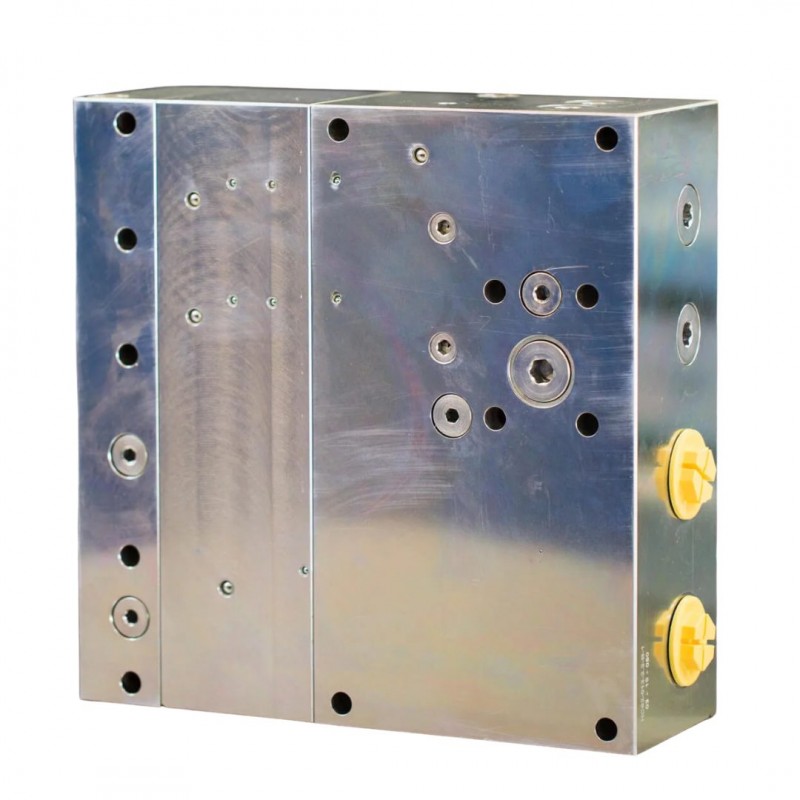

Minibooster HC62
The HC62 is a high-flow unit which is capable of delivering up to 43 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC62 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC62 is a compact unit weighing only 50.0 kg.
HP flange mounting is optional. Furthermore, it is possible to flange multiple HC62 boosters in order to achieve higher flow.
The HC62 is a high-flow unit which is capable of delivering up to 43 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC62 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC62 is a compact unit weighing only 50.0 kg.
HP flange mounting is optional. Furthermore, it is possible to flange multiple HC62 boosters in order to achieve higher flow.
HC62 versions: 9 different intensification factors
PIN: 20 – 207 bar
PH: 800 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube / HP-flange mounting (optional)
Weight: 48.0 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
