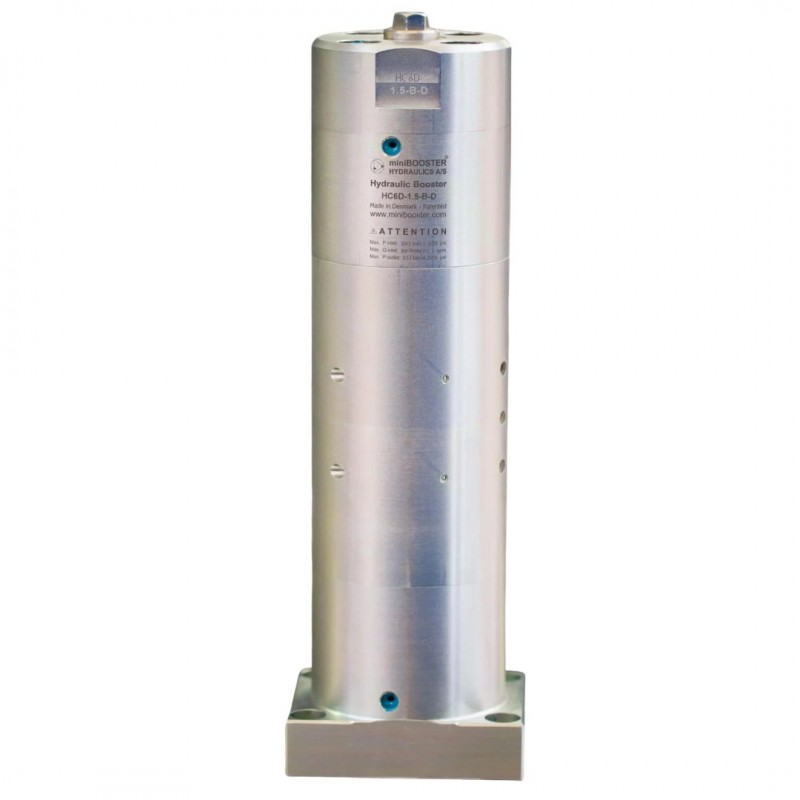

Minibooster HC6D-D
The HC6D-D is a high-flow dual-acting unit, which is capable of delivering up to 65.0 l/min flow on the high-pressure end.Like other miniBOOSTER models, the HC6D-D raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6D-D is a compact unit weighting 20 kg. The hole pattern is a miniBOOSTER design. HC6D mounted with HC6D-HKIT can be directly replaced by HC6D-D.
The HC6D-D is a high-flow dual-acting unit, which is capable of delivering up to 65.0 l/min flow on the high-pressure end.Like other miniBOOSTER models, the HC6D-D raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6D-D is a compact unit weighting 20 kg. The hole pattern is a miniBOOSTER design. HC6D mounted with HC6D-HKIT can be directly replaced by HC6D-D.
HC6D-D versions: 9 different intensification factors
PIN: 20–207 bar
PH: 800 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Flange, Manifold system miniBOOSTER pattern
Weight: 20.0 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
