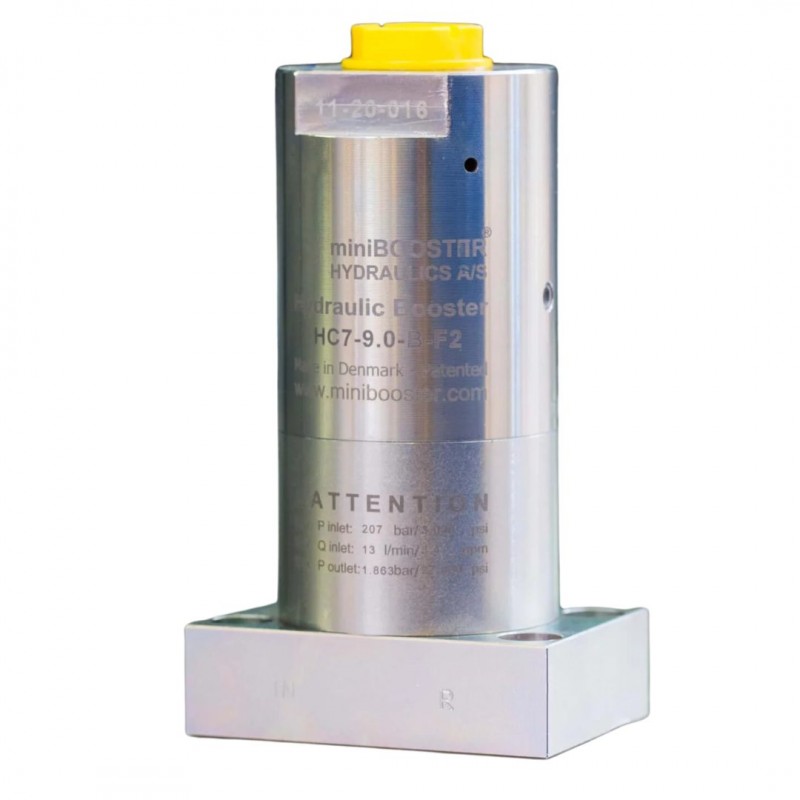

Minibooster HC7-U

The HC7-U is a very compact high-pressure unit capable of delivering pressure up to 2,000 bar, weighing only 1.5 kg. It is ideal for use in portable applications like on power packs. Oil from the cylinder will be released directly via T-port to the tank, with a minimum back pressure.

The HC7-U raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high-pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.

HC7-U versions: 10 different intensification factors

P - IN: 20 – 207 bar

P - H: 2,000 bar maximum

P - RETURN: As low as possible (return pressure to tank)

P - OUTLET: PH = (PIN – PRETURN) x intensification factor

Mounting: Inline tube

Weight: 1.5 kg.

Model versions:

B model = with dump valve

G model = direct proportionally controlled

Material certificate 3.1 on request

HC7-U is designed for applications with cylinders that have weak spring return.
