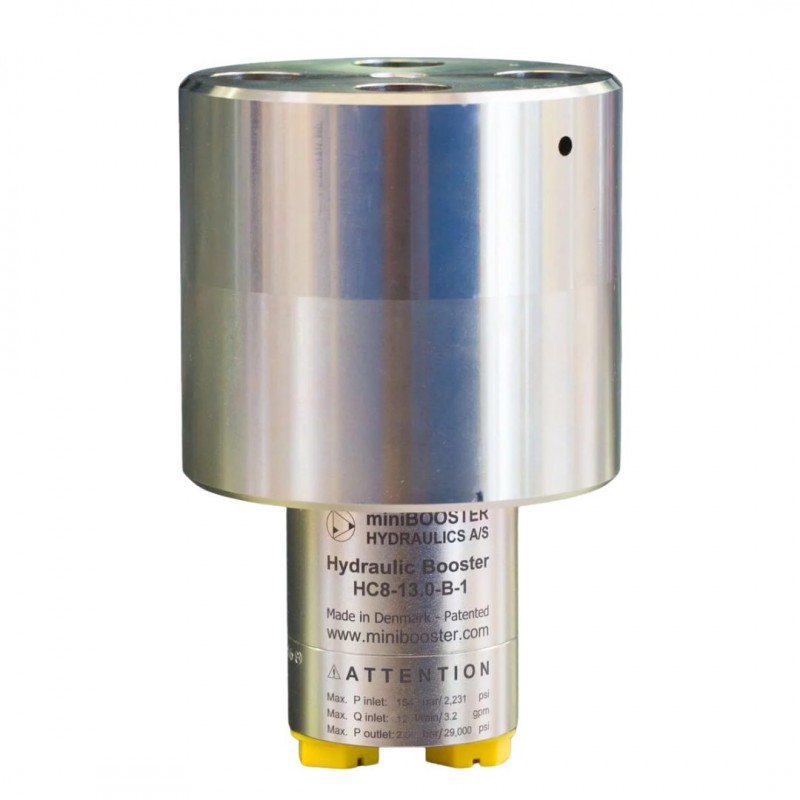

Minibooster HC8
The HC8 is developed for applications where intensified pressure up to 2,000 bar are required. Operating like the HC2, the HC8 is a unique, self-contained device which boosts inlet pressure up to a 20:1 factor without the use of an external power source.
In addition, the HC8 maintains high pressure by automatically compensating for consumption of oil on the high-pressure side. High pressure is directly proportional to inlet pressure. The HC8 is a compact unit weighing 4.5 kg. The HC8 works at inlet pressure from 20 to 207 bar. Higher pressure is available on special request.
The HC8 is developed for applications where intensified pressure up to 2,000 bar are required. Operating like the HC2, the HC8 is a unique, self-contained device which boosts inlet pressure up to a 20:1 factor without the use of an external power source.
In addition, the HC8 maintains high pressure by automatically compensating for consumption of oil on the high-pressure side. High pressure is directly proportional to inlet pressure. The HC8 is a compact unit weighing 4.5 kg. The HC8 works at inlet pressure from 20 to 207 bar. Higher pressure is available on special request.
HC8 versions: 10 different intensification factors
PIN: 20-207 bar
PH: 2,000 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 4.5 kg.
Model versions:
A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled
Material certificate 3.1 on request
