Bosch Rexroth Modular Plate Systems IH20

IH20 Series 1x

Modular plate systems IH20

  • Frame size A and B
  • Component series 1X
  • Maximum operating pressure 315 bar
  • Rated flow 50 l/min and 200 l/min

Description
Downloads

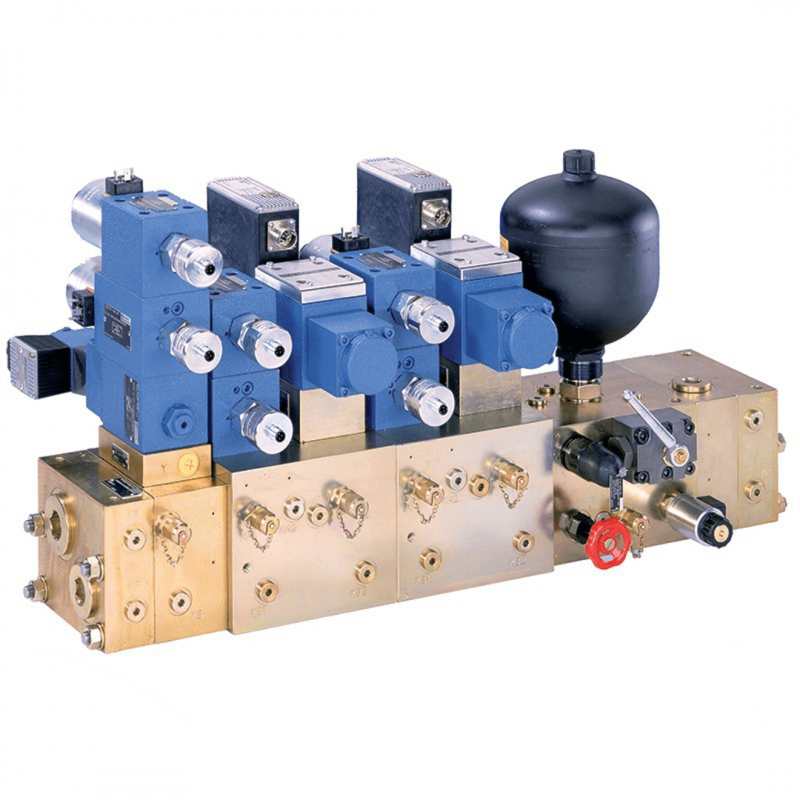

Bosch Rexroth Modular Plate Systems IH20

  • Frame size A and B
  • Component series 1X
  • Maximum operating pressure 315 bar
  • Rated flow 50 l/min and 200 l/min

Features:

  • Modular block system for set-up of controls in a com-pact construction, ready for connection
  • Different sizes of one frame size can be combined in any order
  • Pressure and tank ports for all control circuits on both front sides of the mounted IH20 stacking assemblies
  • Separate actuator ports A and B per control circuit
  • Functional elements such as valves or nozzles are not included
  • For detailed circuit diagrams and device lists of a complete IH20 stacking assembly see the respective order documentation
