IE3, ABAPG-V7 and ABHPG-V7
Motor-pump groups - IE3, for continuous operation S1
- Pump type: PV7
- Maximum operating pressure: 160 bar
- Maximum flow: 162.5 l/min
- Electric motor frame size: 90S ... 250M
- Efficiency class IE3
Description

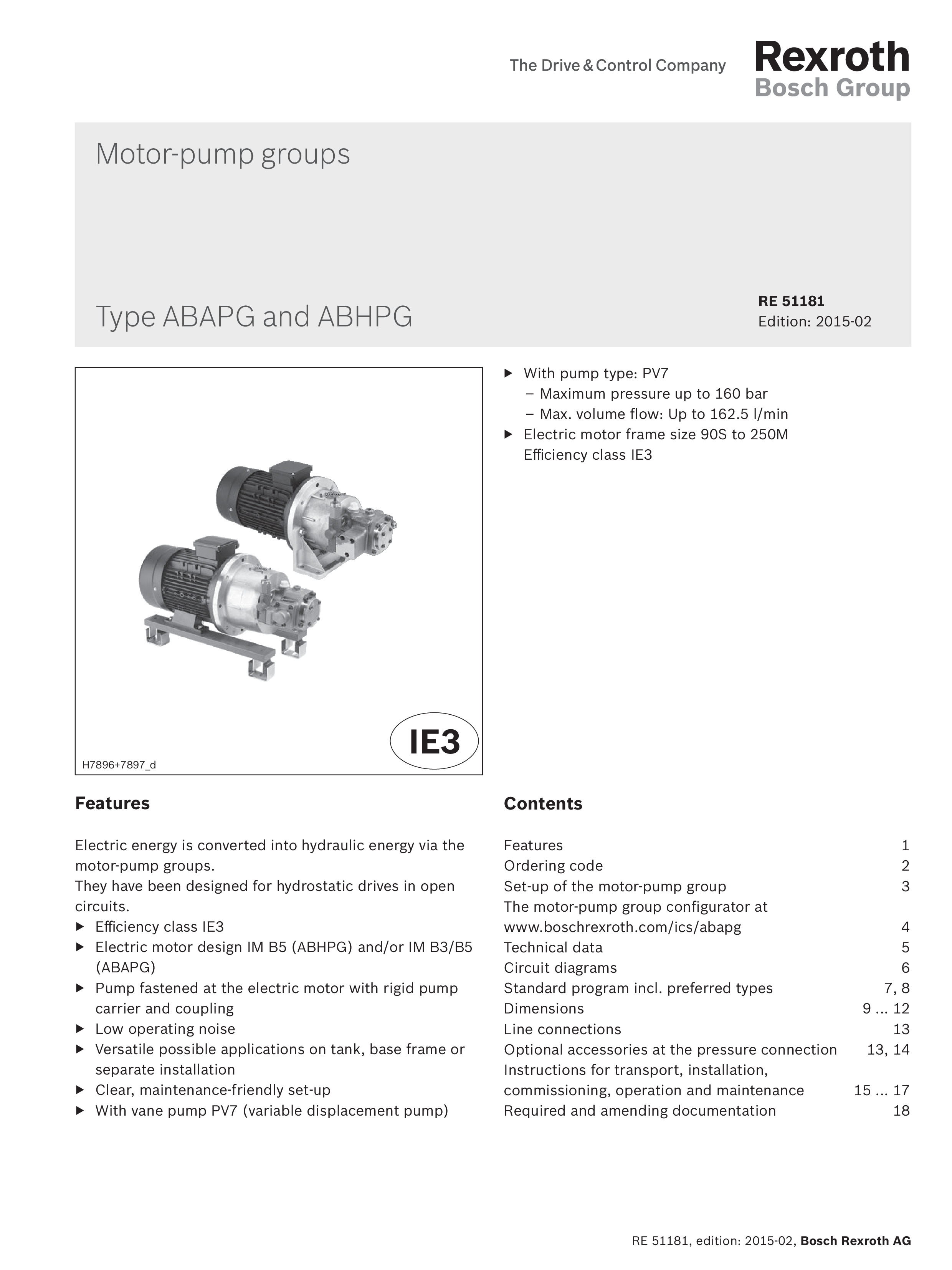

Downloads

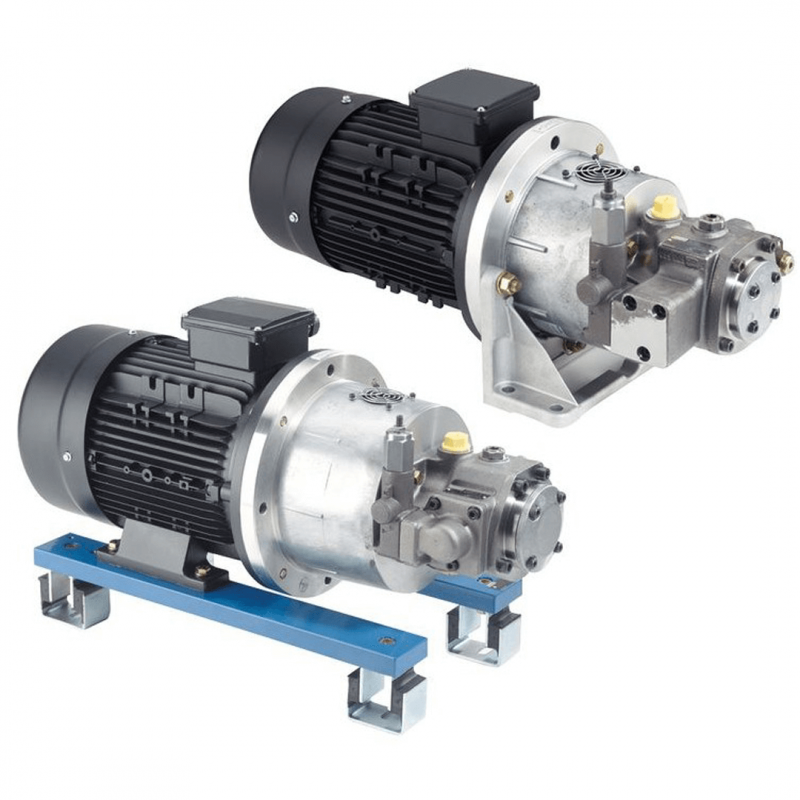

Bosch Rexroth Motor-pump Assemblies - IE3, ABAPG-V7 and ABHPG-V7
- Pump type: PV7
- Maximum operating pressure: 160 bar
- Maximum flow: 162.5 l/min
- Electric motor frame size: 90S ... 250M
- Efficiency class IE3
Features:
- For hydrostatic drives in the open circuit
- Electric motor design IM B5 (ABHPG) or IM B3/B5 (ABAPG)
- Pump fastened at the electric motor with rigid pump carrier and coupling
- Low operating noise
- Versatile possible applications on tank, base frame or separate installation
- Clear, maintenance-friendly set-up
- With vane pump PV7 (variable displacement pump)
