Multistation manifolds for controls ready for connection in vertical stacking design type HSR 10

HSR 10 Size 10 Series 15 & 35

Multistation manifolds for controls ready for connection in vertical stacking design type HSR 10

  • Size 10
  • Component series 15 and 35
  • Maximum operating pressure 315 (350) bar
  • 1 to 8 stations
Print page

Products
Downloads
Description
Part Number Material Number Number of Stations Position of Actuator Ports Price Add to Parts List
MULTISTATION MANI. 1HSR10-35/01C SO8 PH& MULTISTATIONMANI.1HSR10-35/01CSO8PH& R900815075 1 Stations Lateral £322.17
£386.60 Inc. VAT
MULTISTATION MANI. 2HSR10-15/01C PHOSPH& MULTISTATIONMANI.2HSR10-15/01CPHOSPH& R900154881 2 Stations Lateral £383.77
£460.52 Inc. VAT
MULTISTATION MANI. 2HSR10-35/01C SO8 PH& MULTISTATIONMANI.2HSR10-35/01CSO8PH& R900689383 2 Stations Lateral £451.60
£541.92 Inc. VAT
MULTISTATION MANI. 2HSR10-15/01D PHOSPH& MULTISTATIONMANI.2HSR10-15/01DPHOSPH& R900158686 2 Stations Bottom £234.84
£281.81 Inc. VAT
MULTISTATION MANI. 2HSR10-35/01C PHOSPH& MULTISTATIONMANI.2HSR10-35/01CPHOSPH& R900170962 2 Stations Lateral £368.26
£441.91 Inc. VAT
MULTISTATION MANI. 3HSR10-35/01C PHOSPH& MULTISTATIONMANI.3HSR10-35/01CPHOSPH& R900170963 3 Stations Lateral £524.27
£629.12 Inc. VAT
MULTISTATION MANI. 3HSR10-15/01D PHOSPH& MULTISTATIONMANI.3HSR10-15/01DPHOSPH& R900158687 3 Stations Bottom £385.18
£462.22 Inc. VAT
MULTISTATION MANI. 4HSR10-15/01D PHOSPH& MULTISTATIONMANI.4HSR10-15/01DPHOSPH& R900158688 4 Stations Bottom £566.69
£680.03 Inc. VAT
MULTISTATION MANI. 5HSR10-35/01D PHOSPH& MULTISTATIONMANI.5HSR10-35/01DPHOSPH& R900170970 5 Stations Bottom £1,109.95
£1,331.94 Inc. VAT

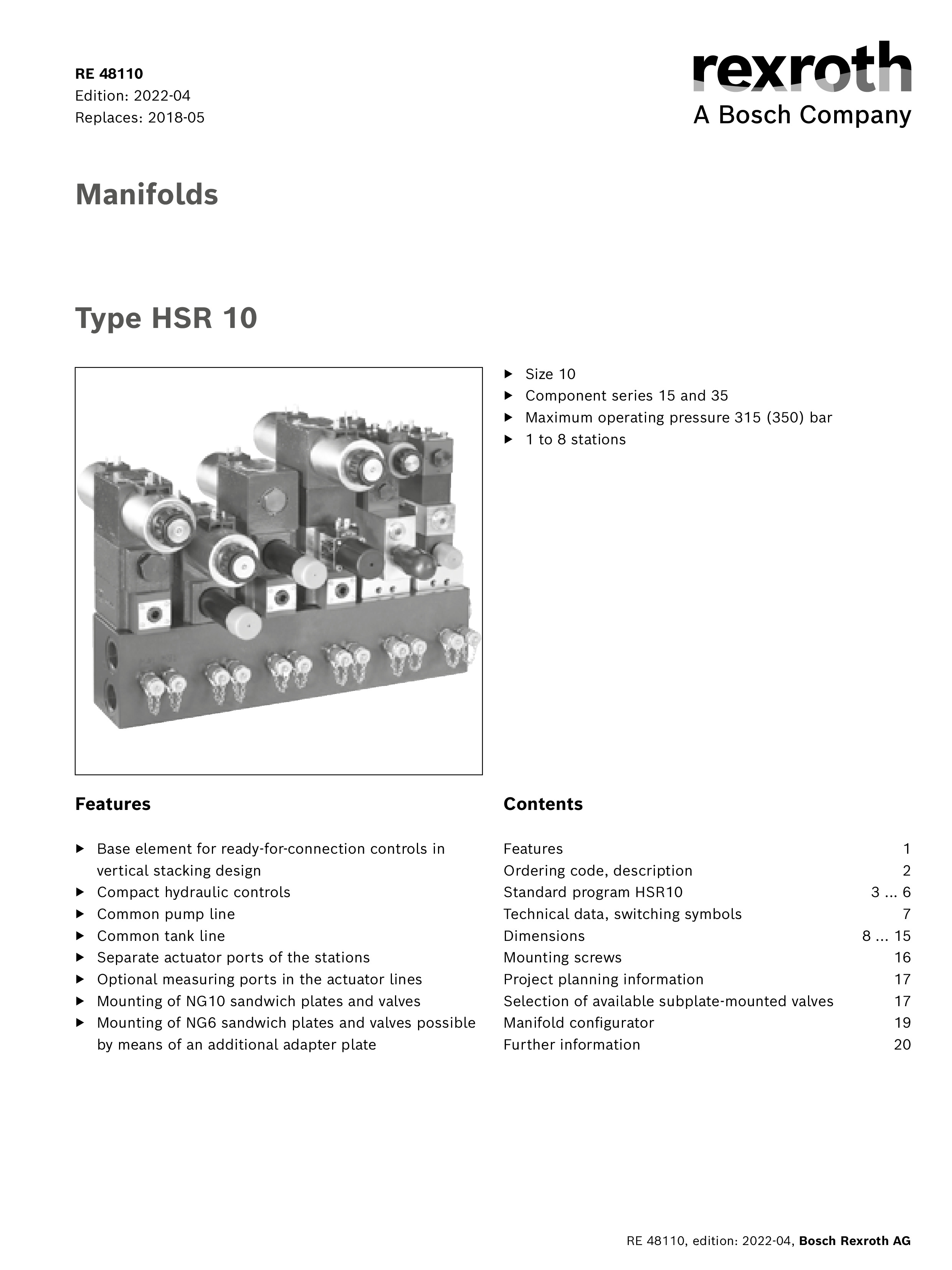

RE48110_2022-04

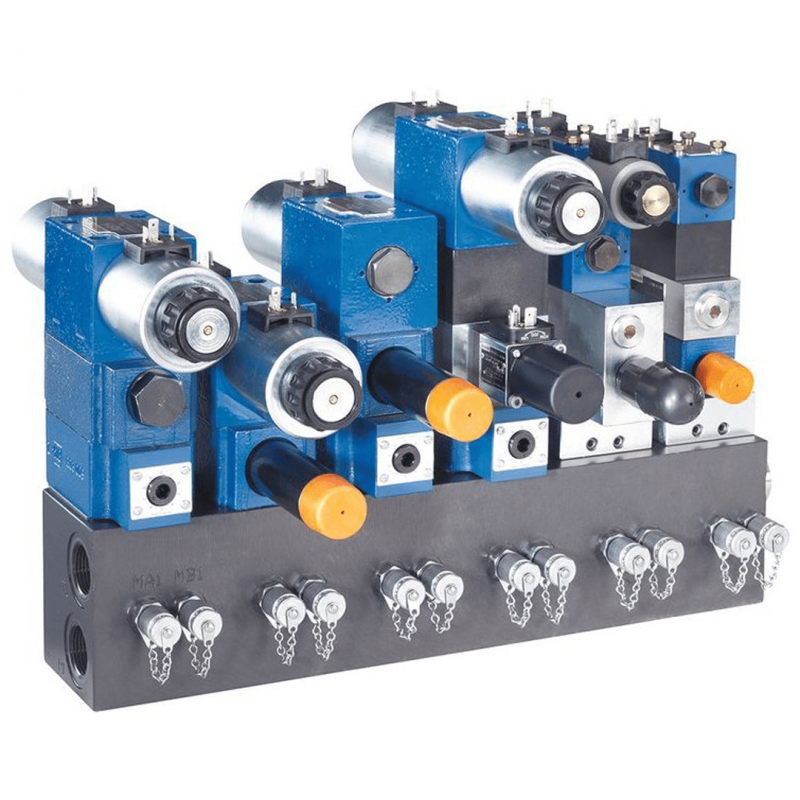

Bosch Rexroth Multistation Manifolds Type HSR 10

  • Size 10
  • Component series 15 and 35
  • Maximum operating pressure 315 (350) bar
  • 1 to 8 stations

Features:

  • Base element for ready-for-connection controls in vertical stacking design
  • Compact hydraulic controls
  • Common pump line
  • Common tank line
  • Separate actuator ports of the stations
  • Optional measuring ports in the actuator lines
  • Mounting of NG10 sandwich plates and valves
  • Mounting of NG6 sandwich plates and valves possible by means of an additional adapter plate
