HSR 06M & 10M Series 40

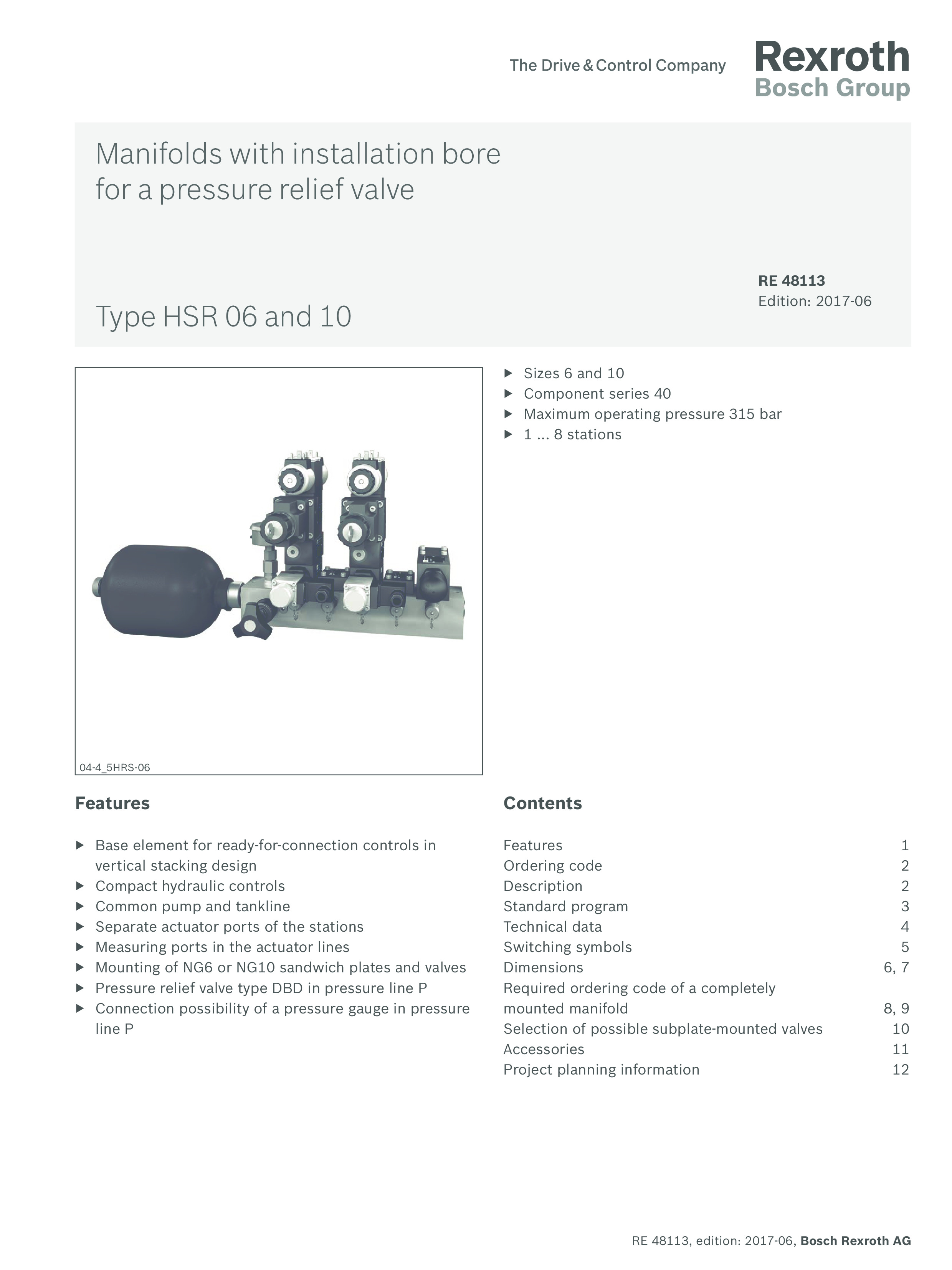

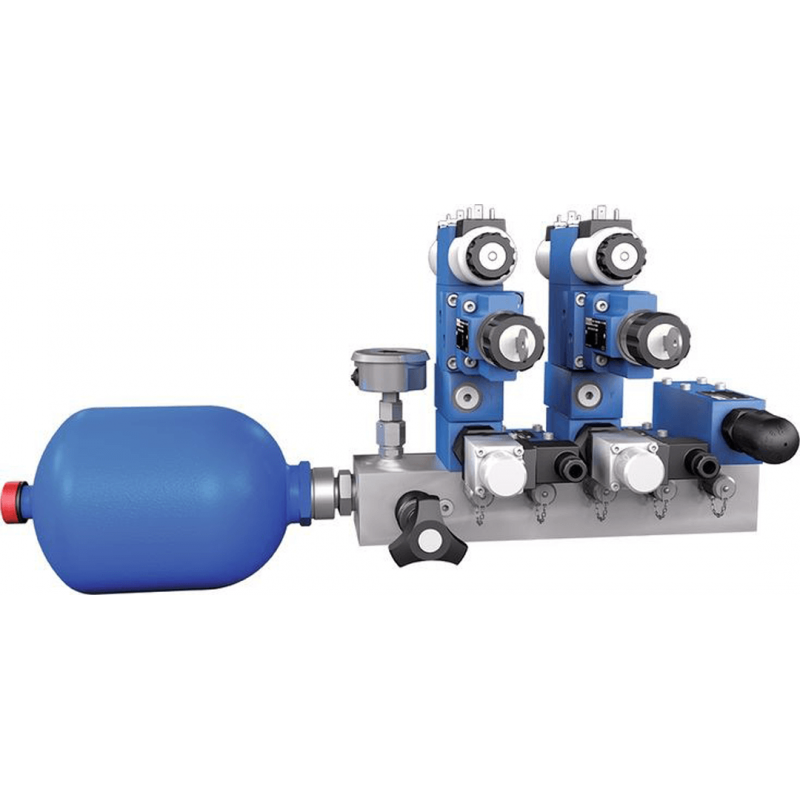

Bosch Rexroth Manifolds with Installation Bore for a Pressure Relief Valve HSR 06M & 10M Series 40

• Sizes 6 and 10
• Component series 40
• Maximum operating pressure 315 bar
• 1 ... 8 stations

Features:

• Base element for ready-for-connection controls in vertical stacking design
• Compact hydraulic controls
• Common pump and tankline
• Separate actuator ports of the stations
• Measuring ports in the actuator lines
• Mounting of NG6 or NG10 sandwich plates and valves
• Pressure relief valve type DBD in pressure line P
• Connection possibility of a pressure gauge in pressure line P
