Minibooster Type HC2P Hydraulic Intensifier

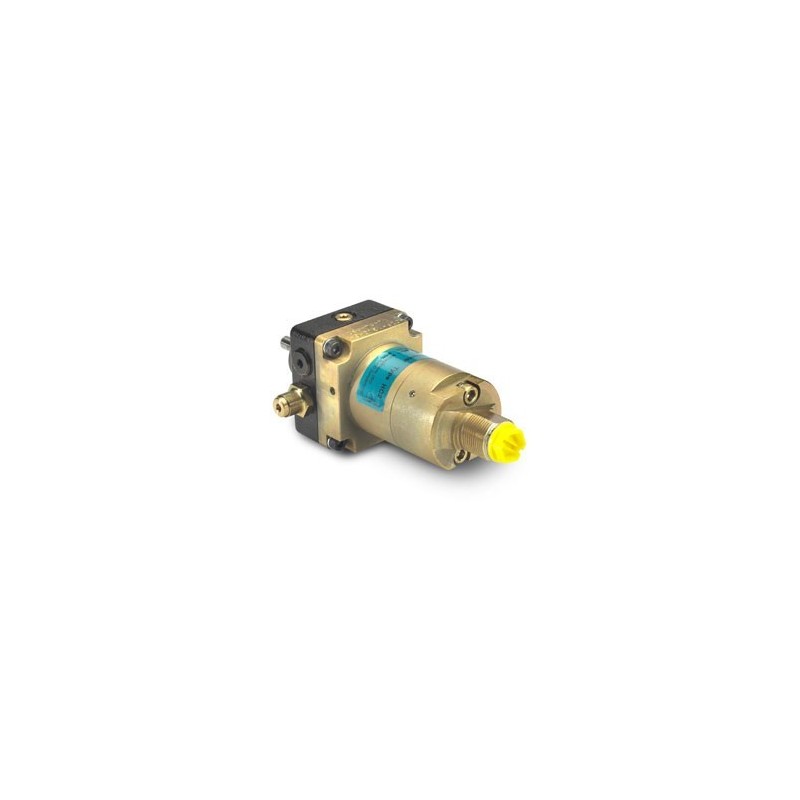

Minibooster HC2P

HC2P: 10 different intensification factors

  • PIN: 0.4 bar vacuum to 2 bar in suction line (inlet pressure)
  • PH: 800 bar maximum (outlet pressure)
  • POUTLET PH = (PIN - PReturn) i (intensification)
  • Mounting: Inline tube
  • Rotation speed: Minimum 1,200 min-1 / maximum 3,000 Min-1
  • Starting torque: Maximum starting torque 0.14 Nm
  • Power consumption: 87 W
Print page

Description
Downloads
HC2P
HC2P

Minibooster HC2P

Booster pump

Accessories: Pilot-operated dump valve available

A model = no dump valve

G model = direct proportionally controlled

Description:

The HC2P is a self priming Booster Pump supplying a pressure up to 800 bar. It is ideal for use in a variety of applications where no hydraulic system is available. The Booster Pump is a combination of a gear pump and the HC2 miniBOOSTER.
Like other miniBOOSTER models, the HC2P automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out on the low-pressure side (gear pump). Relative to its flow capability, the HC2P is a compact unit weighting only 2.1 kg

General Functions:

The basic operation is illustrated in the function diagram. From the suction inlet oil is drawn into the gear set of the pump, where the pressure is increased to approx. 40 bar and fed to the IN port of the booster, where it flows freely through the check valves RV, KV1 and KV2 to the high-pressure side H.

When end pressure is reached on the high-pressure side H, valves KV1 and KV2 will close. The end pressure will be achieved by the oscillating pump unit OP. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

When the pump is stopped, there will be no pressure on the IN-port and Pilot Supply 2, causing the RV to open allowing the fluid to return to the tank.

HC2P Function Diagram
