Minibooster HC3-I
HC3-I: 11 different intensification factors
- PIN: 20 - 207 bar (inlet pressure)
- PH: 500 bar maximum (outlet pressure)
- PRETURN: As low as possible (Return pressure to tank)
- Intensification ratios: PH = (PIN - PReturn) i (Intensification)
- Mounting: NG6 (D03) stacking manifold system
| Part Number | Material Number | Intensification Factor | Dump Valve | Price | Add to Parts List |
|---|---|---|---|---|---|
| HC3 - 1.2 - A - I | 1.2 | A | On Enquiry | ||
| HC3 - 1.2 - B - I | 1.2 | B | On Enquiry | ||
| HC3 - 1.2 - G - I | 1.2 | G | On Enquiry | ||
| HC3 - 1.5 - B - I | 1.5 | B | On Enquiry | ||
| HC3 - 1.5 - G - I | 1.5 | G | On Enquiry | ||
| HC3 - 1.5 - A - I | 1.5 | A | On Enquiry | ||
| HC3 - 2.0 - G - I | 2.0 | G | On Enquiry | ||
| HC3 - 2.0 - A - I | 2.0 | A | On Enquiry | ||
| HC3 - 2.0 - B - I | 2.0 | B | On Enquiry | ||
| HC3 - 2.8 - A - I | 2.8 | A | On Enquiry | ||
| HC3 - 2.8 - B - I | 2.8 | B | On Enquiry | ||
| HC3 - 2.8 - G - I | 2.8 | G | On Enquiry | ||
| HC3 - 3.2 - A - I | 3.2 | A | On Enquiry | ||
| HC3 - 3.2 - B - I | 3.2 | B | On Enquiry | ||
| HC3 - 3.2 - G - I | 3.2 | G | On Enquiry | ||
| HC3 - 4.0 - B - I | 4.0 | B | On Enquiry | ||
| HC3 - 4.0 - G - I | 4.0 | G | On Enquiry | ||
| HC3 - 4.0 - A - I | 4.0 | A | On Enquiry | ||
| HC3 - 5.0 - G - I | 5.0 | G | On Enquiry | ||
| HC3 - 5.0 - A - I | 5.0 | A | On Enquiry | ||
| HC3 - 5.0 - B - I | 5.0 | B | On Enquiry | ||
| HC3 - 6.6 - A - I | 6.6 | A | On Enquiry | ||
| HC3 - 6.6 - B - I | 6.6 | B | On Enquiry | ||
| HC3 - 6.6 - G - I | 6.6 | G | On Enquiry | ||
| HC3 - 9.0 - A - I | 9.0 | A | On Enquiry | ||
| HC3 - 9.0 - B - I | 9.0 | B | On Enquiry | ||
| HC3 - 9.0 - G - I | 9.0 | G | On Enquiry | ||
| HC3 - 13.0 - B - I | 13.0 | B | On Enquiry | ||
| HC3 - 13.0 - G - I | 13.0 | G | On Enquiry | ||
| HC3 - 13.0 - A - I | 13.0 | A | On Enquiry | ||
| HC3 - 20.0 - G - I | 20.0 | G | On Enquiry | ||
| HC3 - 20.0 - A - I | 20.0 | A | On Enquiry | ||
| HC3 - 20.0 - B - I | 20.0 | B | On Enquiry |
Minibooster HC3-I
Accessories: Pilot-operated dump valve available
A Model = Without Dump Valves
B Model = With Dump Valves
G Model = Direct Proportionally Controlled
Description:

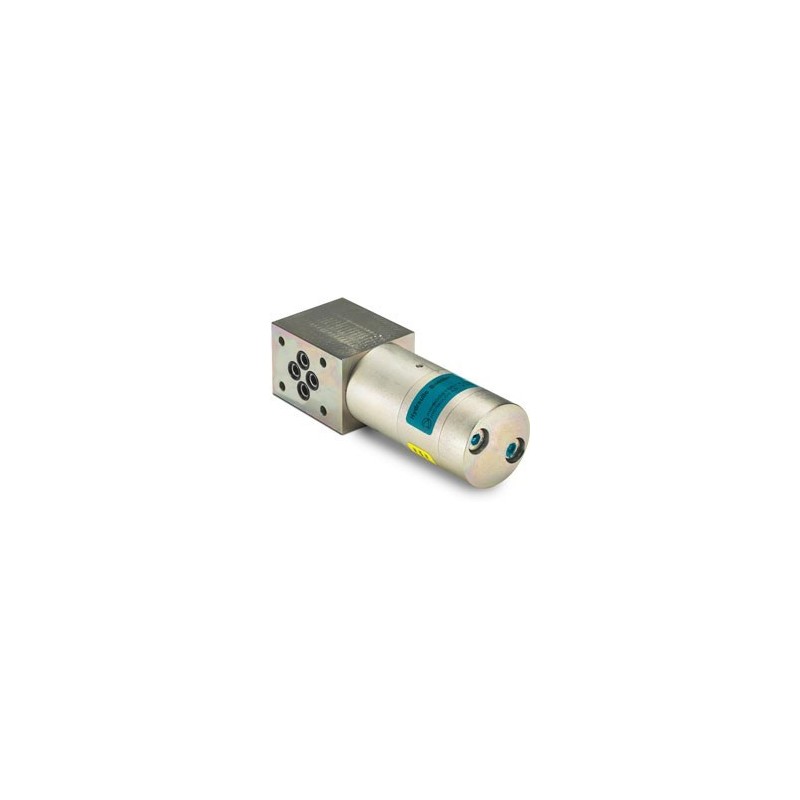

The HC3-I is a variant of the HC3 providing high-pressure on the B port. It is designed for use in NG6 (D03) stacking manifold systems. The unit is compact weighing only 3.5 kg.
The HC3 has the pilot-operated dump valve incorporated as a standard feature. Maximum outlet pressure is 500 bar in standard versions. Adjustments of the outlet pressure is carried out by varying the supplied pressure.
General Functions:
The basic operation is illustrated in the function diagram. The oil is fed through the connecting plate to the control valve to the IN port of the HC3 flowing freely through check valves KV1, KV2 and DV to the high-pressure side H.
From the high-pressure side H, oil is fed to port B on the connecting plate. In this condition maximum flow through the booster is achieved giving a fast-forward function. When pump pressure is reached on the high-pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.
