Minibooster HC7-U
HC7-U: 6 different intensification factors
- PIN: 20 – 207 bar (inlet pressure)
- PH: 2000 bar maximum (outlet pressure)
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PReturn) x i (intensification)
- Mounting: Inline tube
| Part Number | Material Number | Intensification Factor | Dump Valve | Connection | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| HC7 - 5.0 - G - 21U | 5.0 | G | 21U | On Enquiry | ||
| HC7 - 5.0 - B - 21U | 5.0 | B | 21U | On Enquiry | ||
| HC7 - 5.0 - A - 21U | 5.0 | A | 21U | On Enquiry | ||
| HC7 - 5.0 - G - 2U | 5.0 | G | 2U | On Enquiry | ||
| HC7 - 5.0 - B - 2U | 5.0 | B | 2U | On Enquiry | ||
| HC7 - 5.0 - G - 1U | 5.0 | G | 1U | On Enquiry | ||
| HC7 - 5.0 - B - 1U | 5.0 | B | 1U | On Enquiry | ||
| HC7 - 5.0 - G - 13U | 5.0 | G | 13U | On Enquiry | ||
| HC7 - 5.0 - B - 13U | 5.0 | B | 13U | On Enquiry | ||
| HC7 - 5.0 - A - 13U | 5.0 | A | 13U | On Enquiry | ||
| HC7 - 5.0 - G - 23U | 5.0 | G | 23U | On Enquiry | ||
| HC7 - 5.0 - B - 23U | 5.0 | B | 23U | On Enquiry | ||
| HC7 - 5.0 - A - 23U | 5.0 | A | 23U | On Enquiry | ||
| HC7 - 5.0 - G - 12U | 5.0 | G | 12U | On Enquiry | ||
| HC7 - 5.0 - B - 12U | 5.0 | B | 12U | On Enquiry | ||
| HC7 - 5.0 - A - 12U | 5.0 | A | 12U | On Enquiry | ||
| HC7 - 5.0 - G - 22U | 5.0 | G | 22U | On Enquiry | ||
| HC7 - 5.0 - B - 22U | 5.0 | B | 22U | On Enquiry | ||
| HC7 - 5.0 - A - 22U | 5.0 | A | 22U | On Enquiry | ||
| HC7 - 5.0 - G - 11U | 5.0 | G | 11U | On Enquiry | ||
| HC7 - 5.0 - B - 11U | 5.0 | B | 11U | On Enquiry | ||
| HC7 - 5.0 - A - 11U | 5.0 | A | 11U | On Enquiry | ||
| HC7 - 6.6 - A - 11U | 6.6 | A | 11U | On Enquiry | ||
| HC7 - 6.6 - G - 22U | 6.6 | G | 22U | On Enquiry | ||
| HC7 - 6.6 - B - 22U | 6.6 | B | 22U | On Enquiry | ||
| HC7 - 6.6 - A - 22U | 6.6 | A | 22U | On Enquiry | ||
| HC7 - 6.6 - G - 11U | 6.6 | G | 11U | On Enquiry | ||
| HC7 - 6.6 - B - 11U | 6.6 | B | 11U | On Enquiry | ||
| HC7 - 6.6 - G - 2U | 6.6 | G | 2U | On Enquiry | ||
| HC7 - 6.6 - B - 2U | 6.6 | B | 2U | On Enquiry | ||
| HC7 - 6.6 - G - 21U | 6.6 | G | 21U | On Enquiry | ||
| HC7 - 6.6 - B - 21U | 6.6 | B | 21U | On Enquiry | ||
| HC7 - 6.6 - A - 21U | 6.6 | A | 21U | On Enquiry | ||
| HC7 - 6.6 - G - 1U | 6.6 | G | 1U | On Enquiry | ||
| HC7 - 6.6 - B - 1U | 6.6 | B | 1U | On Enquiry | ||
| HC7 - 6.6 - G - 13U | 6.6 | G | 13U | On Enquiry | ||
| HC7 - 6.6 - B - 13U | 6.6 | B | 13U | On Enquiry | ||
| HC7 - 6.6 - A - 13U | 6.6 | A | 13U | On Enquiry | ||
| HC7 - 6.6 - G - 23U | 6.6 | G | 23U | On Enquiry | ||
| HC7 - 6.6 - B - 23U | 6.6 | B | 23U | On Enquiry | ||
| HC7 - 6.6 - A - 23U | 6.6 | A | 23U | On Enquiry | ||
| HC7 - 6.6 - G - 12U | 6.6 | G | 12U | On Enquiry | ||
| HC7 - 6.6 - B - 12U | 6.6 | B | 12U | On Enquiry | ||
| HC7 - 6.6 - A - 12U | 6.6 | A | 12U | On Enquiry | ||
| HC7 - 9.0 - G - 11U | 9.0 | G | 11U | On Enquiry | ||
| HC7 - 9.0 - B - 11U | 9.0 | B | 11U | On Enquiry | ||
| HC7 - 9.0 - A - 11U | 9.0 | A | 11U | On Enquiry | ||
| HC7 - 9.0 - G - 22U | 9.0 | G | 22U | On Enquiry | ||
| HC7 - 9.0 - B - 22U | 9.0 | B | 22U | On Enquiry | ||
| HC7 - 9.0 - A - 22U | 9.0 | A | 22U | On Enquiry | ||
| HC7 - 9.0 - G - 2U | 9.0 | G | 2U | On Enquiry | ||
| HC7 - 9.0 - B - 2U | 9.0 | B | 2U | On Enquiry | ||
| HC7 - 9.0 - G - 21U | 9.0 | G | 21U | On Enquiry | ||
| HC7 - 9.0 - B - 21U | 9.0 | B | 21U | On Enquiry | ||
| HC7 - 9.0 - A - 21U | 9.0 | A | 21U | On Enquiry | ||
| HC7 - 9.0 - G - 1U | 9.0 | G | 1U | On Enquiry | ||
| HC7 - 9.0 - B - 1U | 9.0 | B | 1U | On Enquiry | ||
| HC7 - 9.0 - G - 13U | 9.0 | G | 13U | On Enquiry | ||
| HC7 - 9.0 - B - 13U | 9.0 | B | 13U | On Enquiry | ||
| HC7 - 9.0 - A - 13U | 9.0 | A | 13U | On Enquiry | ||
| HC7 - 9.0 - A - 12U | 9.0 | A | 12U | On Enquiry | ||
| HC7 - 9.0 - G - 23U | 9.0 | G | 23U | On Enquiry | ||
| HC7 - 9.0 - B - 23U | 9.0 | B | 23U | On Enquiry | ||
| HC7 - 9.0 - A - 23U | 9.0 | A | 23U | On Enquiry | ||
| HC7 - 9.0 - G - 12U | 9.0 | G | 12U | On Enquiry | ||
| HC7 - 9.0 - B - 12U | 9.0 | B | 12U | On Enquiry | ||
| HC7 - 10.3 - G - 12U | 10.3 | G | 12U | On Enquiry | ||
| HC7 - 10.3 - B - 12U | 10.3 | B | 12U | On Enquiry | ||
| HC7 - 10.3 - A - 12U | 10.3 | A | 12U | On Enquiry | ||
| HC7 - 10.3 - G - 23U | 10.3 | G | 23U | On Enquiry | ||
| HC7 - 10.3 - B - 23U | 10.3 | B | 23U | On Enquiry | ||
| HC7 - 10.3 - A - 23U | 10.3 | A | 23U | On Enquiry | ||
| HC7 - 10.3 - G - 22U | 10.3 | G | 22U | On Enquiry | ||
| HC7 - 10.3 - B - 22U | 10.3 | B | 22U | On Enquiry | ||
| HC7 - 10.3 - A - 22U | 10.3 | A | 22U | On Enquiry | ||
| HC7 - 10.3 - G - 2U | 10.3 | G | 2U | On Enquiry | ||
| HC7 - 10.3 - B - 2U | 10.3 | B | 2U | On Enquiry | ||
| HC7 - 10.3 - G - 21U | 10.3 | G | 21U | On Enquiry | ||
| HC7 - 10.3 - B - 21U | 10.3 | B | 21U | On Enquiry | ||
| HC7 - 10.3 - A - 21U | 10.3 | A | 21U | On Enquiry | ||
| HC7 - 10.3 - G - 11U | 10.3 | G | 11U | On Enquiry | ||
| HC7 - 10.3 - B - 11U | 10.3 | B | 11U | On Enquiry | ||
| HC7 - 10.3 - A - 11U | 10.3 | A | 11U | On Enquiry | ||
| HC7 - 10.3 - B - 13U | 10.3 | B | 13U | On Enquiry | ||
| HC7 - 10.3 - A - 13U | 10.3 | A | 13U | On Enquiry | ||
| HC7 - 10.3 - G - 1U | 10.3 | G | 1U | On Enquiry | ||
| HC7 - 10.3 - B - 1U | 10.3 | B | 1U | On Enquiry | ||
| HC7 - 10.3 - G - 13U | 10.3 | G | 13U | On Enquiry | ||
| HC7 - 13.0 - G - 12U | 13.0 | G | 12U | On Enquiry | ||
| HC7 - 13.0 - B - 12U | 13.0 | B | 12U | On Enquiry | ||
| HC7 - 13.0 - A - 12U | 13.0 | A | 12U | On Enquiry | ||
| HC7 - 13.0 - G - 23U | 13.0 | G | 23U | On Enquiry | ||
| HC7 - 13.0 - B - 23U | 13.0 | B | 23U | On Enquiry | ||
| HC7 - 13.0 - A - 23U | 13.0 | A | 23U | On Enquiry | ||
| HC7 - 13.0 - G - 11U | 13.0 | G | 11U | On Enquiry | ||
| HC7 - 13.0 - B - 11U | 13.0 | B | 11U | On Enquiry | ||
| HC7 - 13.0 - A - 11U | 13.0 | A | 11U | On Enquiry | ||
| HC7 - 13.0 - G - 22U | 13.0 | G | 22U | On Enquiry | ||
| HC7 - 13.0 - B - 22U | 13.0 | B | 22U | On Enquiry | ||
| HC7 - 13.0 - A - 22U | 13.0 | A | 22U | On Enquiry | ||
| HC7 - 13.0 - B - 21U | 13.0 | B | 21U | On Enquiry | ||
| HC7 - 13.0 - A - 21U | 13.0 | A | 21U | On Enquiry | ||
| HC7 - 13.0 - G - 2U | 13.0 | G | 2U | On Enquiry | ||
| HC7 - 13.0 - B - 2U | 13.0 | B | 2U | On Enquiry | ||
| HC7 - 13.0 - G - 21U | 13.0 | G | 21U | On Enquiry | ||
| HC7 - 13.0 - G - 13U | 13.0 | G | 13U | On Enquiry | ||
| HC7 - 13.0 - B - 13U | 13.0 | B | 13U | On Enquiry | ||
| HC7 - 13.0 - A - 13U | 13.0 | A | 13U | On Enquiry | ||
| HC7 - 13.0 - G - 1U | 13.0 | G | 1U | On Enquiry | ||
| HC7 - 13.0 - B - 1U | 13.0 | B | 1U | On Enquiry | ||
| HC7 - 20.0 - G - 13U | 20.0 | G | 13U | On Enquiry | ||
| HC7 - 20.0 - B - 13U | 20.0 | B | 13U | On Enquiry | ||
| HC7 - 20.0 - A - 13U | 20.0 | A | 13U | On Enquiry | ||
| HC7 - 20.0 - G - 1U | 20.0 | G | 1U | On Enquiry | ||
| HC7 - 20.0 - B - 1U | 20.0 | B | 1U | On Enquiry | ||
| HC7 - 20.0 - G - 12U | 20.0 | G | 12U | On Enquiry | ||
| HC7 - 20.0 - B - 12U | 20.0 | B | 12U | On Enquiry | ||
| HC7 - 20.0 - A - 12U | 20.0 | A | 12U | On Enquiry | ||
| HC7 - 20.0 - G - 23U | 20.0 | G | 23U | On Enquiry | ||
| HC7 - 20.0 - B - 23U | 20.0 | B | 23U | On Enquiry | ||
| HC7 - 20.0 - A - 23U | 20.0 | A | 23U | On Enquiry | ||
| HC7 - 20.0 - B - 22U | 20.0 | B | 22U | On Enquiry | ||
| HC7 - 20.0 - A - 22U | 20.0 | A | 22U | On Enquiry | ||
| HC7 - 20.0 - G - 11U | 20.0 | G | 11U | On Enquiry | ||
| HC7 - 20.0 - B - 11U | 20.0 | B | 11U | On Enquiry | ||
| HC7 - 20.0 - A - 11U | 20.0 | A | 11U | On Enquiry | ||
| HC7 - 20.0 - G - 22U | 20.0 | G | 22U | On Enquiry | ||
| HC7 - 20.0 - G - 21U | 20.0 | G | 21U | On Enquiry | ||
| HC7 - 20.0 - B - 21U | 20.0 | B | 21U | On Enquiry | ||
| HC7 - 20.0 - A - 21U | 20.0 | A | 21U | On Enquiry | ||
| HC7 - 20.0 - G - 2U | 20.0 | G | 2U | On Enquiry | ||
| HC7 - 20.0 - B - 2U | 20.0 | B | 2U | On Enquiry |
Minibooster HC7-U
Accessories: Pilot-operated dump valve incorporated
B Model = With Dump Valves
G Model = Direct Proportionally Controlled
Material certificate on request.
HC7-U is designed for use with cylinders that have a weak spring return.
Description:

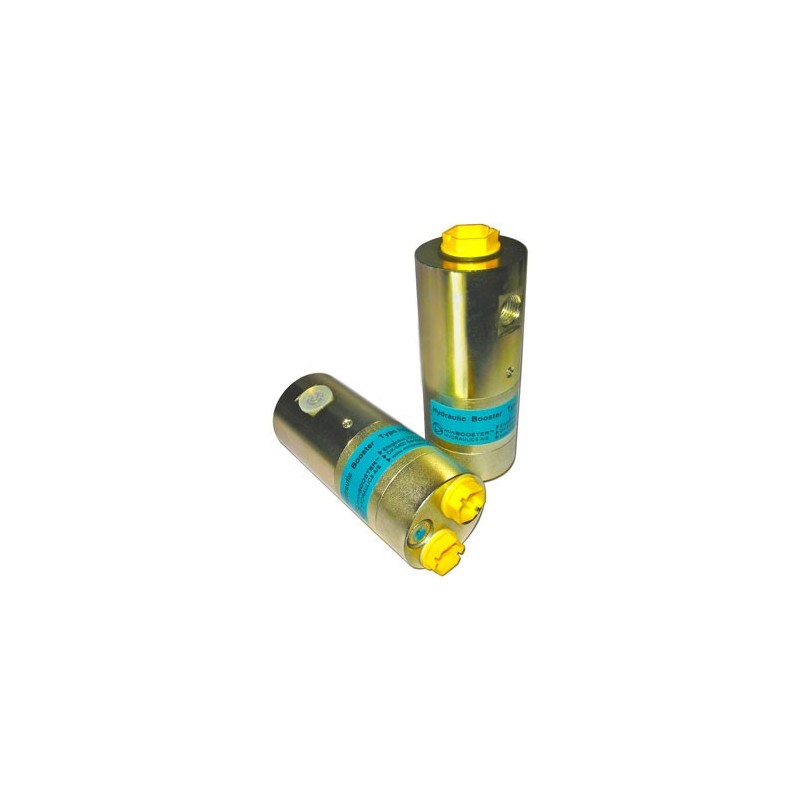

The HC7-U is a very compact high-pressure unit capable of delivering pressure up to 2,000 bar, weighing only 1.5 kg. It is ideal for use in portable applications like on power packs. Oil from the cylinder will be released directly via T-port to the tank, with a minimum back pressure.
The HC7-U raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high-pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.
General Functions:
The basic operation is illustrated in the function diagram. Oil is fed through the directional valve CV to the IN port, flowing freely through the check valves KV1, KV2 to the high-pressure side H. In this condition, maximum flow through the booster is achieved, giving a fast-forward function.
When pump pressure is reached on the high-pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.
