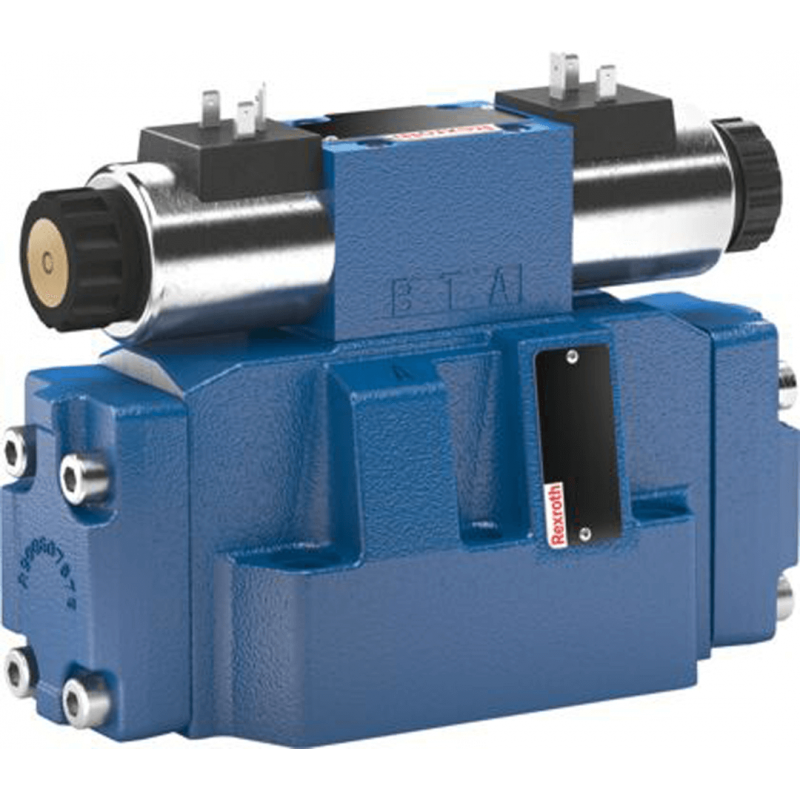

Directional Spool Valves with Electro-hydraulic Actuation WEH
Directional Spool Valves with Electro-hydraulic Actuation WEH
of
Directional Spool Valves with Electro-hydraulic Actuation WEH
Directional Spool Valves with Electro-hydraulic Actuation WEH

Directional Spool Valves with Electro-hydraulic Actuation WEH

Bosch Rexroth directional spool valves with multiple hydraulic actuation configurations WHE, WHH, WPH, WMMH, WMRH, WMUH, WMDH and WMDAH, pilot operated for subplate mounting (size 10...32)

  • Component series 4X, 6X, 7X
  • Maximum operating pressure 350 bar
  • Maximum flow 1100 l/min
  • For subplate mounting
  • Explosion-proof also available

Products
Downloads
Description
Part Number Material Number Spool Add to Parts List
R900924874 R900924874 4WEH 16 D7X/6EG24N9ETK4/B10 D
R900943462 R900943462 4WEH 10 D4X/6EG24N9ETK4/B10 D
R900952630 R900952630 4WEH 10 E4X/6EG24N9ETK4/B10 E
R900923971 R900923971 4WEH 16 E7X/6EG24N9ETK4/B10 E
R900929900 R900929900 4WEH 16 J7X/6EG24N9ETS2K4/B10 J
R900925580 R900925580 4WEH 16 J7X/6EG24N9K4 J
R900948924 R900948924 4WEH 10 J4X/6EG24N9ETK4/B10 J
R900930431 R900930431 4WEH 16 J7X/6EG24N9ETK4/B10 J

Bosch Rexroth Directional Spool Valves with Electro-hydraulic Actuation WEH

  • Component series 4X, 6X, 7X
  • Size 10...32
  • Maximum operating pressure 350 bar
  • Maximum flow 1100 l/min
  • For subplate mounting
  • Explosion-proof also available

Features:

  • Type of actuation: electro-hydraulic
  • For subplate mounting
  • Porting pattern according to ISO 4401 and NFPA T3.5.1 R2
  • 4/3-, 4/2- or 3/2-way version
  • Spring or pressure centering, spring end position or hydraulic end position
  • Wet-pin DC or AC solenoids, optional
  • Electrical connection as individual or central connection
  • Optional versions:
  • Manual override
  • Switching time adjustment
  • Preload valve in channel P of the main valve
  • Stroke setting and/or spool position monitoring

Configurations:

  • WEH - Pilot operated with electro/hydraulic actuation
  • WHH - Pilot operated with hydraulic/hydraulic actuation
  • WPH - Pilot operated with pneumatic/hydraulic actuation
  • WMMH - Pilot operated with hand lever/hydraulic actuation
  • WMRH - Pilot operated with roller plunger/hydraulic actuation
  • WMUH - Pilot operated with roller plunger (rotated by 90°)/hydraulic actuation
  • WMDH - Pilot operated with rotary knob/hydraulic actuation
  • WMDAH - Pilot operated with rotary knob (lockable)/ hydraulic actuation

General Function:

The valve type WEH is a directional spool valve with electro-hydraulic actuation. It controls the start, stop and direction of a flow.


Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can't find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959
