DB, DBW Size 10 to 32 Series 5x
Pilot operated pressure relief valves for block installation DB,DBW
- Size 10 ... 32
- Component series 5X
- Maximum operating pressure 350 bar
- Maximum flow 650 l/min
Products

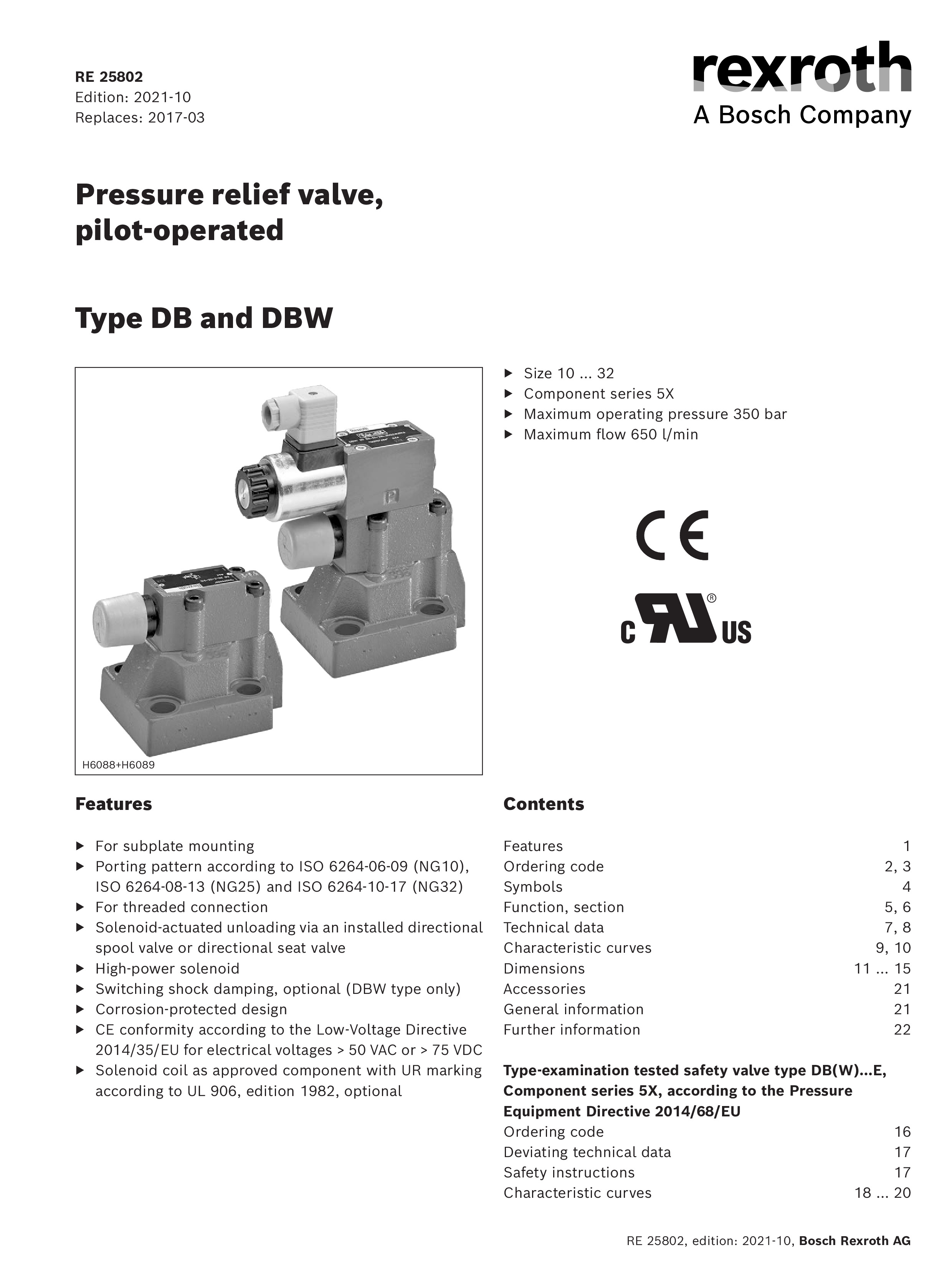

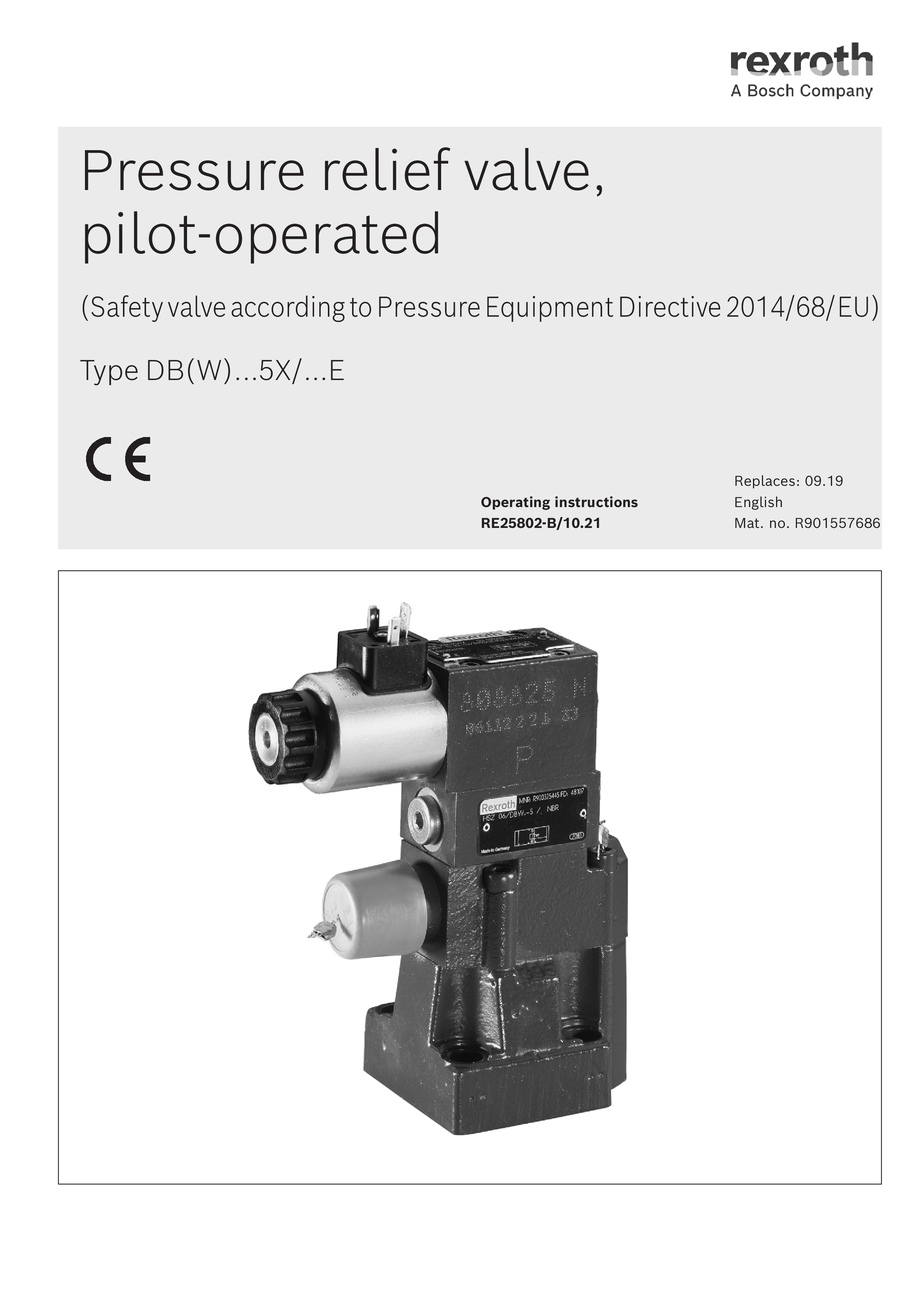

Downloads
Description
| Part Number | Material Number | Pressure Rating (bar) | Threaded connection | Price | Add to Parts List |
|---|---|---|---|---|---|
| DB 10-2-5X/200 | R900587772 | 200 bar | G1/2 | £688.65 £826.38 Inc. VAT |
|
| DB 20-2-5X/200 | R900590768 | 200 bar | G1 | £755.12 £906.14 Inc. VAT |
|
| DB 10-1-5X/200 | R900505052 | 200 bar | G1/2 | £688.65 £826.38 Inc. VAT |
|
| DB 20-1-5X/200 | R900502117 | 200 bar | G1 | £755.12 £906.14 Inc. VAT |
|
| DB 10-1-5X/315 | R900598998 | 315 bar | G1/2 | £688.65 £826.38 Inc. VAT |
|
| DB 20-1-5X/315 | R900587346 | 315 bar | G1 | £755.12 £906.14 Inc. VAT |
|
| DB 30-1-5X/315 | R900593795 | 315 bar | G1 1/2 | £987.80 £1,185.36 Inc. VAT |
|
| DB 20-2-5X/315 | R900593530 | 315 bar | G1 | £755.12 £906.14 Inc. VAT |
|
| DB 10-2-5X/315 | R900590334 | 315 bar | G1/2 | £688.65 £826.38 Inc. VAT |
|

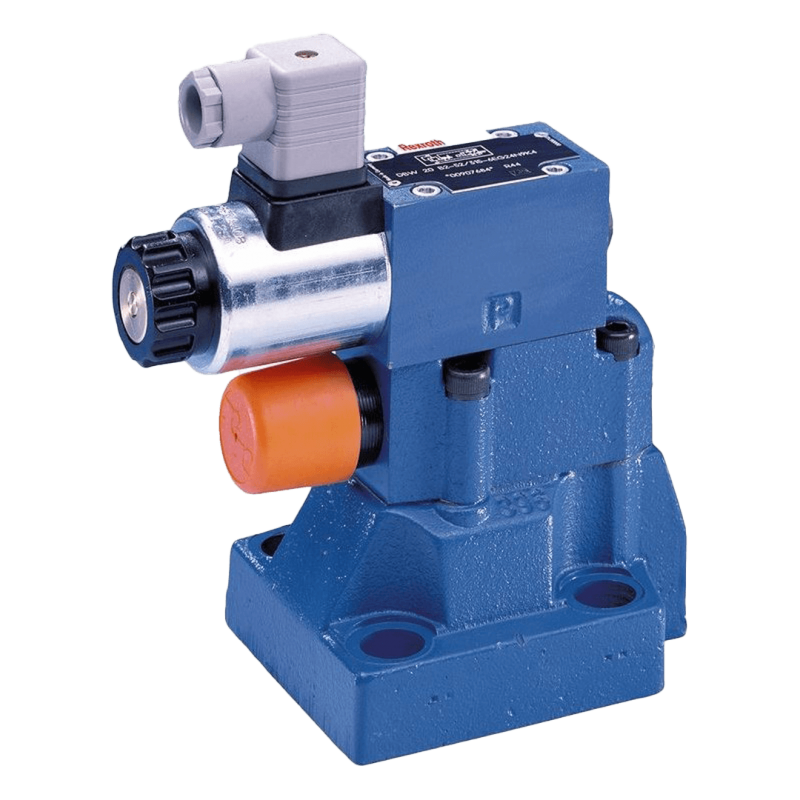

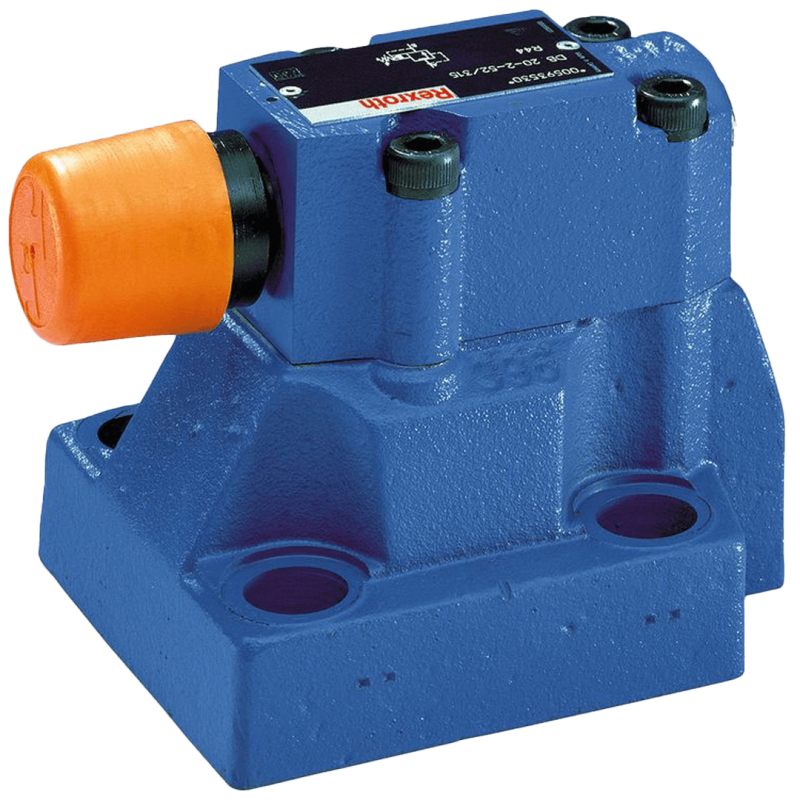

Bosch Rexroth Pilot Operated Pressure Relief Valves Type DB,DBW
- Size 10 ... 32
- Component series 5X
- Maximum operating pressure 350 bar
- Maximum flow 650 l/min
Features:
- For sub plate mounting
- Porting pattern according to ISO 6264-06-09 (NG10), ISO 6264-08-13 (NG25) and ISO 6264-10-17 (NG32)
- For threaded connection
- Solenoid-actuated unloading via an installed directional spool valve or directional seat valve
- High-power solenoid
- Switching shock damping, optional (DBW type only)
- Corrosion-protected design
- CE conformity according to the Low-Voltage Directive 2014/35/EU for electrical voltages > 50 VAC or > 75 VDC
- Solenoid coil as approved component with UR marking according to UL 906, edition 1982, optional
