DB 52 & DBW 52 Size 52 Series 3x
Pilot operated pressure relief valve for flange connection DB 52 & DBW 52
- Size 52
- Component series 3X
- Maximum operating pressure 315 bar
- Maximum flow 2,000 l/min
Description

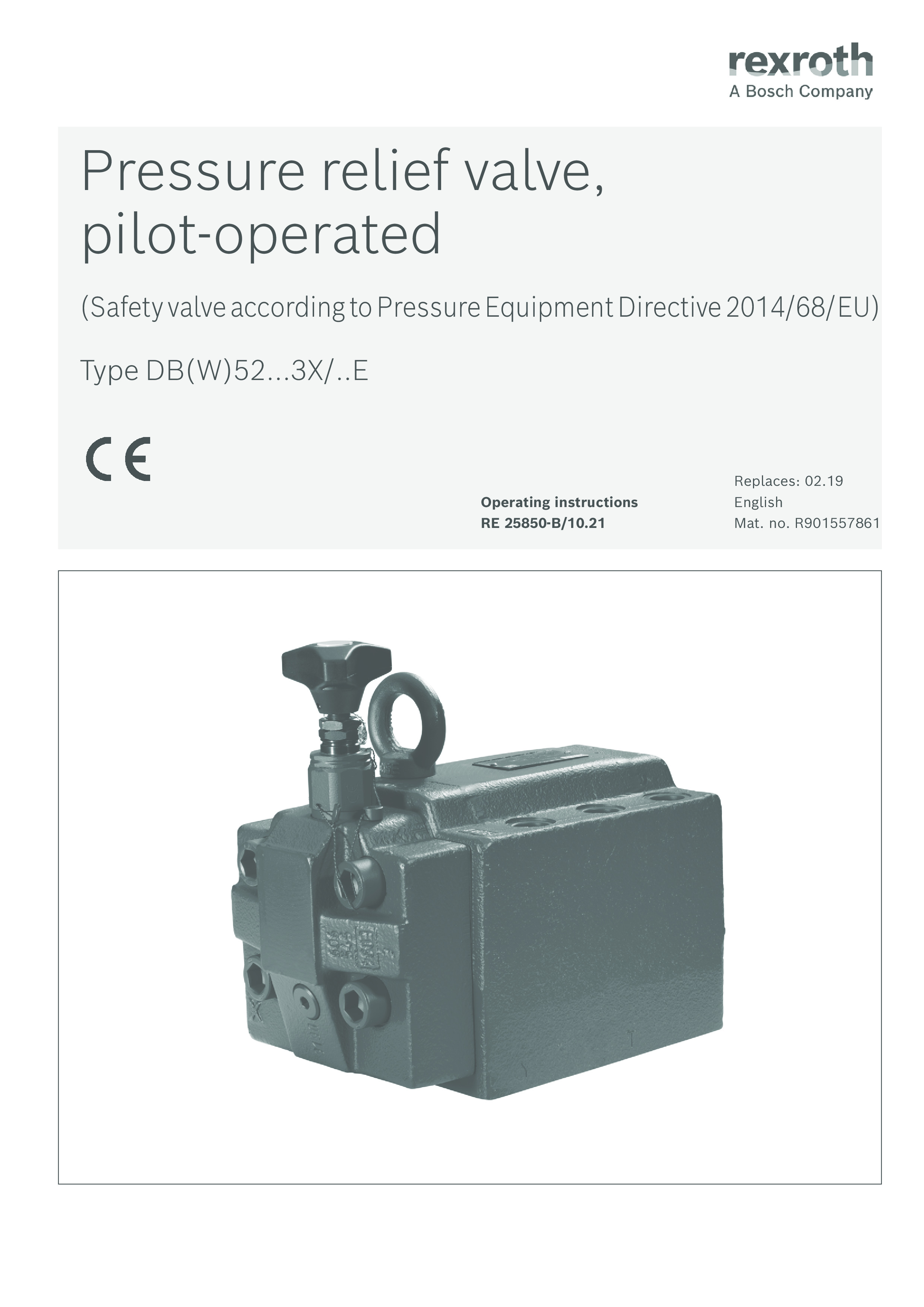

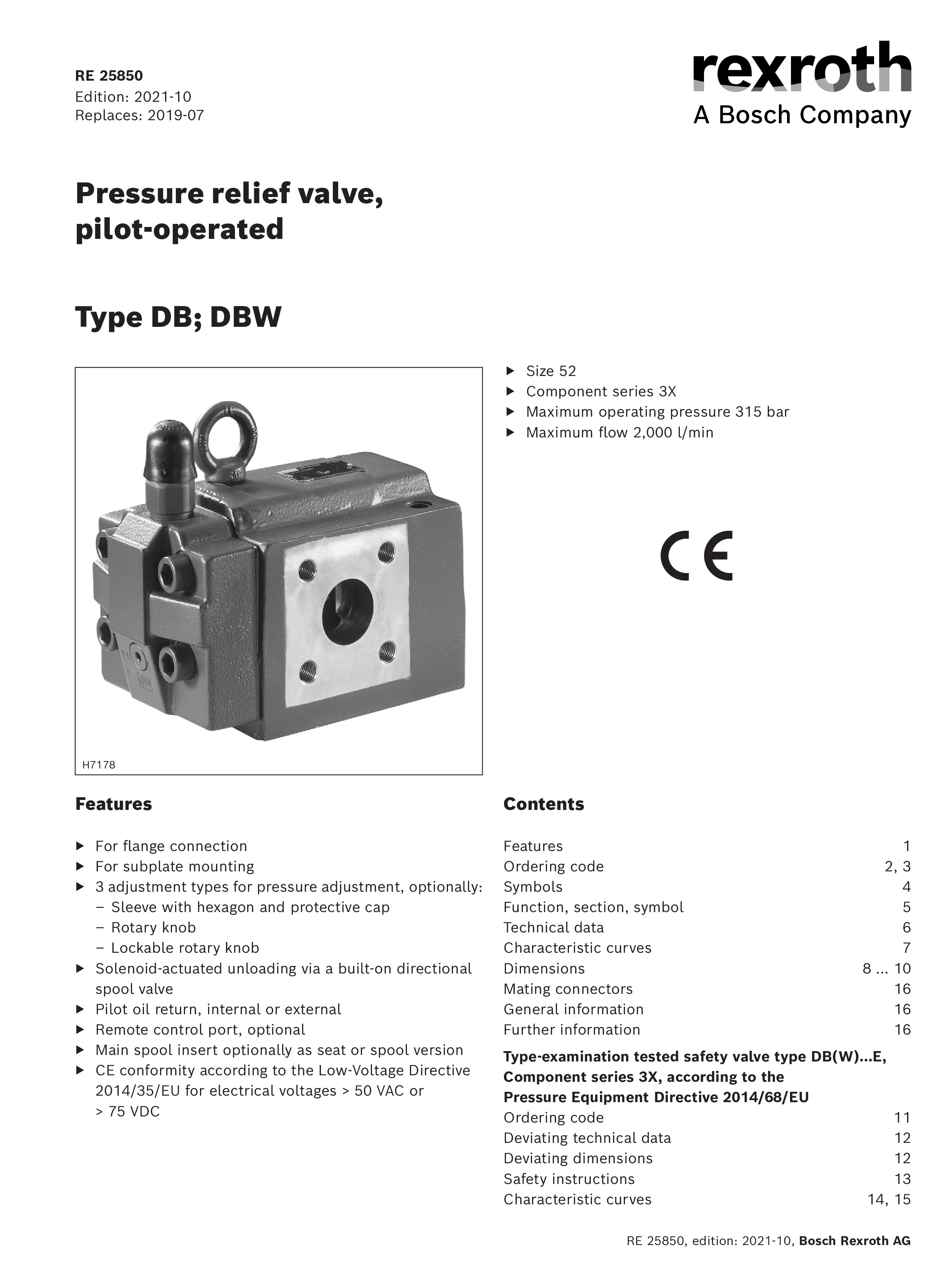

Downloads

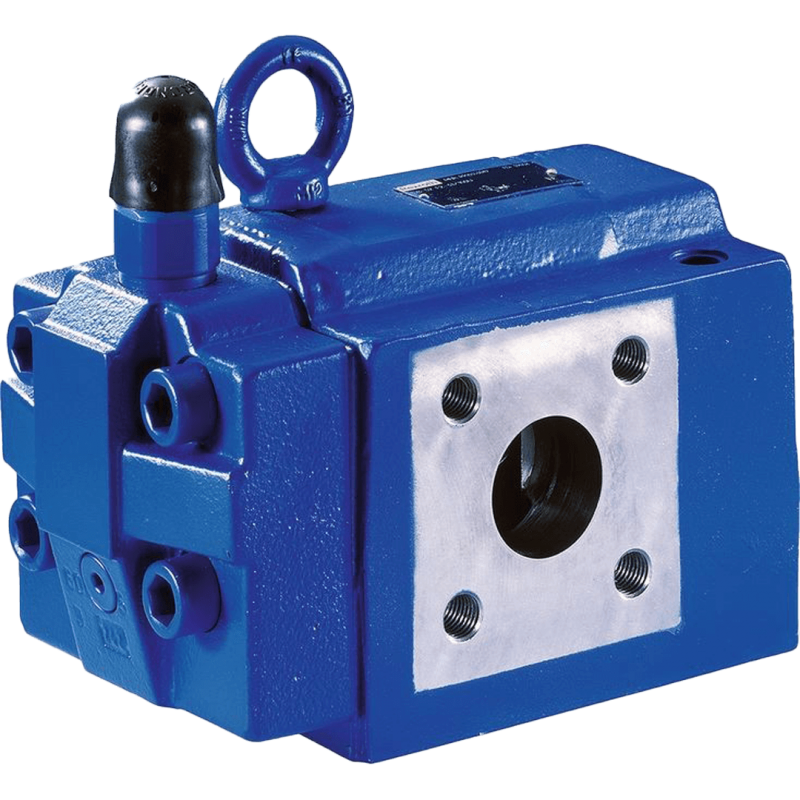

Bosch Rexroth Pilot Operated Pressure Relief Valve DB 52 & DBW 52
- Size 52
- Component series 3X
- Maximum operating pressure 315 bar
- Maximum flow 2,000 l/min
Features:
- For flange connection
- For subplate mounting
- 3 pressure adjustment elements optional:
- Sleeve with hexagon and protective cap
- Rotary knob
- Lockable rotary knob - Solenoid-actuated unloading via a built-on directional spool valve
- Pilot oil return, internal or external
- Remote control port, optional
- Main spool insert optionally as seat or spool version
- CE conformity according to the Low-Voltage Directive 2014/35/EU for electrical voltages > 50 VAC or > 75 VDC
