3DR 10P Size 10 Series 6x

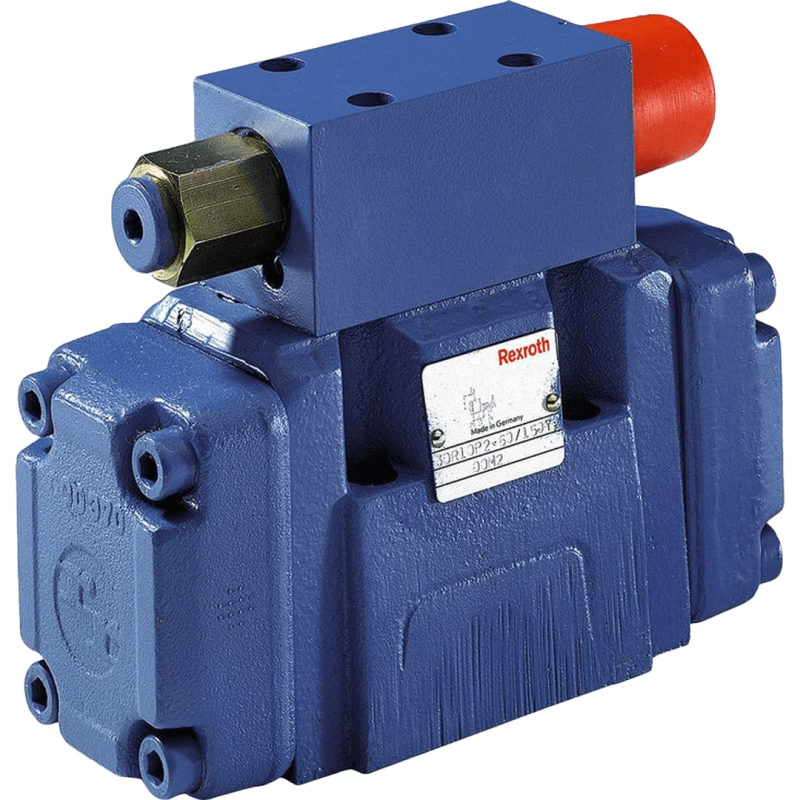

Bosch Rexroth Pilot Operated 3-way Pressure Reducing Valves 3DR 10P

• Nominal size 10
• Series 6X
• Maximum operating pressure 315 bar
• Maximum flow 120 L/min

Features:

• Valve for the reduction (P to A) and limitation (A to T) of a pressure in a hydraulic system
• For sub-plate mounting, porting pattern DIN 24 340 form A, ISO 4401 and CETOP-RP 121 H, sub-plates to catalogue sheet RE 45 054 (separate order)
• 4 pressure stages
• 4 adjustment elements:
  - rotary knob
  - sleeve with hexagon and protective cap
  - lockable rotary knob with scale
  - rotary knob with scale
