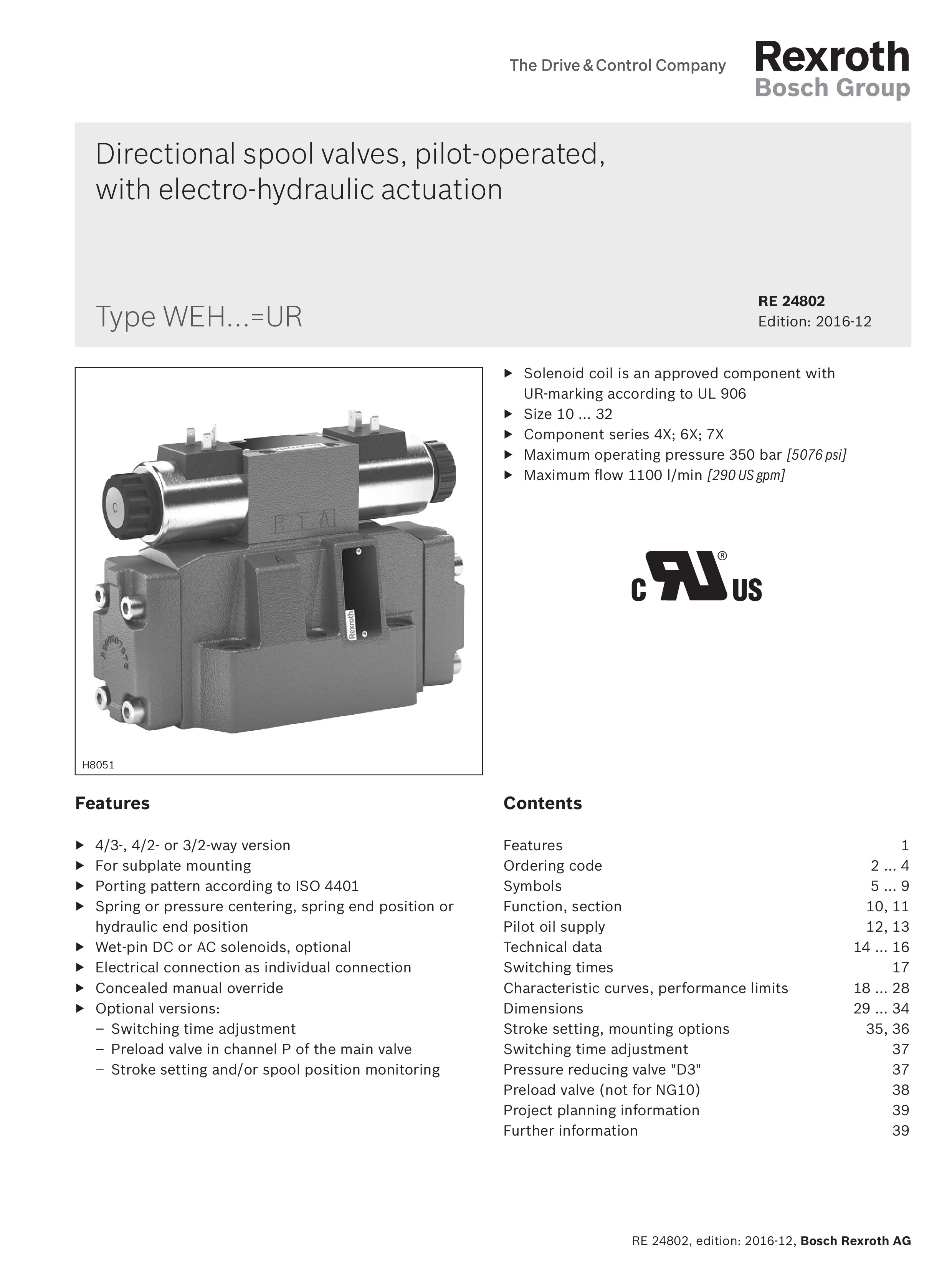

WEH…UR Size 10 to 32

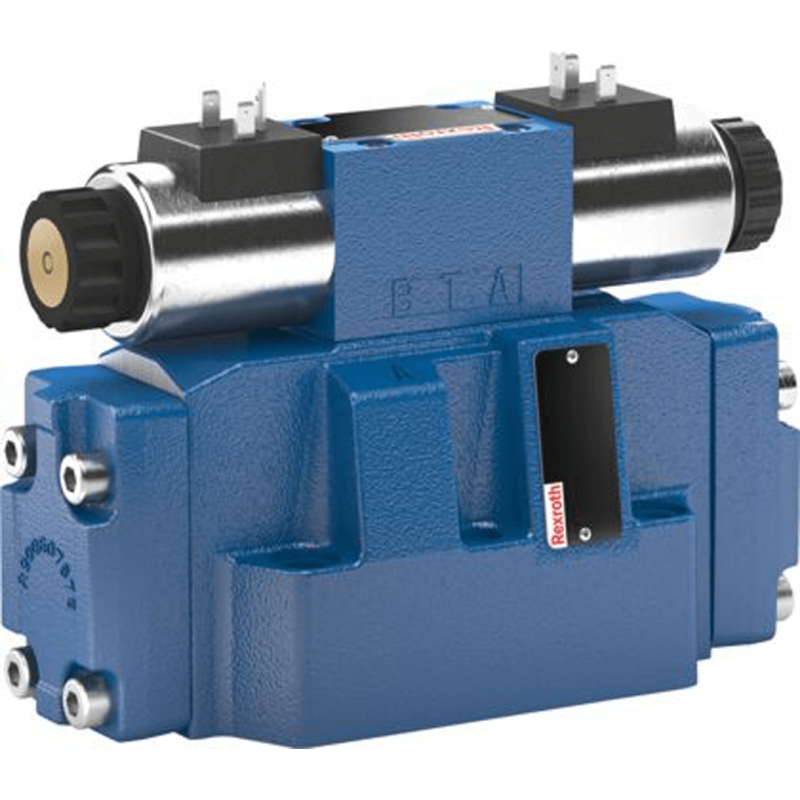

Bosch Rexroth Directional Spool Valves, Pilot-operated with Electro-hydraulic Actuation type WEH…UR 10cc to 32cc

• Solenoid coil is an approved component with UR-marking according to UL 906
• Size 10 … 32
• Component series 4X; 6X; 7X
• Maximum operating pressure 350 bar [5076 psi]
• Maximum flow 1100 l/min [290 US gpm]

Features:

• 4/3-, 4/2- or 3/2-way version
• For sub plate mounting
• Porting pattern according to ISO 4401
• Spring or pressure centering, spring end position or hydraulic end position
• Wet-pin DC or AC solenoids, optional
• Electrical connection as individual connection
• Concealed manual override
• Optional versions:
  - Switching time adjustment
  - Preload valve in channel P of the main valve
  - Stroke setting and/or spool position monitoring
