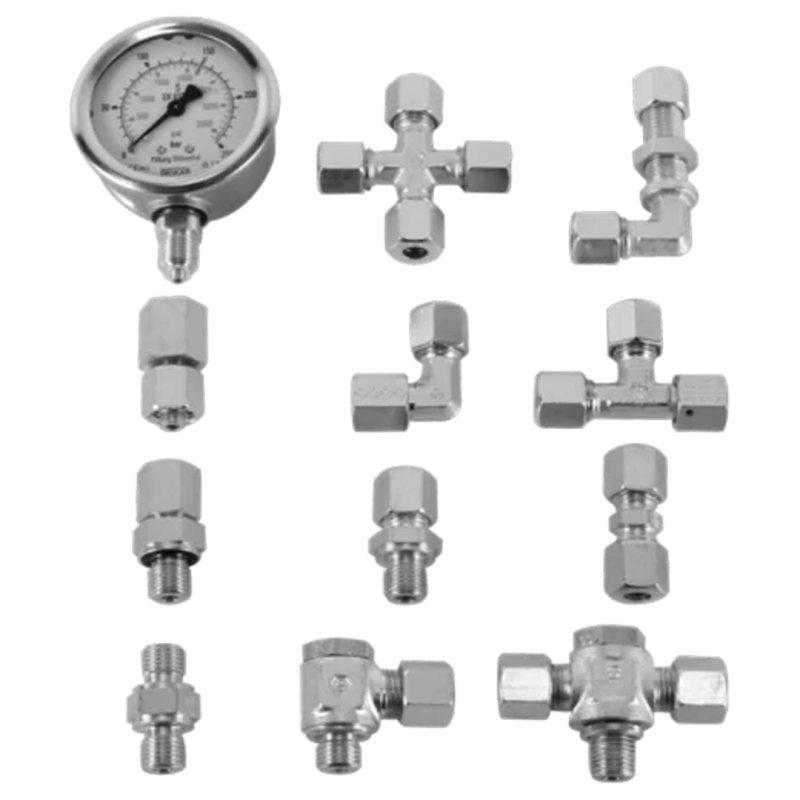

Cutting Ring Unions as per DIN 2353

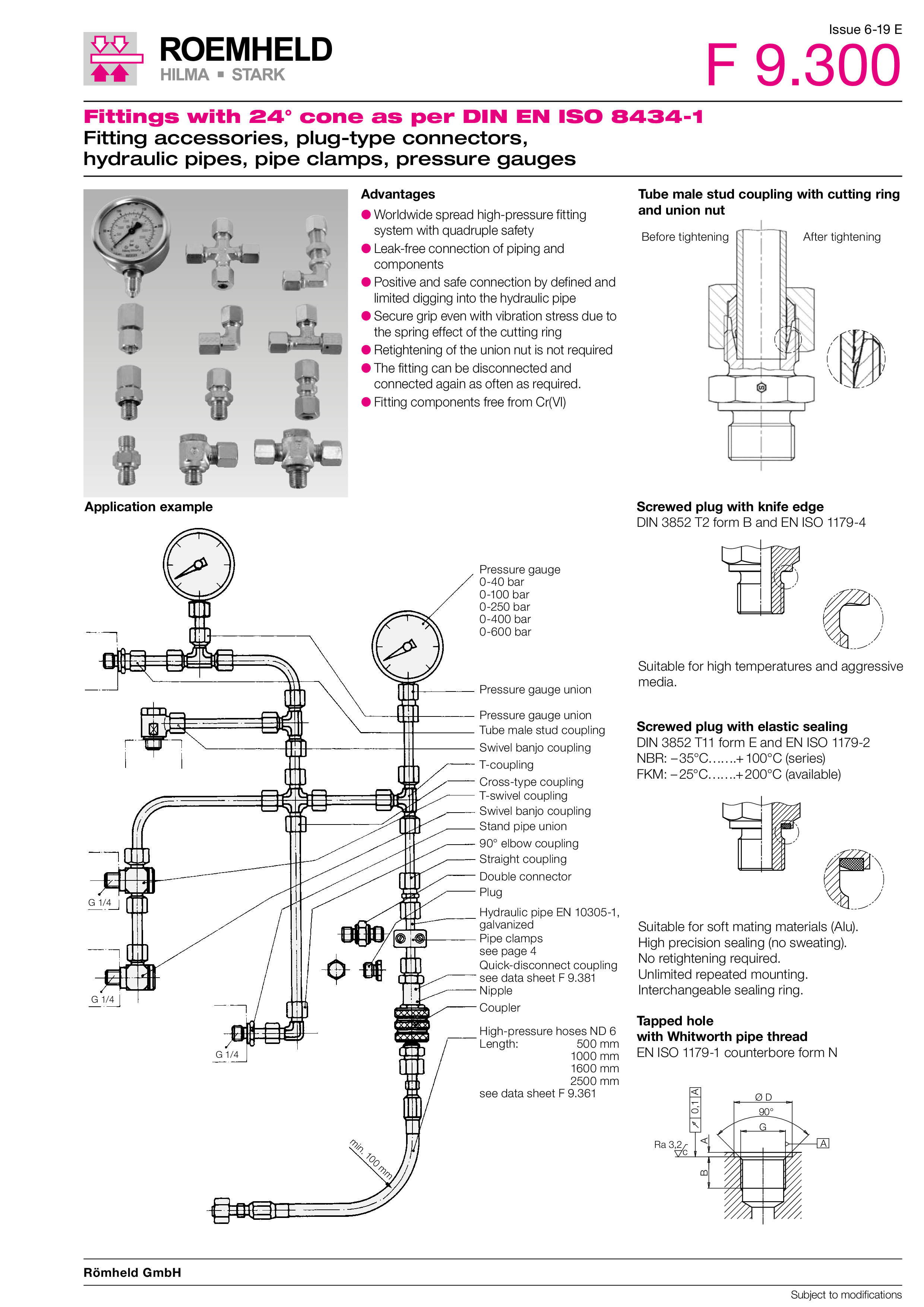

Cutting Ring Unions as per DIN 2353 - ROEMHELD F9.300

• Fittings: ø6 - ø16 mm, G1/8 - G 1/2
• Hydraulic pipes: ø8 - ø15 mm
• Hydraulic oil: HLP22 - 46, Oemeta HF-Du
• Pressure gauges: 0-40 - 600 bar
• Plug-in connectors: ND5
• Max. operating pressure:250 - 500 bar

Fittings with 24° cone as per DIN EN ISO 8434-1

Fitting accessories, plug-type connectors, hydraulic pipes, pipe clamps, pressure gauges.

Advantages:

• Worldwide spread high-pressure fitting system with quadruple safety
• Leak-free connection of piping and components
• Positive and safe connection by defined and limited digging into the hydraulic pipe
• Secure grip even with vibration stress due to the spring effect of the cutting ring
• Retightening of the union nut is not required
• The fitting can be disconnected and connected again as often as required.
• Fitting components free from Cr(VI)
