Minibooster Hydraulic Power Pack PP-HC7-12XX series

Hydraulic Power Pack PP-HC7-12XX series. Pressure up to 3,000 bar

Print page

Description
Downloads
PP- HC7-12XX series
PP-HC7-12XX

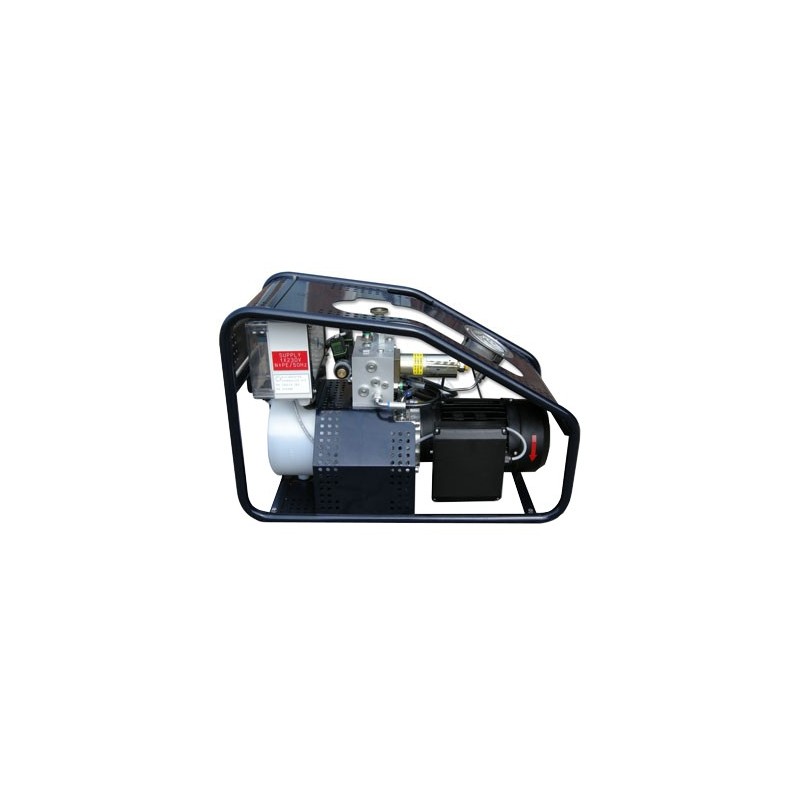

Minibooster Hydraulic Power Pack PP-HC7-12XX series

  • PP-HC7-12XX series
  • Pressure up to 3,000 bar

The PP-HC7 Tower series offers a compact high pressure pump in a rugged steel frame. Reliability is our primary design consideration which is why the units are equipped with a Pilot controlled Check Valve which leads return oil directly to the tank with a minimum pressure drop, plus 2 off 10 micron filters with a visual indicator and an hour meter for sheduled maintenance. The pressure is easily adjusted on the pressure control knob and can be accurately read on the large 4" - 1% gauge.

Noise is of no concern as it offers a very quiet operation with only 64dB(A). The slim design and lifting hook allows easy handling of the unit inside narrow spaces like turbine towers.

Dimensions:

  • Height 457 mm
  • Length 692 mm
  • Width 367 mm
  • Weight 50 kg

The system is adjusted and tested. Documentation is made in accordance with the EU Machine Directive.

Applications:

Bolt Tensioners - Nut Splitters - Torque Wrenches - Workholding - Hydraulic Tools - Rescue Tools - Railroad Equipment - Test Stands.

PP-HC7-12XX series Functions Diagram

Specification:

  • 1 pcs. pump 2.5 cm2/r ~ 3.5 l/min. max. 165 bar
  • 1 pcs. HC7 Minibooster
  • 1 pcs. electrical motor 1.5 KW
  • 1 pcs. electrical control panel
  • 1 pcs. manifold block for valves
  • 2 pcs. pressure relief valves
  • 1 pcs. oil tank volume 4.5 litres to max. line (volume between min. and max. level is 2.0 litres)
  • 1 pcs. remote control with 5 m cable
  • 1 pcs. 4/3 directional solenoid valve
  • 2 pcs. pressure filter 10 µ
  • 1 pcs. 4” high pressure gauge

Motor Options:

  • 115V 60 Hz (UL approved parts)
  • 230V 50Hz
  • 230V 60 Hz (UL approved parts)
  • 3 x 400V 50Hz
