Power Units - ROEMHELD D8.013

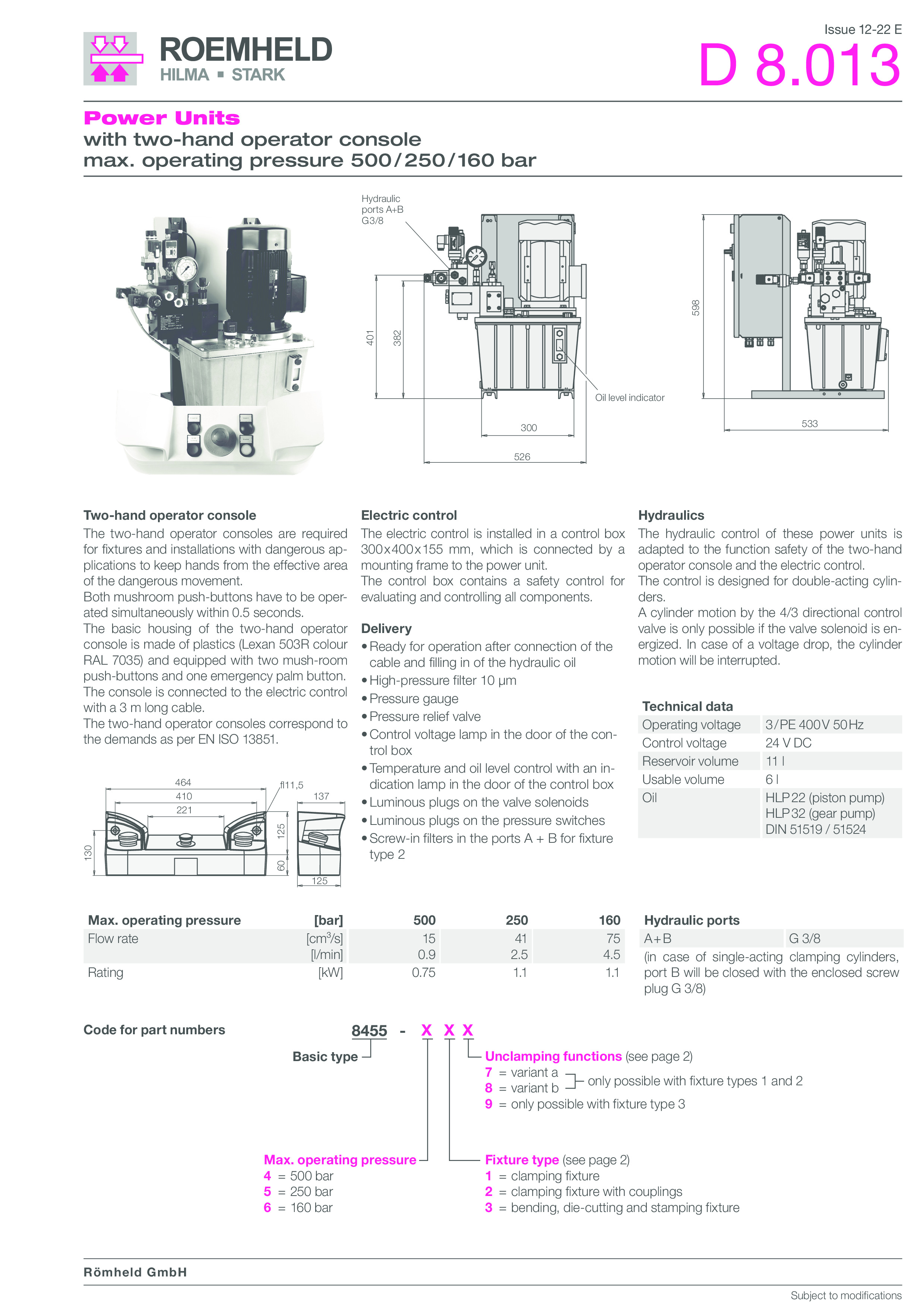

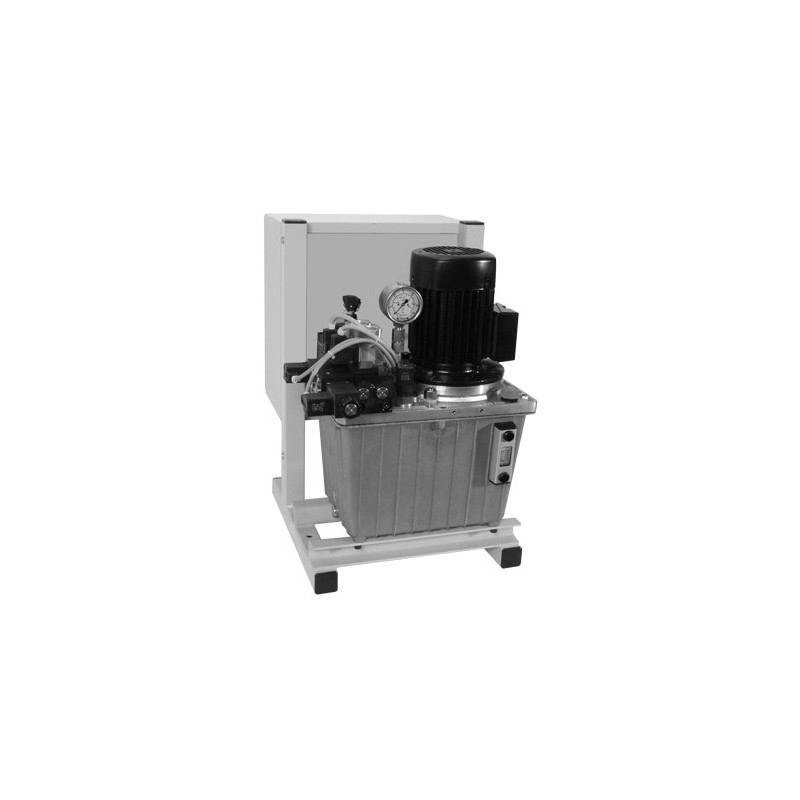

ROEMHELD D8.013 Power units with two-hand operator console
- Flow rate: 0.9 - 4.5 l/min
- Operating pressure: 160 - 500 bar
- Reservoir volume: approx. 11 l
- Usable oil volume: approx. 6 l
- Connections: G 1/4
- Motor: 0.75 - 1,1 kW – 400 VAC
Two-hand operator console is required for fixtures and installations with dangerous applications, in order to keep hands from the effective area of the dangerous movement. Both mushroom push-buttons have to be operated simultaneously within 0.5 seconds. The basic housing of the two-hand operator console is made of plastics and equipped with two mushroom push-buttons and one emergency palm button.
Power Units - ROEMHELD D8.013
- Flow rate: 0.9 - 4.5 l/min
- Operating pressure: 160 - 500 bar
- Reservoir volume: approx. 11 l
- Usable oil volume: approx. 6 l
- Connections: G 1/4
- Motor: 0.75 - 1,1 kW – 400 VAC
Features
- with two-hand operator console
- Max. Operating Pressure: 500/250/160 bar
Two-hand operator console is required for fixtures and installations with dangerous applications, in order to keep hands from the effective area of the dangerous movement. Both mushroom push-buttons have to be operated simultaneously within 0.5 seconds. The basic housing of the two-hand operator console is made of plastics (Lexan 503R colour RAL 7035) and equipped with two mushroom push-buttons and one emergency palm button.
The console is connected with a 3m long cable to the electric control. The two-hand operator consoles correspond to the demands as per EN 574.
