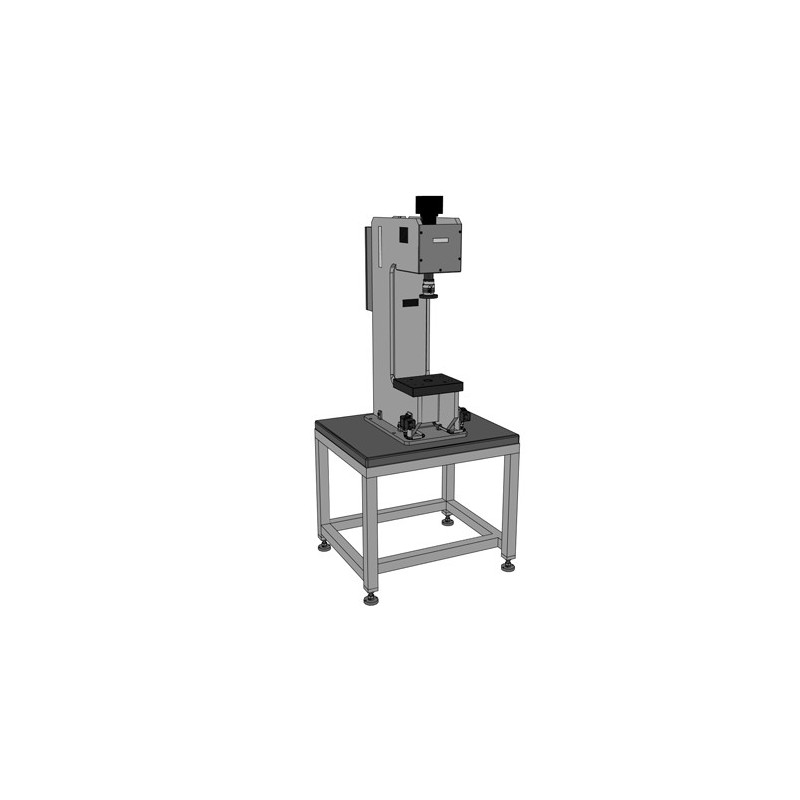

ECO Press-in Devices in C-Frame Design - ROEMHELD P1.202

ECO Press-in Devices in C-Frame Design - ROEMHELD P1.202

• Max. press-in force: 40/63/100 kN
• Stroke: 100/200/300/400 mm
• Clear depth: 220 .. 330 mm
• Clear height: 300 .. 680 mm
• Operation: two-hand operation

Advantages:

• High forces / rigid frames
• No cost and time-consuming project planning
• Easy retrofitting of functions or components
• Standardized drilling patterns for workpiece and tool holders provided by the customer
• Interchangeability of the individual elements by standardized drilling patterns
• Ergonomically designed operation
• Closed adhesion
• Reduction of assembly time
• Process safety
• Sales of individual components
• Plug & Play
• High degree of operator friendliness

Description:

The base frame is designed as a working table. Below the table plate there is the electric control and the power unit that control the hydraulic press-in cylinder at the C-frame. The steel base plate of the C-frame is installed flush with the table plate in the working table, so that the working surface is plane and edges are avoided.
On the base plate any workpiece carriers such as sliding tables can be mounted. The piston rod of the press-in cylinder is equipped with a quick-changing device, at which the press-in tools can be mounted. This can optionally be replaced by other tool holders.
