Carr Lane Press Fit Bushings 7/8 OD
Carr Lane Press fit bushings are the most common yet most cost-effective type of drill bushing in the range. P-style drill bushings are the most common and cost-effective type of drill bushing. These bushings are permanently installed into the jig plate, typically flush with the top surface. Press fit bushings (P- style) bushings are primarily used for single-operation drilling or reaming, particularly when there is no expectation of replacing the bushings throughout the tooling's lifespan. They can be mounted closer together than headed bushings but provide less resistance to heavy axial loads. These are available in both ground and unground variants. Standard bushes are listed below however configurations are available on enquiry.
- OD - 7/8"
- ID RANGE - .4921 - .7500"
- Imperial sizes available with a variety of Lengths
Products

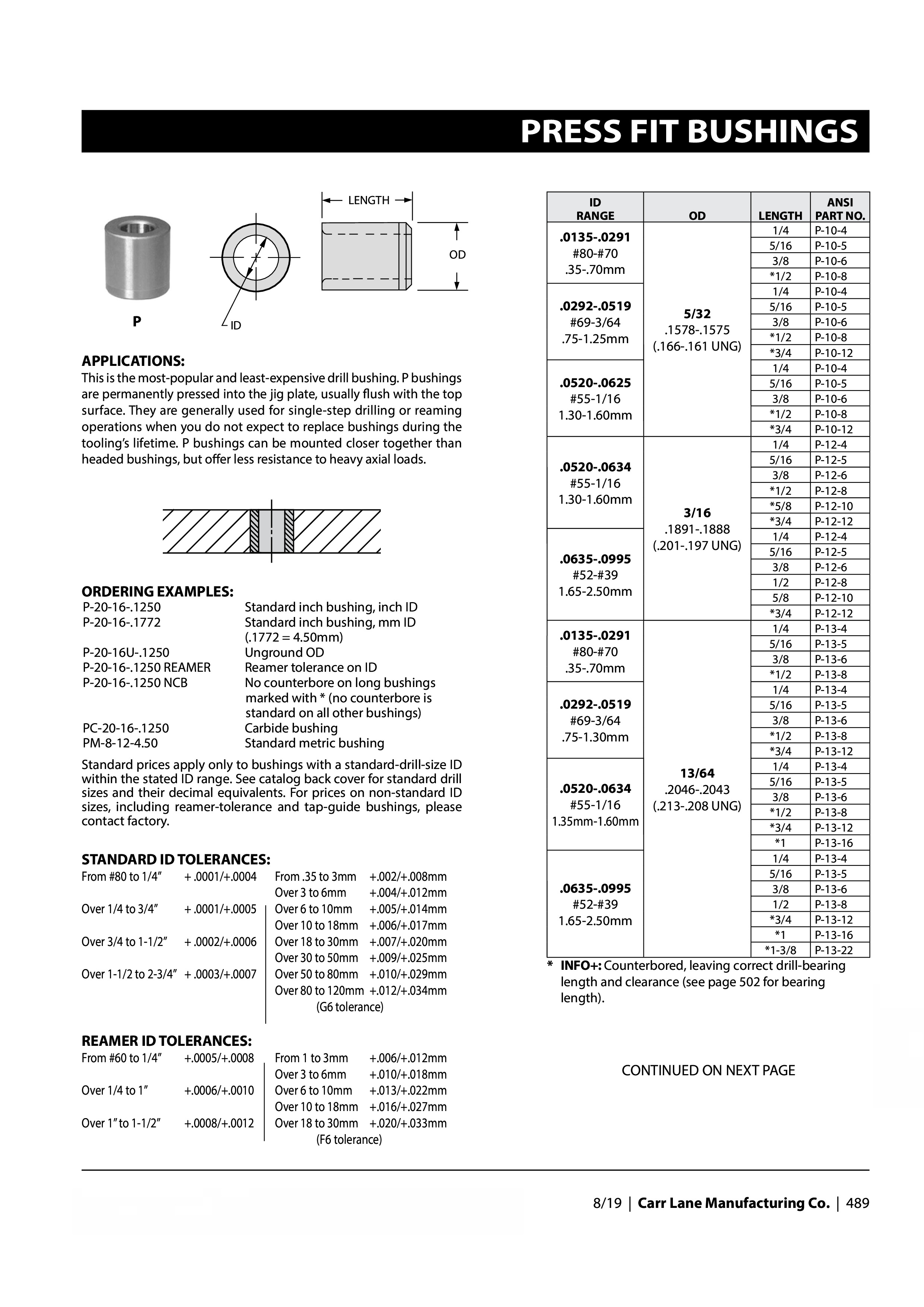

Downloads
Description
| Part Number | Material Number | Length | ID | Unground | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| P-56-22-.5156 | 1-3/8 | .5156 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.5906 | 1-3/8 | .5906 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.6562 | 1-3/8 | .6562 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22U-.5469 | 1-3/8 | .5469 | Yes | On Enquiry | ||
| P-56-22U-.6102 | 1-3/8 | .6102 | Yes | On Enquiry | ||
| P-56-22-.5312 | 1-3/8 | .5312 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.5938 | 1-3/8 | .5938 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.7500 | 1-3/8 | .7500 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22U-.5512 | 1-3/8 | .5512 | Yes | On Enquiry | ||
| P-56-22U-.6250 | 1-3/8 | .6250 | Yes | On Enquiry | ||
| P-56-22U-.6299 | 1-3/8 | .6299 | Yes | On Enquiry | ||
| P-56-22-.5315 | 1-3/8 | .5315 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.6094 | 1-3/8 | .6094 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22U-.4921 | 1-3/8 | .4921 | Yes | On Enquiry | ||
| P-56-22U-.5625 | 1-3/8 | .5625 | Yes | On Enquiry | ||
| P-56-22U-.5709 | 1-3/8 | .5709 | Yes | On Enquiry | ||
| P-56-22U-.6406 | 1-3/8 | .6406 | Yes | On Enquiry | ||
| P-56-22-.5469 | 1-3/8 | .5469 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.6102 | 1-3/8 | .6102 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22U-.5000 | 1-3/8 | .5000 | Yes | On Enquiry | ||
| P-56-22U-.5118 | 1-3/8 | .5118 | Yes | On Enquiry | ||
| P-56-22U-.5781 | 1-3/8 | .5781 | Yes | On Enquiry | ||
| P-56-22U-.6496 | 1-3/8 | .6496 | Yes | On Enquiry | ||
| P-56-22-.5512 | 1-3/8 | .5512 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.6250 | 1-3/8 | .6250 | No | £16.16 £19.39 Inc. VAT |
|
|
| P-56-22-.6299 | 1-3/8 | .6299 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22U-.5156 | 1-3/8 | .5156 | Yes | On Enquiry | ||
| P-56-22U-.5906 | 1-3/8 | .5906 | Yes | On Enquiry | ||
| P-56-22U-.6562 | 1-3/8 | .6562 | Yes | On Enquiry | ||
| P-56-22-.4921 | 1-3/8 | .4921 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.5625 | 1-3/8 | .5625 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.5709 | 1-3/8 | .5709 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.6406 | 1-3/8 | .6406 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22U-.5312 | 1-3/8 | .5312 | Yes | On Enquiry | ||
| P-56-22U-.5938 | 1-3/8 | .5938 | Yes | On Enquiry | ||
| P-56-22-.5000 | 1-3/8 | .5000 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.5118 | 1-3/8 | .5118 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.5781 | 1-3/8 | .5781 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-22-.6496 | 1-3/8 | .6496 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-22U-.5315 | 1-3/8 | .5315 | Yes | On Enquiry | ||
| P-56-22U-.6094 | 1-3/8 | .6094 | Yes | On Enquiry | ||
| P-56-10-.5625 | 5/8 | .5625 | No | £14.12 £16.94 Inc. VAT |
|
|
| P-56-10-.6299 | 5/8 | .6299 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10U-.5156 | 5/8 | .5156 | Yes | On Enquiry | ||
| P-56-10U-.5906 | 5/8 | .5906 | Yes | On Enquiry | ||
| P-56-10U-.6562 | 5/8 | .6562 | Yes | On Enquiry | ||
| P-56-10-.4921 | 5/8 | .4921 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10-.5000 | 5/8 | .5000 | No | £14.12 £16.94 Inc. VAT |
|
|
| P-56-10-.5709 | 5/8 | .5709 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10-.6406 | 5/8 | .6406 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10U-.5312 | 5/8 | .5312 | Yes | On Enquiry | ||
| P-56-10U-.5938 | 5/8 | .5938 | Yes | On Enquiry | ||
| P-56-10-.5118 | 5/8 | .5118 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10-.5781 | 5/8 | .5781 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10-.6496 | 5/8 | .6496 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10U-.5315 | 5/8 | .5315 | Yes | On Enquiry | ||
| P-56-10U-.6094 | 5/8 | .6094 | Yes | On Enquiry | ||
| P-56-10U-.6102 | 5/8 | .6102 | Yes | On Enquiry | ||
| P-56-10-.5156 | 5/8 | .5156 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10-.5906 | 5/8 | .5906 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10-.6562 | 5/8 | .6562 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10U-.5469 | 5/8 | .5469 | Yes | On Enquiry | ||
| P-56-10U-.5512 | 5/8 | .5512 | Yes | On Enquiry | ||
| P-56-10U-.6250 | 5/8 | .6250 | Yes | On Enquiry | ||
| P-56-10-.5312 | 5/8 | .5312 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10-.5938 | 5/8 | .5938 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10-.7500 | 5/8 | .7500 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10U-.4921 | 5/8 | .4921 | Yes | On Enquiry | ||
| P-56-10U-.5625 | 5/8 | .5625 | Yes | On Enquiry | ||
| P-56-10U-.6299 | 5/8 | .6299 | Yes | On Enquiry | ||
| P-56-10-.5315 | 5/8 | .5315 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10-.6094 | 5/8 | .6094 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10U-.5000 | 5/8 | .5000 | Yes | On Enquiry | ||
| P-56-10U-.5709 | 5/8 | .5709 | Yes | On Enquiry | ||
| P-56-10U-.6406 | 5/8 | .6406 | Yes | On Enquiry | ||
| P-56-10-.5469 | 5/8 | .5469 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10-.6102 | 5/8 | .6102 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-10-.6250 | 5/8 | .6250 | No | £14.12 £16.94 Inc. VAT |
|
|
| P-56-10U-.5118 | 5/8 | .5118 | Yes | On Enquiry | ||
| P-56-10U-.5781 | 5/8 | .5781 | Yes | On Enquiry | ||
| P-56-10U-.6496 | 5/8 | .6496 | Yes | On Enquiry | ||
| P-56-10-.5512 | 5/8 | .5512 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.6250 | 3/4 | .6250 | No | £14.12 £16.94 Inc. VAT |
|
|
| P-56-12U-.5118 | 3/4 | .5118 | Yes | On Enquiry | ||
| P-56-12U-.5781 | 3/4 | .5781 | Yes | On Enquiry | ||
| P-56-12U-.6496 | 3/4 | .6496 | Yes | On Enquiry | ||
| P-56-12-.5512 | 3/4 | .5512 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.5625 | 3/4 | .5625 | No | £14.12 £16.94 Inc. VAT |
|
|
| P-56-12-.6299 | 3/4 | .6299 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12U-.5156 | 3/4 | .5156 | Yes | On Enquiry | ||
| P-56-12U-.5906 | 3/4 | .5906 | Yes | On Enquiry | ||
| P-56-12U-.6562 | 3/4 | .6562 | Yes | On Enquiry | ||
| P-56-12-.4921 | 3/4 | .4921 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.5000 | 3/4 | .5000 | No | £14.12 £16.94 Inc. VAT |
|
|
| P-56-12-.5709 | 3/4 | .5709 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.6406 | 3/4 | .6406 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12U-.5312 | 3/4 | .5312 | Yes | On Enquiry | ||
| P-56-12U-.5938 | 3/4 | .5938 | Yes | On Enquiry | ||
| P-56-12-.5118 | 3/4 | .5118 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.5781 | 3/4 | .5781 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.6496 | 3/4 | .6496 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12U-.5315 | 3/4 | .5315 | Yes | On Enquiry | ||
| P-56-12U-.6094 | 3/4 | .6094 | Yes | On Enquiry | ||
| P-56-12-.5156 | 3/4 | .5156 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.5906 | 3/4 | .5906 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.6562 | 3/4 | .6562 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12U-.5469 | 3/4 | .5469 | Yes | On Enquiry | ||
| P-56-12U-.6102 | 3/4 | .6102 | Yes | On Enquiry | ||
| P-56-12U-.6250 | 3/4 | .6250 | Yes | On Enquiry | ||
| P-56-12-.5312 | 3/4 | .5312 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.5938 | 3/4 | .5938 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.7500 | 3/4 | .7500 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12U-.5512 | 3/4 | .5512 | Yes | On Enquiry | ||
| P-56-12U-.5625 | 3/4 | .5625 | Yes | On Enquiry | ||
| P-56-12U-.6299 | 3/4 | .6299 | Yes | On Enquiry | ||
| P-56-12-.5315 | 3/4 | .5315 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.6094 | 3/4 | .6094 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12U-.4921 | 3/4 | .4921 | Yes | On Enquiry | ||
| P-56-12U-.5000 | 3/4 | .5000 | Yes | On Enquiry | ||
| P-56-12U-.5709 | 3/4 | .5709 | Yes | On Enquiry | ||
| P-56-12U-.6406 | 3/4 | .6406 | Yes | On Enquiry | ||
| P-56-12-.5469 | 3/4 | .5469 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-12-.6102 | 3/4 | .6102 | No | £16.13 £19.36 Inc. VAT |
|
|
| P-56-16U-.5625 | 1 | .5625 | Yes | On Enquiry | ||
| P-56-16U-.6299 | 1 | .6299 | Yes | On Enquiry | ||
| P-56-16-.5469 | 1 | .5469 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.6102 | 1 | .6102 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16U-.4921 | 1 | .4921 | Yes | On Enquiry | ||
| P-56-16U-.5000 | 1 | .5000 | Yes | On Enquiry | ||
| P-56-16U-.5709 | 1 | .5709 | Yes | On Enquiry | ||
| P-56-16U-.6406 | 1 | .6406 | Yes | On Enquiry | ||
| P-56-16-.5512 | 1 | .5512 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.5625 | 1 | .5625 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.6250 | 1 | .6250 | No | £14.78 £17.74 Inc. VAT |
|
|
| P-56-16U-.5118 | 1 | .5118 | Yes | On Enquiry | ||
| P-56-16U-.5781 | 1 | .5781 | Yes | On Enquiry | ||
| P-56-16U-.6496 | 1 | .6496 | Yes | On Enquiry | ||
| P-56-16-.4921 | 1 | .4921 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.5000 | 1 | .5000 | No | £14.78 £17.74 Inc. VAT |
|
|
| P-56-16-.5709 | 1 | .5709 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.6299 | 1 | .6299 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16U-.5156 | 1 | .5156 | Yes | On Enquiry | ||
| P-56-16U-.5906 | 1 | .5906 | Yes | On Enquiry | ||
| P-56-16U-.6562 | 1 | .6562 | Yes | On Enquiry | ||
| P-56-16-.5118 | 1 | .5118 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.5781 | 1 | .5781 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.6406 | 1 | .6406 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16U-.5312 | 1 | .5312 | Yes | On Enquiry | ||
| P-56-16U-.5938 | 1 | .5938 | Yes | On Enquiry | ||
| P-56-16-.5156 | 1 | .5156 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.5906 | 1 | .5906 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.6496 | 1 | .6496 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16U-.5315 | 1 | .5315 | Yes | On Enquiry | ||
| P-56-16U-.6094 | 1 | .6094 | Yes | On Enquiry | ||
| P-56-16-.5312 | 1 | .5312 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.5938 | 1 | .5938 | No | £16.42 £19.70 Inc. VAT |
|
|
| P-56-16-.6562 | 1 | .6562 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16U-.5469 | 1 | .5469 | Yes | On Enquiry | ||
| P-56-16U-.6102 | 1 | .6102 | Yes | On Enquiry | ||
| P-56-16U-.6250 | 1 | .6250 | Yes | On Enquiry | ||
| P-56-16-.5315 | 1 | .5315 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.6094 | 1 | .6094 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16-.7500 | 1 | .7500 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-16U-.5512 | 1 | .5512 | Yes | On Enquiry | ||
| P-56-20U-.6250 | 1-1/4 | .6250 | Yes | On Enquiry | ||
| P-56-20-.5312 | 1-1/4 | .5312 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.5938 | 1-1/4 | .5938 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.7500 | 1-1/4 | .7500 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20U-.5512 | 1-1/4 | .5512 | Yes | On Enquiry | ||
| P-56-20U-.5625 | 1-1/4 | .5625 | Yes | On Enquiry | ||
| P-56-20U-.6299 | 1-1/4 | .6299 | Yes | On Enquiry | ||
| P-56-20-.5315 | 1-1/4 | .5315 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.6094 | 1-1/4 | .6094 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20U-.4921 | 1-1/4 | .4921 | Yes | On Enquiry | ||
| P-56-20U-.5000 | 1-1/4 | .5000 | Yes | On Enquiry | ||
| P-56-20U-.5709 | 1-1/4 | .5709 | Yes | On Enquiry | ||
| P-56-20U-.6406 | 1-1/4 | .6406 | Yes | On Enquiry | ||
| P-56-20-.5469 | 1-1/4 | .5469 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.6102 | 1-1/4 | .6102 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20U-.5118 | 1-1/4 | .5118 | Yes | On Enquiry | ||
| P-56-20U-.5781 | 1-1/4 | .5781 | Yes | On Enquiry | ||
| P-56-20U-.6496 | 1-1/4 | .6496 | Yes | On Enquiry | ||
| P-56-20-.5512 | 1-1/4 | .5512 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.6250 | 1-1/4 | .6250 | No | £16.16 £19.39 Inc. VAT |
|
|
| P-56-20-.6299 | 1-1/4 | .6299 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20U-.5156 | 1-1/4 | .5156 | Yes | On Enquiry | ||
| P-56-20U-.5906 | 1-1/4 | .5906 | Yes | On Enquiry | ||
| P-56-20U-.6562 | 1-1/4 | .6562 | Yes | On Enquiry | ||
| P-56-20-.4921 | 1-1/4 | .4921 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.5625 | 1-1/4 | .5625 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.5709 | 1-1/4 | .5709 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.6406 | 1-1/4 | .6406 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20U-.5312 | 1-1/4 | .5312 | Yes | On Enquiry | ||
| P-56-20U-.5938 | 1-1/4 | .5938 | Yes | On Enquiry | ||
| P-56-20-.5000 | 1-1/4 | .5000 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.5118 | 1-1/4 | .5118 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.5781 | 1-1/4 | .5781 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.6496 | 1-1/4 | .6496 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20U-.5315 | 1-1/4 | .5315 | Yes | On Enquiry | ||
| P-56-20U-.6094 | 1-1/4 | .6094 | Yes | On Enquiry | ||
| P-56-20-.5156 | 1-1/4 | .5156 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.5906 | 1-1/4 | .5906 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20-.6562 | 1-1/4 | .6562 | No | £18.49 £22.19 Inc. VAT |
|
|
| P-56-20U-.5469 | 1-1/4 | .5469 | Yes | On Enquiry | ||
| P-56-20U-.6102 | 1-1/4 | .6102 | Yes | On Enquiry | ||
| P-56-24-.5118 | 1-1/2 | .5118 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.5781 | 1-1/2 | .5781 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.6496 | 1-1/2 | .6496 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24U-.5315 | 1-1/2 | .5315 | Yes | On Enquiry | ||
| P-56-24U-.6094 | 1-1/2 | .6094 | Yes | On Enquiry | ||
| P-56-24-.5156 | 1-1/2 | .5156 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.5906 | 1-1/2 | .5906 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.6562 | 1-1/2 | .6562 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24U-.5469 | 1-1/2 | .5469 | Yes | On Enquiry | ||
| P-56-24U-.6102 | 1-1/2 | .6102 | Yes | On Enquiry | ||
| P-56-24-.5312 | 1-1/2 | .5312 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.5938 | 1-1/2 | .5938 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.7500 | 1-1/2 | .7500 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24U-.5512 | 1-1/2 | .5512 | Yes | On Enquiry | ||
| P-56-24U-.6250 | 1-1/2 | .6250 | Yes | On Enquiry | ||
| P-56-24U-.6299 | 1-1/2 | .6299 | Yes | On Enquiry | ||
| P-56-24-.5315 | 1-1/2 | .5315 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.6094 | 1-1/2 | .6094 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24U-.4921 | 1-1/2 | .4921 | Yes | On Enquiry | ||
| P-56-24U-.5625 | 1-1/2 | .5625 | Yes | On Enquiry | ||
| P-56-24U-.5709 | 1-1/2 | .5709 | Yes | On Enquiry | ||
| P-56-24U-.6406 | 1-1/2 | .6406 | Yes | On Enquiry | ||
| P-56-24-.5469 | 1-1/2 | .5469 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.6102 | 1-1/2 | .6102 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24U-.5000 | 1-1/2 | .5000 | Yes | On Enquiry | ||
| P-56-24U-.5118 | 1-1/2 | .5118 | Yes | On Enquiry | ||
| P-56-24U-.5781 | 1-1/2 | .5781 | Yes | On Enquiry | ||
| P-56-24U-.6496 | 1-1/2 | .6496 | Yes | On Enquiry | ||
| P-56-24-.5512 | 1-1/2 | .5512 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.6250 | 1-1/2 | .6250 | No | £17.58 £21.10 Inc. VAT |
|
|
| P-56-24-.6299 | 1-1/2 | .6299 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24U-.5156 | 1-1/2 | .5156 | Yes | On Enquiry | ||
| P-56-24U-.5906 | 1-1/2 | .5906 | Yes | On Enquiry | ||
| P-56-24U-.6562 | 1-1/2 | .6562 | Yes | On Enquiry | ||
| P-56-24-.4921 | 1-1/2 | .4921 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.5625 | 1-1/2 | .5625 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.5709 | 1-1/2 | .5709 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24-.6406 | 1-1/2 | .6406 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-24U-.5312 | 1-1/2 | .5312 | Yes | On Enquiry | ||
| P-56-24U-.5938 | 1-1/2 | .5938 | Yes | On Enquiry | ||
| P-56-24-.5000 | 1-1/2 | .5000 | No | £20.10 £24.12 Inc. VAT |
|
|
| P-56-28-.6406 | 1-3/4 | .6406 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28U-.5312 | 1-3/4 | .5312 | Yes | On Enquiry | ||
| P-56-28U-.5938 | 1-3/4 | .5938 | Yes | On Enquiry | ||
| P-56-28-.5000 | 1-3/4 | .5000 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.5709 | 1-3/4 | .5709 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.5781 | 1-3/4 | .5781 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.6496 | 1-3/4 | .6496 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28U-.5315 | 1-3/4 | .5315 | Yes | On Enquiry | ||
| P-56-28U-.6094 | 1-3/4 | .6094 | Yes | On Enquiry | ||
| P-56-28-.5118 | 1-3/4 | .5118 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.5156 | 1-3/4 | .5156 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.5906 | 1-3/4 | .5906 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.6562 | 1-3/4 | .6562 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28U-.5469 | 1-3/4 | .5469 | Yes | On Enquiry | ||
| P-56-28U-.6102 | 1-3/4 | .6102 | Yes | On Enquiry | ||
| P-56-28-.5312 | 1-3/4 | .5312 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.5938 | 1-3/4 | .5938 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.7500 | 1-3/4 | .7500 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28U-.5512 | 1-3/4 | .5512 | Yes | On Enquiry | ||
| P-56-28U-.6250 | 1-3/4 | .6250 | Yes | On Enquiry | ||
| P-56-28U-.6299 | 1-3/4 | .6299 | Yes | On Enquiry | ||
| P-56-28-.5315 | 1-3/4 | .5315 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.6094 | 1-3/4 | .6094 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28U-.4921 | 1-3/4 | .4921 | Yes | On Enquiry | ||
| P-56-28U-.5625 | 1-3/4 | .5625 | Yes | On Enquiry | ||
| P-56-28U-.5709 | 1-3/4 | .5709 | Yes | On Enquiry | ||
| P-56-28U-.6406 | 1-3/4 | .6406 | Yes | On Enquiry | ||
| P-56-28-.5469 | 1-3/4 | .5469 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.6102 | 1-3/4 | .6102 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28U-.5000 | 1-3/4 | .5000 | Yes | On Enquiry | ||
| P-56-28U-.5781 | 1-3/4 | .5781 | Yes | On Enquiry | ||
| P-56-28U-.6496 | 1-3/4 | .6496 | Yes | On Enquiry | ||
| P-56-28-.5512 | 1-3/4 | .5512 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.6250 | 1-3/4 | .6250 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28U-.5118 | 1-3/4 | .5118 | Yes | On Enquiry | ||
| P-56-28U-.5156 | 1-3/4 | .5156 | Yes | On Enquiry | ||
| P-56-28U-.5906 | 1-3/4 | .5906 | Yes | On Enquiry | ||
| P-56-28U-.6562 | 1-3/4 | .6562 | Yes | On Enquiry | ||
| P-56-28-.4921 | 1-3/4 | .4921 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.5625 | 1-3/4 | .5625 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-28-.6299 | 1-3/4 | .6299 | No | £22.10 £26.52 Inc. VAT |
|
|
| P-56-6U-.6094 | 3/8 | .6094 | Yes | On Enquiry | ||
| P-56-6-.5118 | 3/8 | .5118 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.5781 | 3/8 | .5781 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.6496 | 3/8 | .6496 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6U-.5315 | 3/8 | .5315 | Yes | On Enquiry | ||
| P-56-6U-.6102 | 3/8 | .6102 | Yes | On Enquiry | ||
| P-56-6-.5156 | 3/8 | .5156 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.5906 | 3/8 | .5906 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.6562 | 3/8 | .6562 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6U-.5469 | 3/8 | .5469 | Yes | On Enquiry | ||
| P-56-6U-.5512 | 3/8 | .5512 | Yes | On Enquiry | ||
| P-56-6U-.6250 | 3/8 | .6250 | Yes | On Enquiry | ||
| P-56-6-.5312 | 3/8 | .5312 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.5938 | 3/8 | .5938 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.7500 | 3/8 | .7500 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6U-.4921 | 3/8 | .4921 | Yes | On Enquiry | ||
| P-56-6U-.5625 | 3/8 | .5625 | Yes | On Enquiry | ||
| P-56-6U-.6299 | 3/8 | .6299 | Yes | On Enquiry | ||
| P-56-6-.5315 | 3/8 | .5315 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.6094 | 3/8 | .6094 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.6102 | 3/8 | .6102 | No | £14.38 £17.26 Inc. VAT |
|
|
| P-56-6U-.5000 | 3/8 | .5000 | Yes | On Enquiry | ||
| P-56-6U-.5709 | 3/8 | .5709 | Yes | On Enquiry | ||
| P-56-6U-.6406 | 3/8 | .6406 | Yes | On Enquiry | ||
| P-56-6-.5469 | 3/8 | .5469 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.5512 | 3/8 | .5512 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.6250 | 3/8 | .6250 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6U-.5118 | 3/8 | .5118 | Yes | On Enquiry | ||
| P-56-6U-.5781 | 3/8 | .5781 | Yes | On Enquiry | ||
| P-56-6U-.6496 | 3/8 | .6496 | Yes | On Enquiry | ||
| P-56-6-.4921 | 3/8 | .4921 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.5625 | 3/8 | .5625 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.6299 | 3/8 | .6299 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6U-.5156 | 3/8 | .5156 | Yes | On Enquiry | ||
| P-56-6U-.5906 | 3/8 | .5906 | Yes | On Enquiry | ||
| P-56-6U-.6562 | 3/8 | .6562 | Yes | On Enquiry | ||
| P-56-6-.5000 | 3/8 | .5000 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.5709 | 3/8 | .5709 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6-.6406 | 3/8 | .6406 | No | £17.47 £20.96 Inc. VAT |
|
|
| P-56-6U-.5312 | 3/8 | .5312 | Yes | On Enquiry | ||
| P-56-6U-.5938 | 3/8 | .5938 | Yes | On Enquiry | ||
| P-56-40U-.6406 | 2-1/2 | .6406 | Yes | On Enquiry | ||
| P-56-40-.5469 | 2-1/2 | .5469 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.6102 | 2-1/2 | .6102 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40U-.5000 | 2-1/2 | .5000 | Yes | On Enquiry | ||
| P-56-40U-.5709 | 2-1/2 | .5709 | Yes | On Enquiry | ||
| P-56-40U-.5781 | 2-1/2 | .5781 | Yes | On Enquiry | ||
| P-56-40U-.6496 | 2-1/2 | .6496 | Yes | On Enquiry | ||
| P-56-40-.5512 | 2-1/2 | .5512 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.6250 | 2-1/2 | .6250 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40U-.5118 | 2-1/2 | .5118 | Yes | On Enquiry | ||
| P-56-40U-.5156 | 2-1/2 | .5156 | Yes | On Enquiry | ||
| P-56-40U-.5906 | 2-1/2 | .5906 | Yes | On Enquiry | ||
| P-56-40U-.6562 | 2-1/2 | .6562 | Yes | On Enquiry | ||
| P-56-40-.4921 | 2-1/2 | .4921 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.5625 | 2-1/2 | .5625 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.6299 | 2-1/2 | .6299 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.6406 | 2-1/2 | .6406 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40U-.5312 | 2-1/2 | .5312 | Yes | On Enquiry | ||
| P-56-40U-.5938 | 2-1/2 | .5938 | Yes | On Enquiry | ||
| P-56-40-.5000 | 2-1/2 | .5000 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.5709 | 2-1/2 | .5709 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.6496 | 2-1/2 | .6496 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40U-.5315 | 2-1/2 | .5315 | Yes | On Enquiry | ||
| P-56-40U-.6094 | 2-1/2 | .6094 | Yes | On Enquiry | ||
| P-56-40-.5118 | 2-1/2 | .5118 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.5781 | 2-1/2 | .5781 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.5906 | 2-1/2 | .5906 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.6562 | 2-1/2 | .6562 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40U-.5469 | 2-1/2 | .5469 | Yes | On Enquiry | ||
| P-56-40U-.6102 | 2-1/2 | .6102 | Yes | On Enquiry | ||
| P-56-40-.5156 | 2-1/2 | .5156 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.5312 | 2-1/2 | .5312 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.5938 | 2-1/2 | .5938 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.7500 | 2-1/2 | .7500 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40U-.5512 | 2-1/2 | .5512 | Yes | On Enquiry | ||
| P-56-40U-.6250 | 2-1/2 | .6250 | Yes | On Enquiry | ||
| P-56-40-.5315 | 2-1/2 | .5315 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40-.6094 | 2-1/2 | .6094 | No | £29.40 £35.28 Inc. VAT |
|
|
| P-56-40U-.4921 | 2-1/2 | .4921 | Yes | On Enquiry | ||
| P-56-40U-.5625 | 2-1/2 | .5625 | Yes | On Enquiry | ||
| P-56-40U-.6299 | 2-1/2 | .6299 | Yes | On Enquiry | ||
| P-56-34U-.5156 | 2-1/8 | .5156 | Yes | On Enquiry | ||
| P-56-34U-.5781 | 2-1/8 | .5781 | Yes | On Enquiry | ||
| P-56-34U-.6496 | 2-1/8 | .6496 | Yes | On Enquiry | ||
| P-56-34-.4921 | 2-1/8 | .4921 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.5625 | 2-1/8 | .5625 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.6299 | 2-1/8 | .6299 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.6406 | 2-1/8 | .6406 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34U-.5312 | 2-1/8 | .5312 | Yes | On Enquiry | ||
| P-56-34U-.5906 | 2-1/8 | .5906 | Yes | On Enquiry | ||
| P-56-34U-.6562 | 2-1/8 | .6562 | Yes | On Enquiry | ||
| P-56-34-.5000 | 2-1/8 | .5000 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.5709 | 2-1/8 | .5709 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.5781 | 2-1/8 | .5781 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.6496 | 2-1/8 | .6496 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34U-.5315 | 2-1/8 | .5315 | Yes | On Enquiry | ||
| P-56-34U-.5938 | 2-1/8 | .5938 | Yes | On Enquiry | ||
| P-56-34-.5118 | 2-1/8 | .5118 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.5156 | 2-1/8 | .5156 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.5906 | 2-1/8 | .5906 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.6562 | 2-1/8 | .6562 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34U-.5469 | 2-1/8 | .5469 | Yes | On Enquiry | ||
| P-56-34U-.6094 | 2-1/8 | .6094 | Yes | On Enquiry | ||
| P-56-34-.5312 | 2-1/8 | .5312 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.5938 | 2-1/8 | .5938 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.7500 | 2-1/8 | .7500 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34U-.5512 | 2-1/8 | .5512 | Yes | On Enquiry | ||
| P-56-34U-.6102 | 2-1/8 | .6102 | Yes | On Enquiry | ||
| P-56-34-.5315 | 2-1/8 | .5315 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.6094 | 2-1/8 | .6094 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34U-.4921 | 2-1/8 | .4921 | Yes | On Enquiry | ||
| P-56-34U-.5625 | 2-1/8 | .5625 | Yes | On Enquiry | ||
| P-56-34U-.6250 | 2-1/8 | .6250 | Yes | On Enquiry | ||
| P-56-34-.5469 | 2-1/8 | .5469 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.6102 | 2-1/8 | .6102 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34U-.5000 | 2-1/8 | .5000 | Yes | On Enquiry | ||
| P-56-34U-.5709 | 2-1/8 | .5709 | Yes | On Enquiry | ||
| P-56-34U-.6299 | 2-1/8 | .6299 | Yes | On Enquiry | ||
| P-56-34U-.6406 | 2-1/8 | .6406 | Yes | On Enquiry | ||
| P-56-34-.5512 | 2-1/8 | .5512 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34-.6250 | 2-1/8 | .6250 | No | £25.43 £30.52 Inc. VAT |
|
|
| P-56-34U-.5118 | 2-1/8 | .5118 | Yes | On Enquiry | ||
| P-56-8-.5000 | 1/2 | .5000 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.5709 | 1/2 | .5709 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.6406 | 1/2 | .6406 | No | £13.56 £16.27 Inc. VAT |
|
|
| P-56-8U-.5312 | 1/2 | .5312 | Yes | On Enquiry | ||
| P-56-8U-.5938 | 1/2 | .5938 | Yes | On Enquiry | ||
| P-56-8-.5118 | 1/2 | .5118 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.5781 | 1/2 | .5781 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.6496 | 1/2 | .6496 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8U-.5315 | 1/2 | .5315 | Yes | On Enquiry | ||
| P-56-8U-.6094 | 1/2 | .6094 | Yes | On Enquiry | ||
| P-56-8U-.6102 | 1/2 | .6102 | Yes | On Enquiry | ||
| P-56-8-.5156 | 1/2 | .5156 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.5906 | 1/2 | .5906 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.6562 | 1/2 | .6562 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8U-.5469 | 1/2 | .5469 | Yes | On Enquiry | ||
| P-56-8U-.5512 | 1/2 | .5512 | Yes | On Enquiry | ||
| P-56-8U-.6250 | 1/2 | .6250 | Yes | On Enquiry | ||
| P-56-8-.5312 | 1/2 | .5312 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.5938 | 1/2 | .5938 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.7500 | 1/2 | .7500 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8U-.4921 | 1/2 | .4921 | Yes | On Enquiry | ||
| P-56-8U-.5625 | 1/2 | .5625 | Yes | On Enquiry | ||
| P-56-8U-.6299 | 1/2 | .6299 | Yes | On Enquiry | ||
| P-56-8-.5315 | 1/2 | .5315 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.6094 | 1/2 | .6094 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.6102 | 1/2 | .6102 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8U-.5000 | 1/2 | .5000 | Yes | On Enquiry | ||
| P-56-8U-.5709 | 1/2 | .5709 | Yes | On Enquiry | ||
| P-56-8U-.6406 | 1/2 | .6406 | Yes | On Enquiry | ||
| P-56-8-.5469 | 1/2 | .5469 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.5512 | 1/2 | .5512 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.6250 | 1/2 | .6250 | No | £13.56 £16.27 Inc. VAT |
|
|
| P-56-8U-.5118 | 1/2 | .5118 | Yes | On Enquiry | ||
| P-56-8U-.5781 | 1/2 | .5781 | Yes | On Enquiry | ||
| P-56-8U-.6496 | 1/2 | .6496 | Yes | On Enquiry | ||
| P-56-8-.4921 | 1/2 | .4921 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8-.5625 | 1/2 | .5625 | No | £13.56 £16.27 Inc. VAT |
|
|
| P-56-8-.6299 | 1/2 | .6299 | No | £15.53 £18.64 Inc. VAT |
|
|
| P-56-8U-.5156 | 1/2 | .5156 | Yes | On Enquiry | ||
| P-56-8U-.5906 | 1/2 | .5906 | Yes | On Enquiry | ||
| P-56-8U-.6562 | 1/2 | .6562 | Yes | On Enquiry | ||
| P-56-5U-.5469 | 5/16 | .5469 | Yes | On Enquiry | ||
| P-56-5U-.6102 | 5/16 | .6102 | Yes | On Enquiry | ||
| P-56-5-.5156 | 5/16 | .5156 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.5906 | 5/16 | .5906 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.6562 | 5/16 | .6562 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.7500 | 5/16 | .7500 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5U-.5512 | 5/16 | .5512 | Yes | On Enquiry | ||
| P-56-5U-.6250 | 5/16 | .6250 | Yes | On Enquiry | ||
| P-56-5-.5312 | 5/16 | .5312 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.5938 | 5/16 | .5938 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.6094 | 5/16 | .6094 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5U-.4921 | 5/16 | .4921 | Yes | On Enquiry | ||
| P-56-5U-.5625 | 5/16 | .5625 | Yes | On Enquiry | ||
| P-56-5U-.6299 | 5/16 | .6299 | Yes | On Enquiry | ||
| P-56-5-.5315 | 5/16 | .5315 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.6102 | 5/16 | .6102 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5U-.5000 | 5/16 | .5000 | Yes | On Enquiry | ||
| P-56-5U-.5709 | 5/16 | .5709 | Yes | On Enquiry | ||
| P-56-5U-.6406 | 5/16 | .6406 | Yes | On Enquiry | ||
| P-56-5-.5469 | 5/16 | .5469 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.5512 | 5/16 | .5512 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.6250 | 5/16 | .6250 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5U-.5118 | 5/16 | .5118 | Yes | On Enquiry | ||
| P-56-5U-.5781 | 5/16 | .5781 | Yes | On Enquiry | ||
| P-56-5U-.6496 | 5/16 | .6496 | Yes | On Enquiry | ||
| P-56-5-.4921 | 5/16 | .4921 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.5625 | 5/16 | .5625 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.6299 | 5/16 | .6299 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5U-.5156 | 5/16 | .5156 | Yes | On Enquiry | ||
| P-56-5U-.5906 | 5/16 | .5906 | Yes | On Enquiry | ||
| P-56-5U-.6562 | 5/16 | .6562 | Yes | On Enquiry | ||
| P-56-5-.5000 | 5/16 | .5000 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.5709 | 5/16 | .5709 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.6406 | 5/16 | .6406 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5U-.5312 | 5/16 | .5312 | Yes | On Enquiry | ||
| P-56-5U-.5938 | 5/16 | .5938 | Yes | On Enquiry | ||
| P-56-5U-.6094 | 5/16 | .6094 | Yes | On Enquiry | ||
| P-56-5-.5118 | 5/16 | .5118 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.5781 | 5/16 | .5781 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5-.6496 | 5/16 | .6496 | No | £16.91 £20.29 Inc. VAT |
|
|
| P-56-5U-.5315 | 5/16 | .5315 | Yes | On Enquiry |
Carr Lane Press Fit Bushings 7/8 OD
Carr Lane Press fit bushings are the most common yet most cost-effective type of drill bushing in the range. P-style drill bushings are the most common and cost-effective type of drill bushing. These bushings are permanently installed into the jig plate, typically flush with the top surface. Press fit bushings (P- style) bushings are primarily used for single-operation drilling or reaming, particularly when there is no expectation of replacing the bushings throughout the tooling's lifespan. They can be mounted closer together than headed bushings but provide less resistance to heavy axial loads. These are available in both ground and unground variants. Standard bushes are listed below however configurations are available on enquiry.
Options:
- OD - 7/8"
- ID RANGE - .4921 - .7500"
- Length - 5/16 - 2-1/2"
| Quantity | Unit discount | You Save |
|---|
