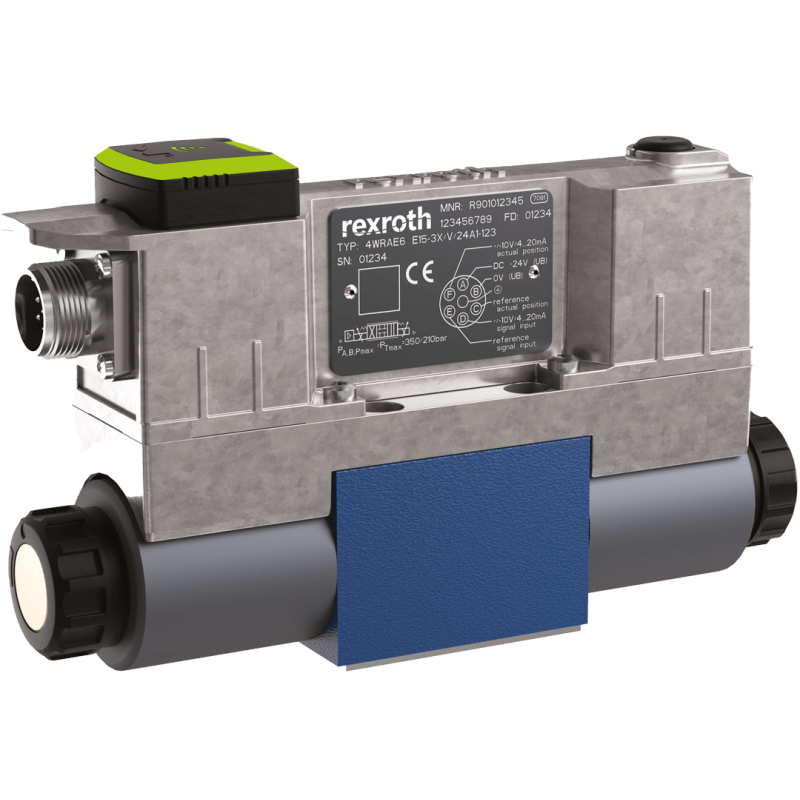

Bosch Rexroth 4/2 and 4/3 Direct Operated Proportional Directional Valves (OBE) 4WRA(E)

4WRA(E) Size 6 & 10 Series 2x

4/2 and 4/3 proportional directional valves, direct operated, without electrical position feedback, without integrated electronics (OBE) 4WRA(E)

  • Size: 6, 10
  • Component series: 2X
  • Maximum operating pressure: 315 bar
  • Maximum flow: 42 l/min, 75 l/min
Print page

Products
Downloads
Description
Part Number Material Number Spool Size Rated flow Price Add to Parts List
4WRAE 10 E60-2X/G24N9K31/A1V 4WRAE10E60-2X/G24N9K31/A1V R900558356 E 10 / Cetop 5 60 l/min NG10 £2,588.44
£3,106.13 Inc. VAT
4WRAE 10 E60-2X/G24N9K31/F1V 4WRAE10E60-2X/G24N9K31/F1V R900929318 E 10 / Cetop 5 60 l/min NG10 £2,588.44
£3,106.13 Inc. VAT
4WRAE 6 E15-2X/G24N9K31/A1V 4WRAE6E15-2X/G24N9K31/A1V R900909389 E 6 / Cetop 3 15 l/min NG6 £2,273.35
£2,728.02 Inc. VAT
4WRAE 6 E30-2X/G24N9K31/A1V 4WRAE6E30-2X/G24N9K31/A1V R900558355 E 6 / Cetop 3 30 l/min NG6 £2,273.36
£2,728.03 Inc. VAT
4WRAE 6 W15-2X/G24N9K31/A1V 4WRAE6W15-2X/G24N9K31/A1V R900908938 W 6 / Cetop 3 15 l/min NG6 £2,273.35
£2,728.02 Inc. VAT
4WRA 10 W60-2X/G24N9K4/V 4WRA10W60-2X/G24N9K4/V R900907650 W 10 / Cetop 5 60 l/min NG10 £1,664.47
£1,997.36 Inc. VAT
4WRAE 6 W30-2X/G24N9K31/A1V 4WRAE6W30-2X/G24N9K31/A1V R900900987 W 6 / Cetop 3 30 l/min NG6 £2,273.35
£2,728.02 Inc. VAT
4WRAE 10 W60-2X/G24N9K31/A1V 4WRAE10W60-2X/G24N9K31/A1V R900900988 W 10 / Cetop 5 60 l/min NG10 £2,588.45
£3,106.14 Inc. VAT
4WRAE 10 W60-2X/G24N9K31/F1V 4WRAE10W60-2X/G24N9K31/F1V R900920055 W 10 / Cetop 5 60 l/min NG10 £2,588.44
£3,106.13 Inc. VAT
4WRAE 10 W1-60-2X/G24K31/F1V 4WRAE10W1-60-2X/G24K31/F1V R900732536 W1 10 / Cetop 5 60 l/min NG10 £2,654.94
£3,185.93 Inc. VAT
re29055_2005-10

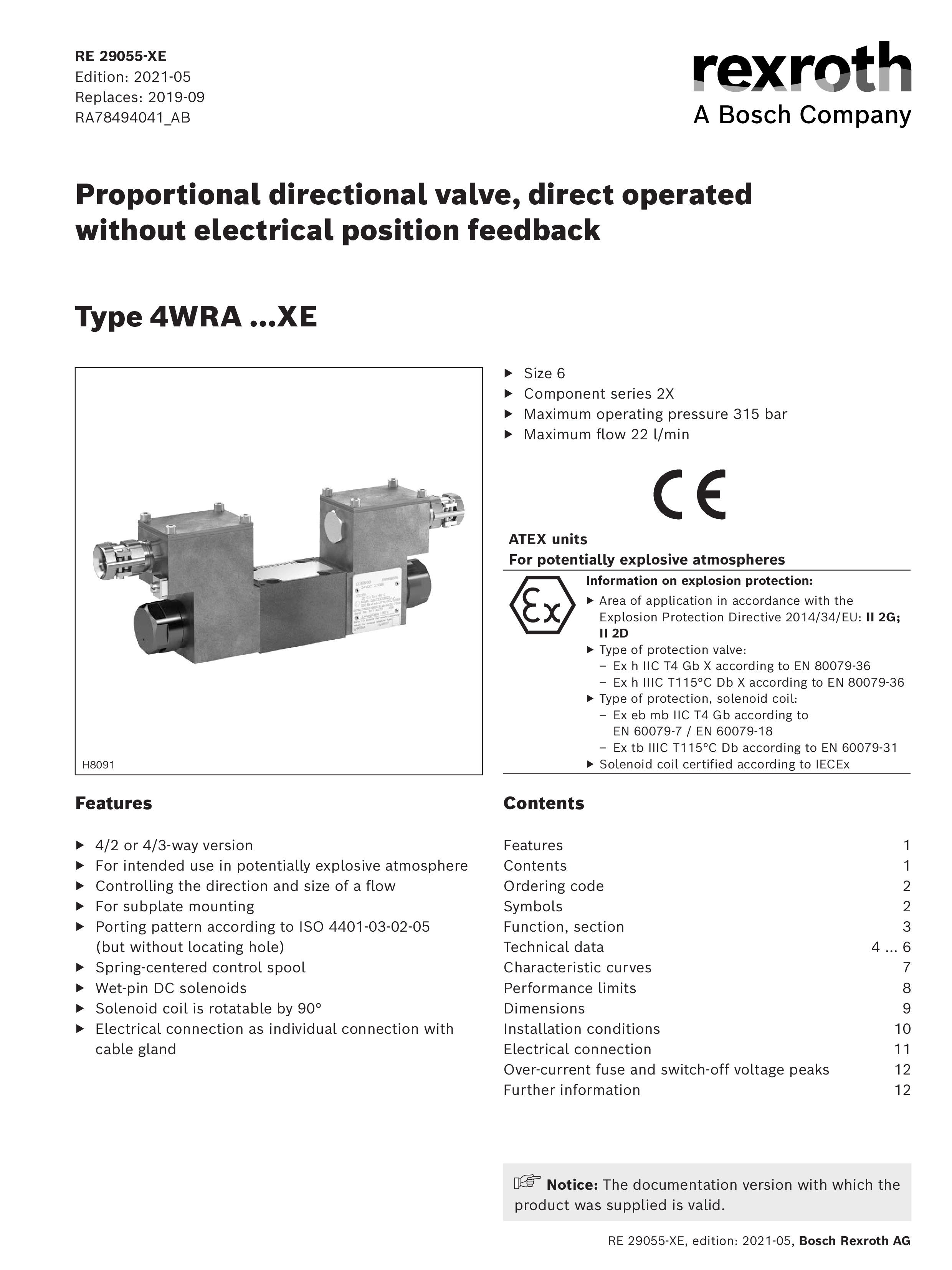

RE_29055-XE_2021-05
re29055-m_2000-08
re29055-u_2004-09

Bosch Rexroth 4/2 and 4/3 Direct Operated Proportional Directional Valves (OBE) 4WRA(E)

  • Component series 2X
  • Size 6, 10
  • Maximum operating pressure 315 bar
  • Maximum flow 42 l/min (size 6)
  • Maximum flow 75 l/min (size 10)
  • For subplate mounting
  • Explosion-proof also available
  • Sea water resistant also available

Features:

  • Control the direction and magnitude of a flow
  • Actuation by means of proportional solenoids with central thread and removable coil
  • For subplate mounting:
    Connection position to ISO 4401 Subplates to catalogue sheets RE 45052 (NS6) or RE 45054 (NS10) separate order, see page 12 to 15
  • Spring centred control spool
  • Control electronics
    - 4WRAE:
  • integrated electronics (OBE) with voltage input or current input (A1 resp. F1)
    - 4WRA:
  • digital or analogue amplifier in Eurocard format (separate order)
  • analogue module amplifier
