4WRE(E) Size 6 & 10 Series 2x
4/2 and 4/3 direct operated proportional directional valves with electrical position feedback and without/with integrated electronics (OBE) 4WRE(E)
- Size: 6 and 10
- Component series: 2X
- Maximum operating pressure: 315 bar
- Maximum flow: 80 l/min, 180 l/min
Products
Downloads
Description
Part Number | Material Number | Spool | Size | Rated flow | Price | Add to Parts List |
---|---|---|---|---|---|---|
4WREE 10 E50-2X/G24K31/A1V | R900927231 | E | 10 / Cetop 5 | 50 l/min NG10 | £2,920.84 £3,505.01 Inc. VAT |
|
4WREE 6 E16-2X/G24K31/A1V | R900920567 | E | 6 / Cetop 3 | 16 l/min NG6 | £3,288.61 £3,946.33 Inc. VAT |
|
4WREE 10 E75-2X/G24K31/A1V | R900927230 | E | 10 / Cetop 5 | 75 l/min NG10 | £2,920.84 £3,505.01 Inc. VAT |
|
4WREE 6 E16-2X/G24K31/F1V | R900941623 | E | 6 / Cetop 3 | 16 l/min NG6 | £3,288.61 £3,946.33 Inc. VAT |
|
4WREE 10 E75-2X/G24K31/F1V | R900927356 | E | 10 / Cetop 5 | 75 l/min NG10 | £2,920.86 £3,505.03 Inc. VAT |
|
4WREE 6 E32-2X/G24K31/A1V | R900907114 | E | 6 / Cetop 3 | 32 l/min NG6 | £3,288.61 £3,946.33 Inc. VAT |
|
4WREE 6 E32-2X/G24K31/F1V | R900925733 | E | 6 / Cetop 3 | 32 l/min NG6 | £3,288.61 £3,946.33 Inc. VAT |
|
4WREE 6 E08-2X/G24K31/A1V | R900912156 | E | 6 / Cetop 3 | 8 l/min NG6 | £3,288.61 £3,946.33 Inc. VAT |
|
4WREE 6 E08-2X/G24K31/F1V | R900928726 | E | 6 / Cetop 3 | 8 l/min NG6 | £3,288.61 £3,946.33 Inc. VAT |
|
4WREE 10 E1-50-2X/G24K31/A1V | R900933076 | E1- | 10 / Cetop 5 | 50 l/min NG10 | £3,088.37 £3,706.04 Inc. VAT |
|
4WREE 10 E1-75-2X/G24K31/A1V | R900927232 | E1- | 10 / Cetop 5 | 75 l/min NG10 | £3,088.37 £3,706.04 Inc. VAT |
|
4WREE 6 E1-16-2X/G24K31/A1V | R900915686 | E1- | 6 / Cetop 3 | 16 l/min NG6 | £3,469.81 £4,163.77 Inc. VAT |
|
4WREE 6 E1-32-2X/G24K31/A1V | R900928553 | E1- | 6 / Cetop 3 | 32 l/min NG6 | £3,469.81 £4,163.77 Inc. VAT |
|
4WREE 6 W32-2X/G24K31/F1V | R900246793 | W | 6 / Cetop 3 | 32 l/min NG6 | £3,288.61 £3,946.33 Inc. VAT |
|
4WREE 6 W08-2X/G24K31/A1V | R900923000 | W | 6 / Cetop 3 | 8 l/min NG6 | £3,288.61 £3,946.33 Inc. VAT |
|
4WREE 10 W50-2X/G24K31/A1V | R900931371 | W | 10 / Cetop 5 | 50 l/min NG10 | £2,920.84 £3,505.01 Inc. VAT |
|
4WREE 10 W75-2X/G24K31/A1V | R900927233 | W | 10 / Cetop 5 | 75 l/min NG10 | £2,920.84 £3,505.01 Inc. VAT |
|
4WREE 6 W16-2X/G24K31/A1V | R900925657 | W | 6 / Cetop 3 | 16 l/min NG6 | £3,288.61 £3,946.33 Inc. VAT |
|
4WREE 10 W75-2X/G24K31/F1V | R900948360 | W | 10 / Cetop 5 | 75 l/min NG10 | £2,920.86 £3,505.03 Inc. VAT |
|
4WREE 6 W32-2X/G24K31/A1V | R900911004 | W | 6 / Cetop 3 | 32 l/min NG6 | £3,288.61 £3,946.33 Inc. VAT |
|
4WREE 6 W1-32-2X/G24K31/A1V | R900913359 | W1- | 6 / Cetop 3 | 32 l/min NG6 | £3,469.81 £4,163.77 Inc. VAT |
|
4WREE 10 W1-50-2X/G24K31/A1V | R900933077 | W1- | 10 / Cetop 5 | 50 l/min NG10 | £3,088.37 £3,706.04 Inc. VAT |
|
4WREE 10 W1-50-2X/G24K31/F1V | R900965185 | W1- | 10 / Cetop 5 | 50 l/min NG10 | £3,088.37 £3,706.04 Inc. VAT |
|
4WREE 10 W1-75-2X/G24K31/A1V | R900927234 | W1- | 10 / Cetop 5 | 75 l/min NG10 | £3,088.37 £3,706.04 Inc. VAT |
|
4WREE 10 W1-75-2X/G24K31/F1V | R900976119 | W1- | 10 / Cetop 5 | 75 l/min NG10 | £3,088.37 £3,706.04 Inc. VAT |
|
4WREE 6 W1-16-2X/G24K31/A1V | R900939627 | W1- | 6 / Cetop 3 | 16 l/min NG6 | £3,469.81 £4,163.77 Inc. VAT |
|
4WREE 10 V50-2X/G24K31/A1V | R900927235 | V | 10 / Cetop 5 | 50 l/min NG10 | £3,310.36 £3,972.43 Inc. VAT |
|
4WREE 10 V75-2X/G24K31/A1V | R900924607 | V | 10 / Cetop 5 | 75 l/min NG10 | £3,310.36 £3,972.43 Inc. VAT |
|
4WREE 6 V08-2X/G24K31/A1V | R900909367 | V | 6 / Cetop 3 | 8 l/min NG6 | £3,654.40 £4,385.28 Inc. VAT |
|
4WREE 6 V16-2X/G24K31/A1V | R900907440 | V | 6 / Cetop 3 | 16 l/min NG6 | £3,654.40 £4,385.28 Inc. VAT |
|
4WREE 6 V32-2X/G24K31/A1V | R900911681 | V | 6 / Cetop 3 | 32 l/min NG6 | £3,654.40 £4,385.28 Inc. VAT |
|

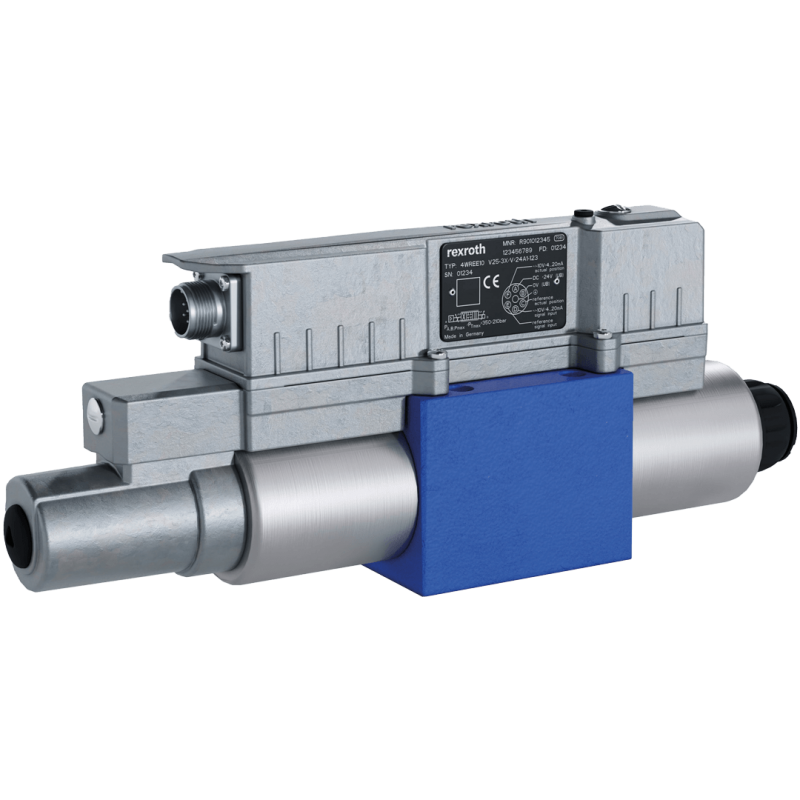

Bosch Rexroth 4/2 and 4/3 Proportional Directional Valves, Direct Operated, (OBE) 4WRE(E)
- Size: 6 and 10
- Component series: 2X
- Maximum operating pressure: 315 bar
- Maximum flow: 80 l/min, 180 l/min
Features:
- Direct operated proportional directional valve with electrical position feedback and integrated electronics (OBE) with type 4WREE
- Control of flow direction and size
- Operation by means of proportional solenoids with central thread and detachable coil
- For subplate mounting: Porting pattern according to ISO 4401
- Spring-centered control spool
- Control electronics
- Type 4WREE:
integrated electronics (OBE) with voltage or current input (A1 and/or F1) - Type 4WRE (4/3 version), separate order:
- digital and analog amplifier in Euro-card format
- analog amplifier in modular design - Type 4WRE...A (4/2 version), separate order:
- analog amplifier in modular design
