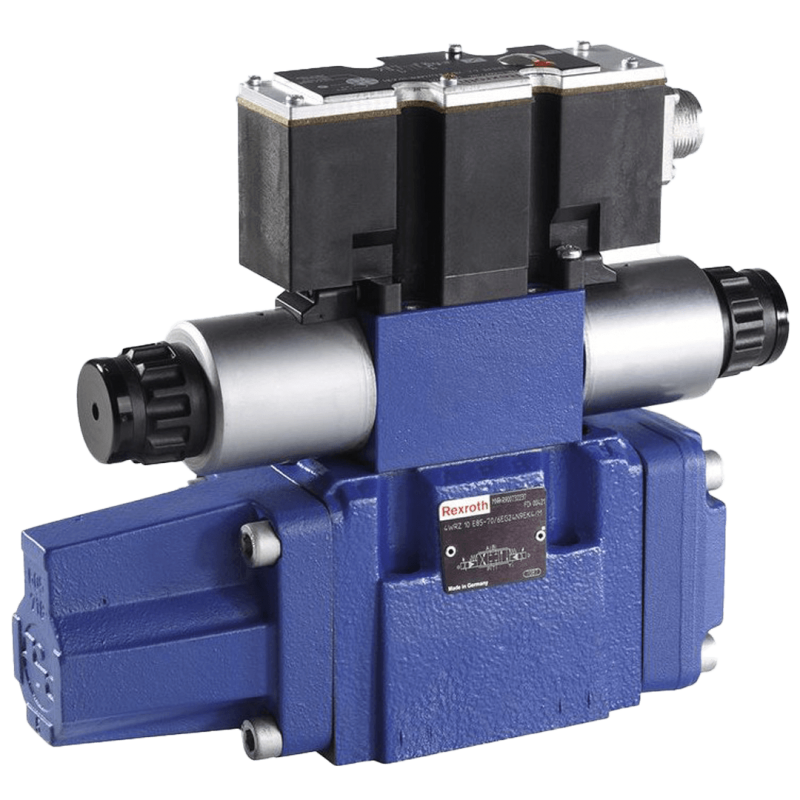

Bosch Rexroth 4/2 and 4/3 Proportional Directional Valves, Direct Operated,(OBE), 4WRZE

4WRZE Size 10 to 52 Series 7x

4/2 and 4/3 proportional directional valves, direct operated, without electrical position feedback, with integrated electronics (OBE) 4WRZE

  • Sizes 10 to 52
  • Component series 7X
  • Maximum operating pressure 350 bar
  • Maximum flow 2800 l/min

Products
Downloads
Description
Part Number Material Number Spool Size Rated flow Price Add to Parts List
4WRZE 16 W6-150-7X/6EG24K31/A1M 4WRZE16W6-150-7X/6EG24K31/A1M R900954665 W6- 16 / Cetop 7 150 l/min NG16 £4,011.05
£4,813.26 Inc. VAT
4WRZE 16 W6-150-7X/6EG24N9ETK31/A1D3M 4WRZE16W6-150-7X/6EG24N9ETK31/A1D3M R900977490 W6- 16 / Cetop 7 150 l/min NG16 £4,377.95
£5,253.54 Inc. VAT
4WRZE 10 W6-85-7X/6EG24N9ETK31/A1D3M 4WRZE10W6-85-7X/6EG24N9ETK31/A1D3M R900765029 W6- 10 / Cetop 5 90 l/min NG10 £3,961.81
£4,754.17 Inc. VAT

Bosch Rexroth 4/2 and 4/3 Proportional Directional Valves, Direct Operated,(OBE), 4WRZE

  • Sizes 10 to 52
  • Component series 7X
  • Maximum operating pressure 350 bar
  • Maximum flow 2800 l/min

Features:

  • Pilot-operated, 2-stage proportional directional valves with integrated electronics (OBE)
  • Control of the direction and magnitude of a flow
  • Operation by means of proportional solenoids with central thread and detachable coil
  • For subplate mounting: Porting pattern according to ISO 4401
  • Optional auxiliary operating device
  • Spring-centered control spool
