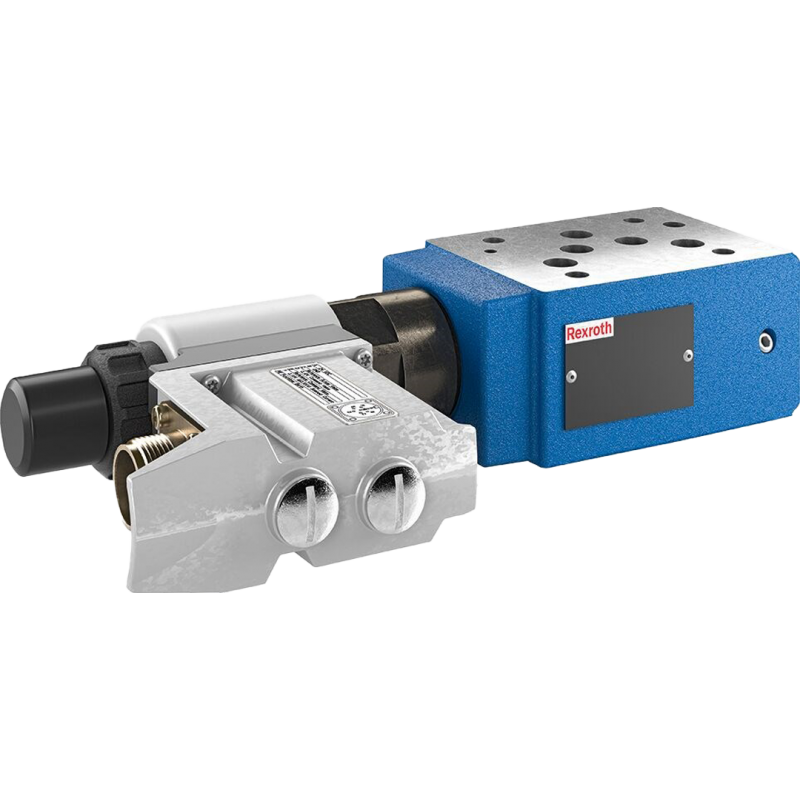

Z3DRE, Z3DREE Size 10 Series 1x
Pilot operated Proportional pressure reducing valves without/with integrated electronics (OBE) Z3DRE, Z3DREE
- Size 10
- Component series 1X
- Maximum operating pressure 350 bar
- Maximum flow 120 l/min
Products

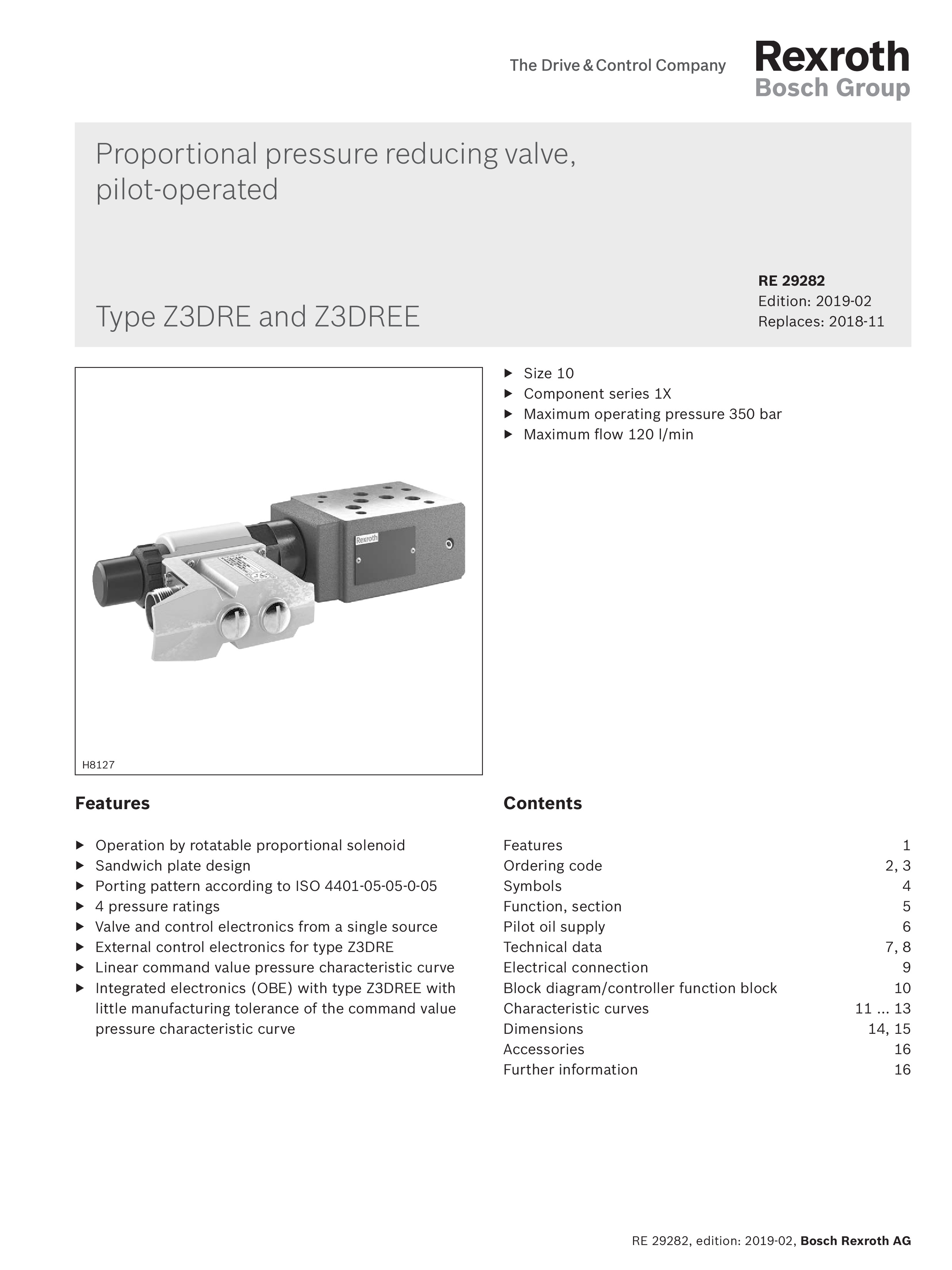

Downloads
Description
| Part Number | Material Number | Max. Pressure rating | Price | Add to Parts List |
|---|---|---|---|---|
| ZDREE 10 VP2-2X/200XLMG24K31A1M | R901198302 | 200 bar | £1,964.09 £2,356.91 Inc. VAT |
|
Bosch Rexroth Proportional Pressure Reducing Valves, Pilot-operated Z3DRE, Z3DREE
- Size 10
- Component series 1X
- Maximum operating pressure 350 bar
- Maximum flow 120 l/min
Features:
- Operation by rotatable proportional solenoid
- Sandwich plate design
- Porting pattern according to ISO 4401-05-05-0-05
- 4 pressure ratings
- Valve and control electronics from a single source
- External control electronics for type Z3DRE
- Linear command value pressure characteristic curve
- Integrated electronics (OBE) with type Z3DREE with little manufacturing tolerance of the command value pressure characteristic curve
