DRE(E), ZDRE(E) Size 6 Series 1x
Pilot operated proportional pressure reducing valves with sandwich plate design DRE(E), ZDRE(E)
- Size: 6
- Component series: 1X
- Max. operating pressure:210 bar (ZDRE) 315 bar (DRE)
- Flow, max. 30 l/min
Products
Downloads
Description
| Part Number | Material Number | Max. Pressure rating | Price | Add to Parts List |
|---|---|---|---|---|
| ZDRE 6 VP2-1X/210MG24K4M | R900915963 | 210 bar | £1,712.53 £2,055.04 Inc. VAT |
|

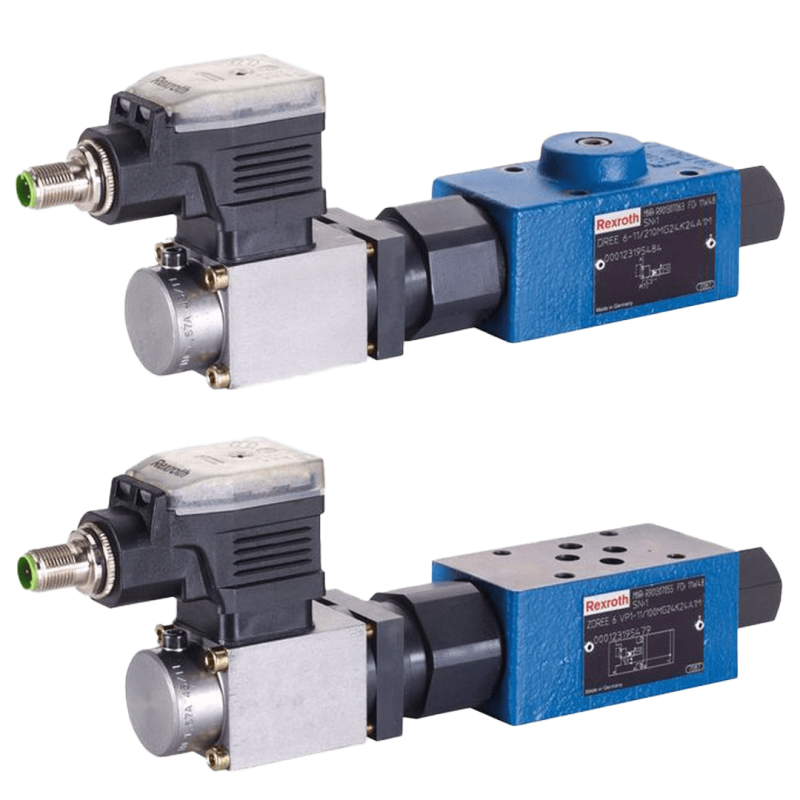

Bosch Rexroth Proportional Pressure Reducing Valves, Pilot-operated DRE(E), ZDRE(E)
- Size: 6
- Component series: 1X
- Max. operating pressure:210 bar (ZDRE) 315 bar (DRE)
- Flow, max. 30 l/min
Features:
- For pressure reduction in ports A and P①with pressure limitation
- Operation by means of proportional solenoids
- For subplate mounting or sandwich plate design
- Porting pattern according to ISO 4401-03-02-0-05
- Low manufacturing tolerance of the command value pressure characteristic curve due to electrical adjustment for the operation with external control electronics
- Minimum set pressure in ports A or P
- With integrated electronics (OBE), optional
- CE conformity according to EMC Directive 2014/30/EU
| Quantity | Unit discount | You Save |
|---|
