DREB6X Size 6 Series 1x

Pilot operated proportional pressure reducing valves with inductive position transducer in 3-way version for subplate mounting DREB6X

  • Size 6
  • Component series 1X
  • Max. operating pressure P 315 bar, T 250 bar
  • Flow, max. 40 l/min

Description

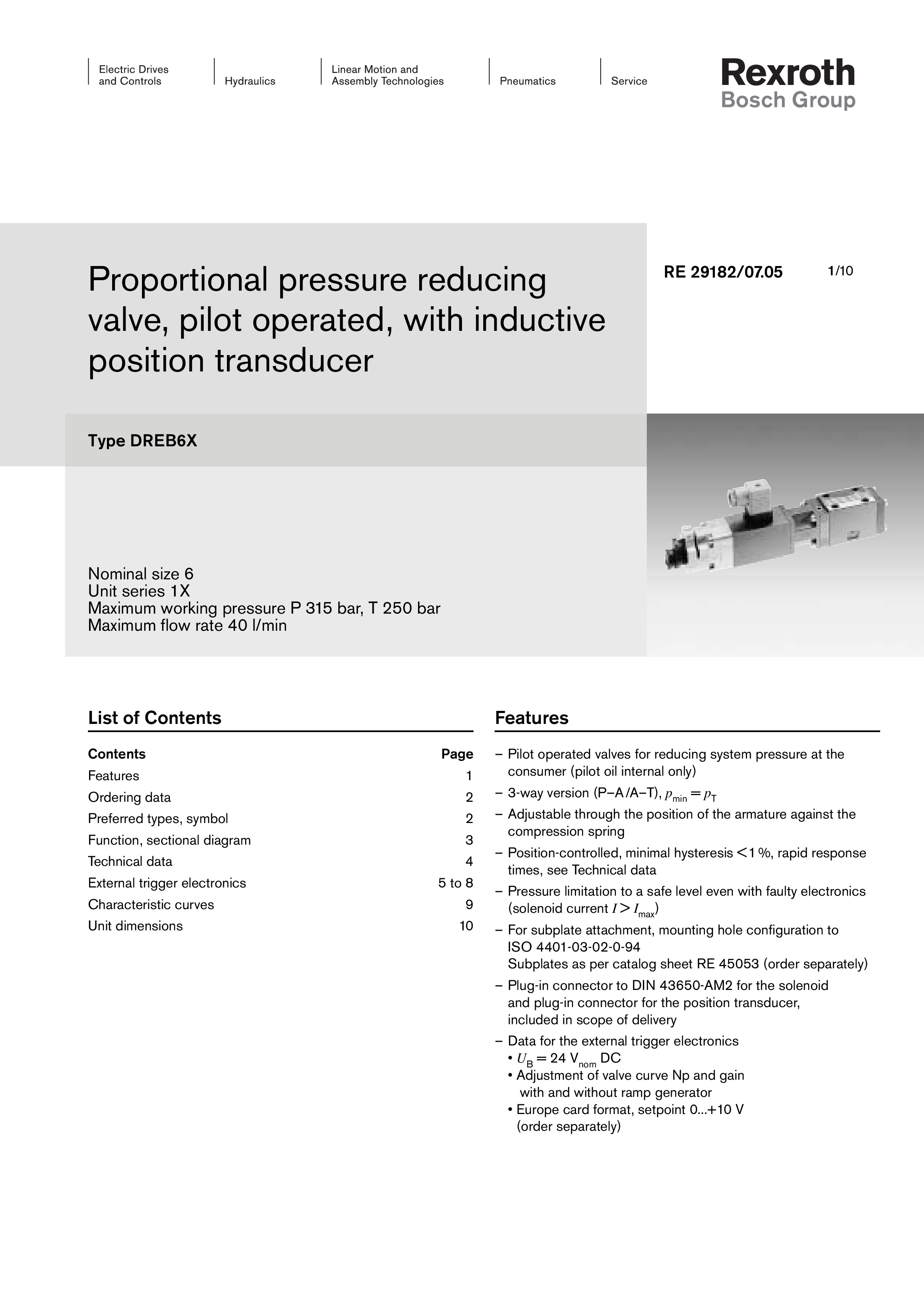

Downloads

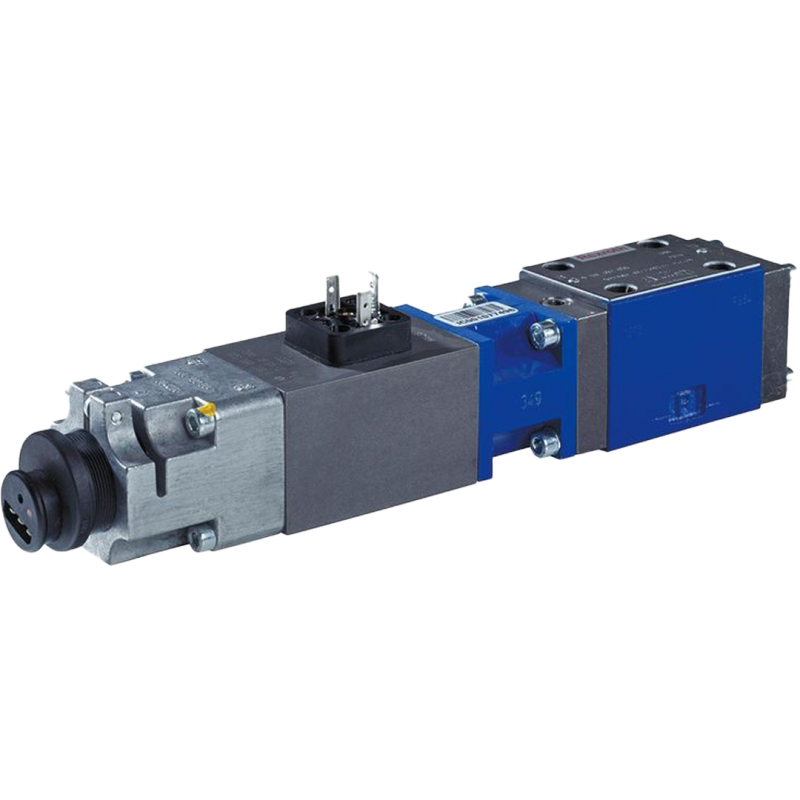

Bosch Rexroth Proportional Pressure Reducing Valve, Pilot-operated, DREB6X

  • Size 6
  • Component series 1X
  • Max. operating pressure P 315 bar, T 250 bar
  • Flow, max. 40 l/min

Features:

  • Pilot-operated valves for system pressure reduction at the actuator (internal pilot oil supply only)
  • 3-way version
  • Adjustable via the position of the solenoid armature in relation to the compression spring
  • Position-controlled, minimum hysteresis < 1%, short actuating times
  • Maximum pressure limitation, even with defective electronics
  • For subplate mounting: Porting pattern according to ISO 4401
