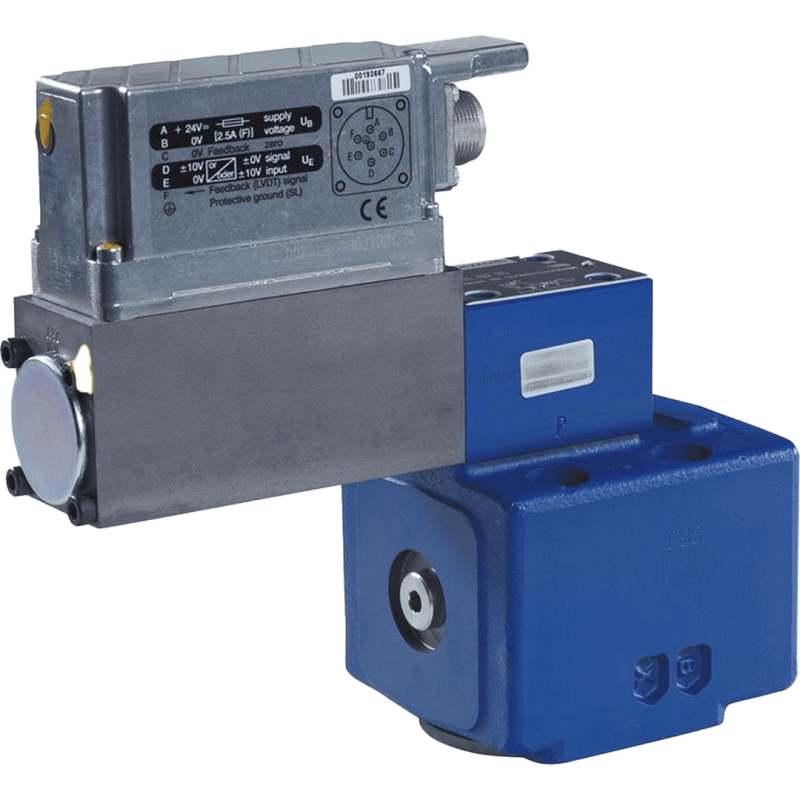

Bosch Rexroth Proportional Pressure Reducing Valve, Pilot Operated, (OBE) DREBE10Z

DREBE10Z Size 10 Series 1x

Pilot operated proportional pressure reducing valves with integrated electronics (OBE) and position feedback for subplate mounting DREBE10Z

  • Size 10
  • Component series 1X
  • Max. operating pressure 315 bar
  • Flow, max. 120 l/min

Description

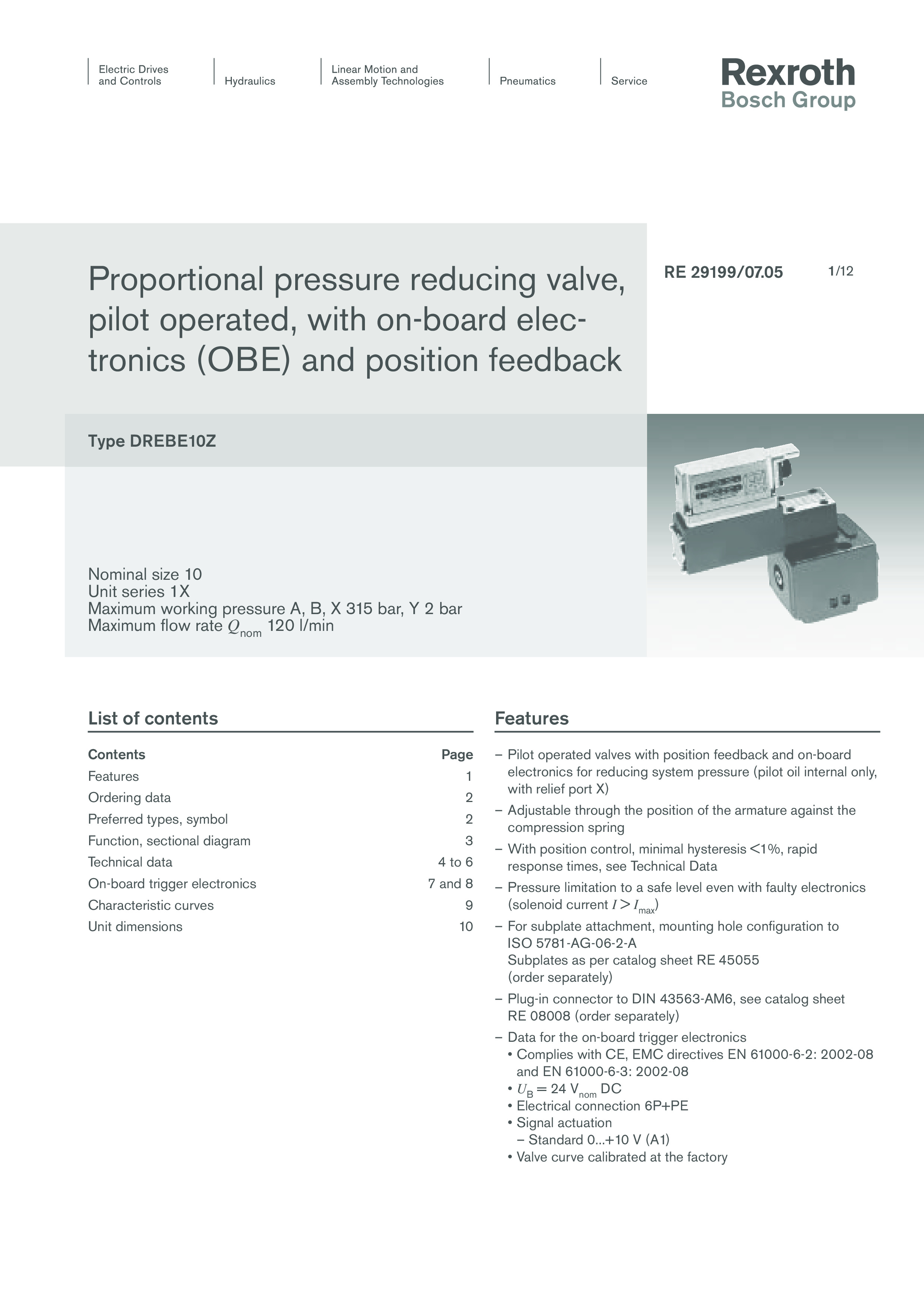

Downloads

Bosch Rexroth Proportional Pressure Reducing Valve, Pilot Operated, (OBE) DREBE10Z

  • Size 10
  • Component series 1X
  • Max. operating pressure 315 bar
  • Flow, max. 120 l/min

Features:

  • Pilot-operated valves with position feedback and integrated electronics for system pressure limitation (pilot oil only internally)
  • Adjustable via the position of the solenoid armature in relation to the compression spring
  • Position-controlled, minimum hysteresis < 1%, short actuating times
  • Maximum pressure limitation, even with defective electronics
  • For subplate mounting: porting pattern according to ISO 5781-AG-06-2-A
