DBEM, DBEME Size 10 to 32 Series 7x
Pilot operated proportional pressure relief valves with max pressure limitation without/with integrated electronics for subplate mounting (OBE) DBEM, DBEME
- Size 10 to 32
- Component series 7X
- Maximum operating pressure 350 bar
- Maximum flow: 700 l/min
Products
Downloads
Description
| Part Number | Material Number | Pressure | Integrated electronics | Price | Add to Parts List |
|---|---|---|---|---|---|
| DBEM 10-7X/315YG24K4M | R901335399 | 315 bar | Without | £1,898.20 £2,277.84 Inc. VAT |
|
| DBEME 20-7X/315YG24K31A1M | R901353070 | 315 bar | With | £2,537.31 £3,044.77 Inc. VAT |
|
| DBEME 10-7X/315YG24K31A1M | R901344448 | 315 bar | With | £2,468.57 £2,962.28 Inc. VAT |
|

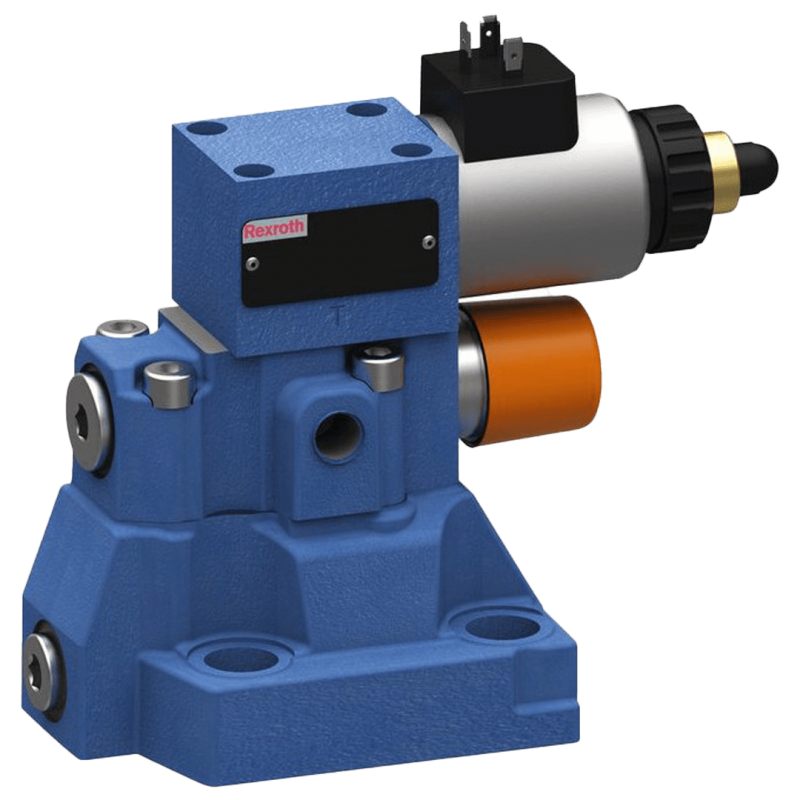

Bosch Rexroth Proportional Pressure Relief Valve, Pilot-operated DBEM, DBEME
- Size 10 to 32
- Component series 7X
- Maximum operating pressure 350 bar
- Maximum flow: 700 l/min
Features
- Pilot operated valves for limiting a system pressure
- Operation by means of proportional solenoid
- For subplate mounting and threaded connection: Porting pattern according to ISO 6264
- Maximum pressure limitation
- Valve and control electronics from a single source
- Integrated electronics (OBE) with type DBEME: Little manufacturing tolerance of the command value pressure characteristic curve
- External control electronics with type DBEM (separate order)
